System Diagram




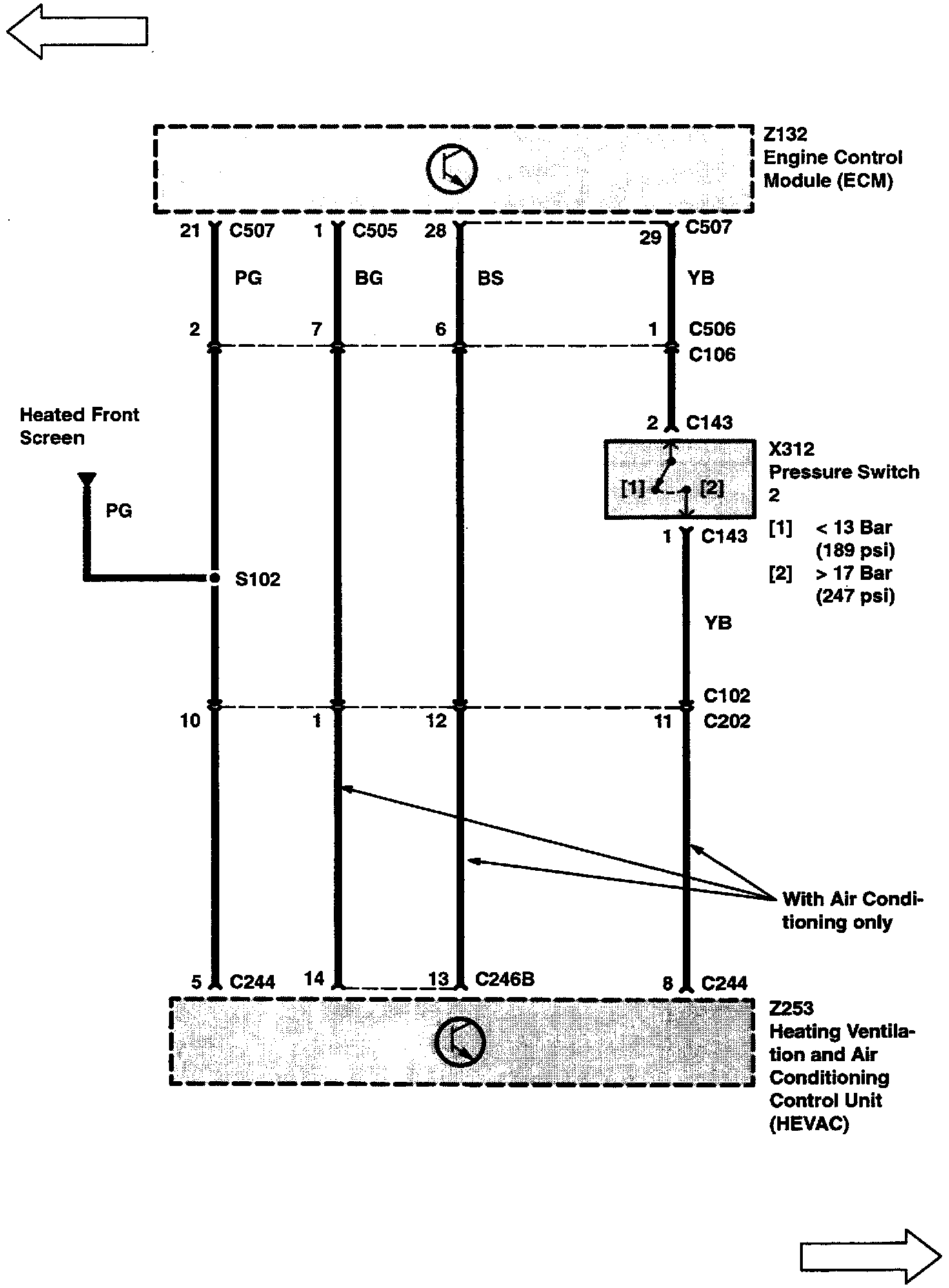

A1-4:






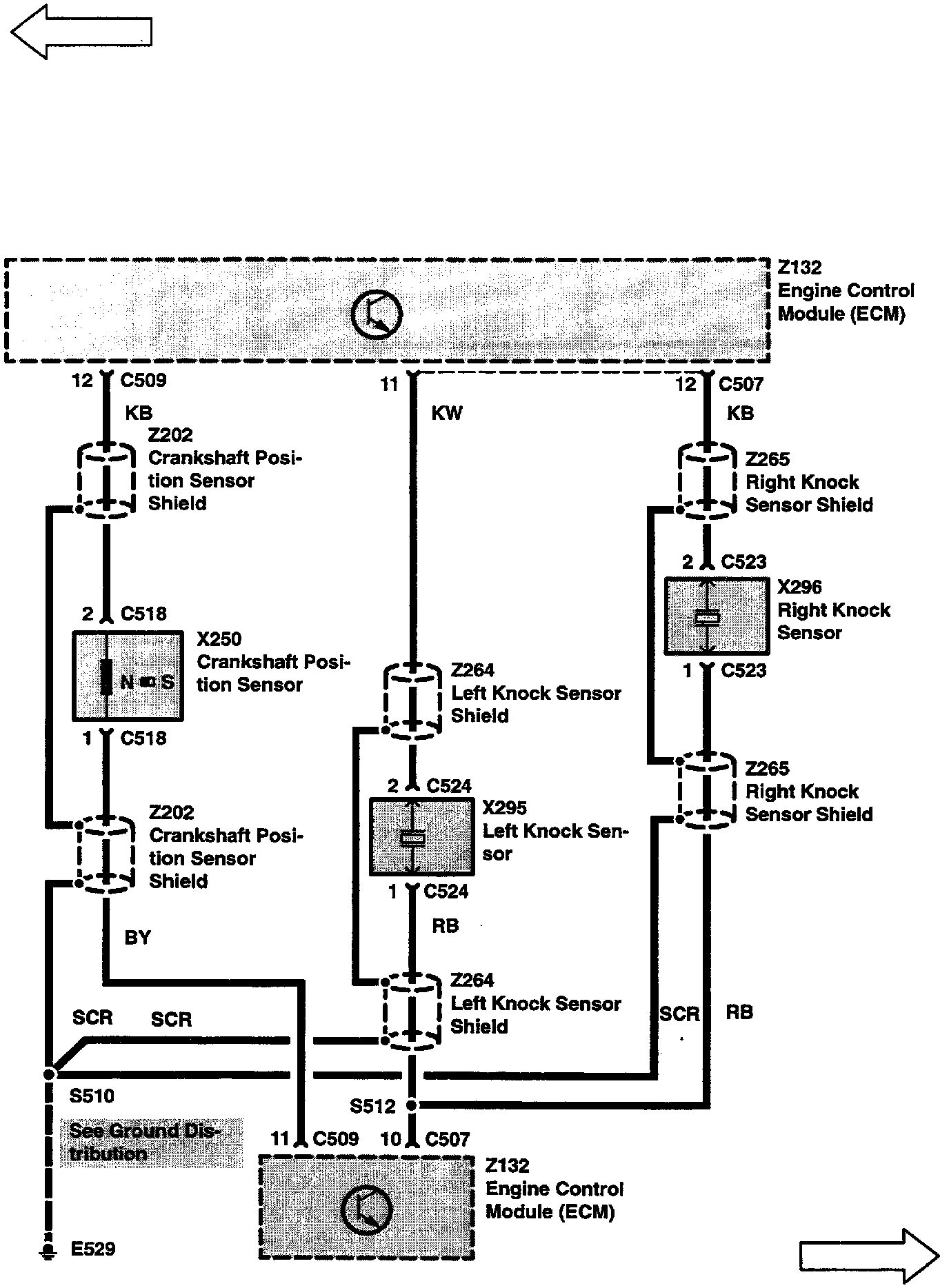

A1-5:






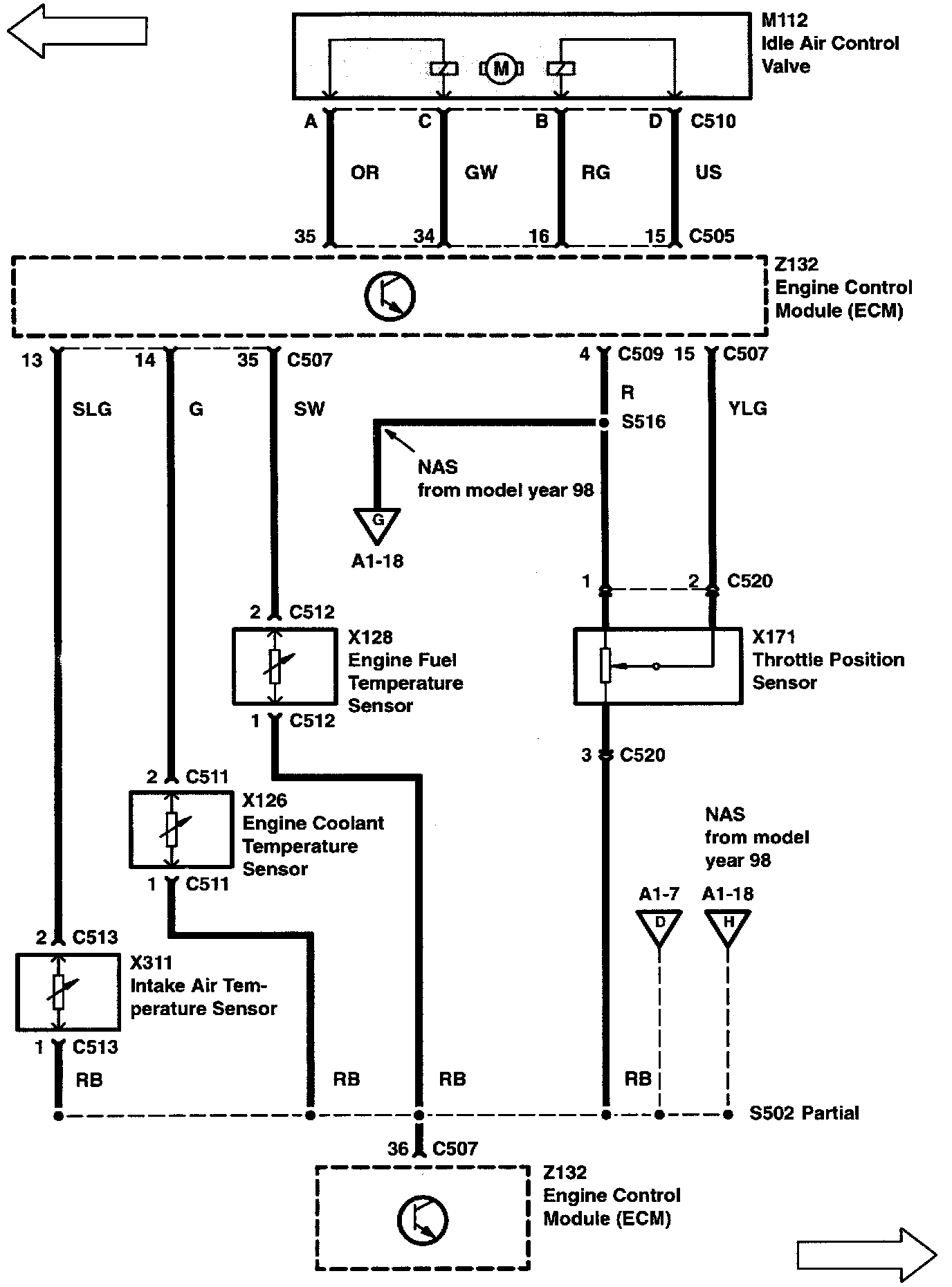

A1-6:






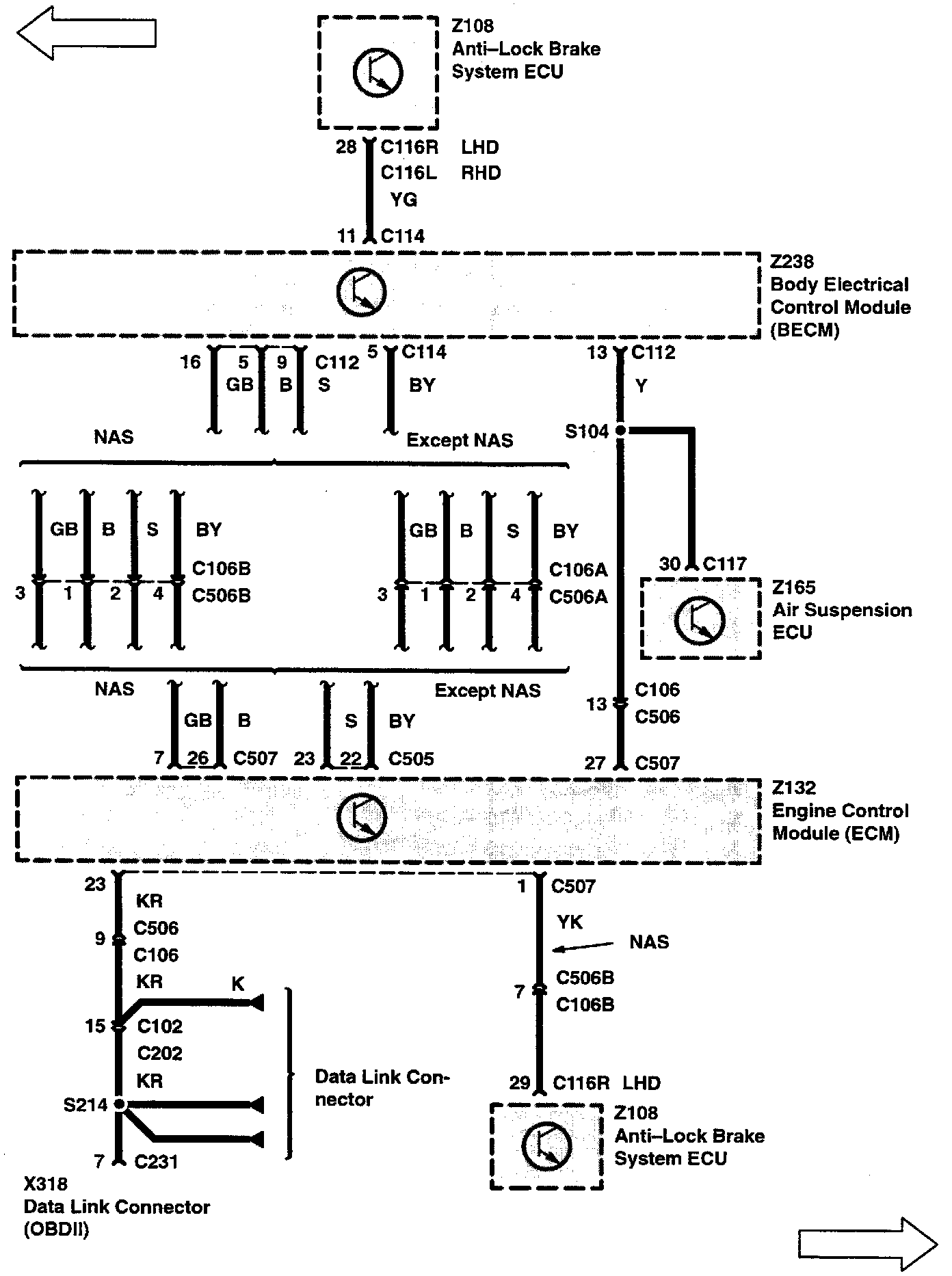

A1-7:






A1-8:






A1-9:






A1-10:






A1-11:






A1-12:






A1-13:






A1-14:






A1-15:






A1-16:

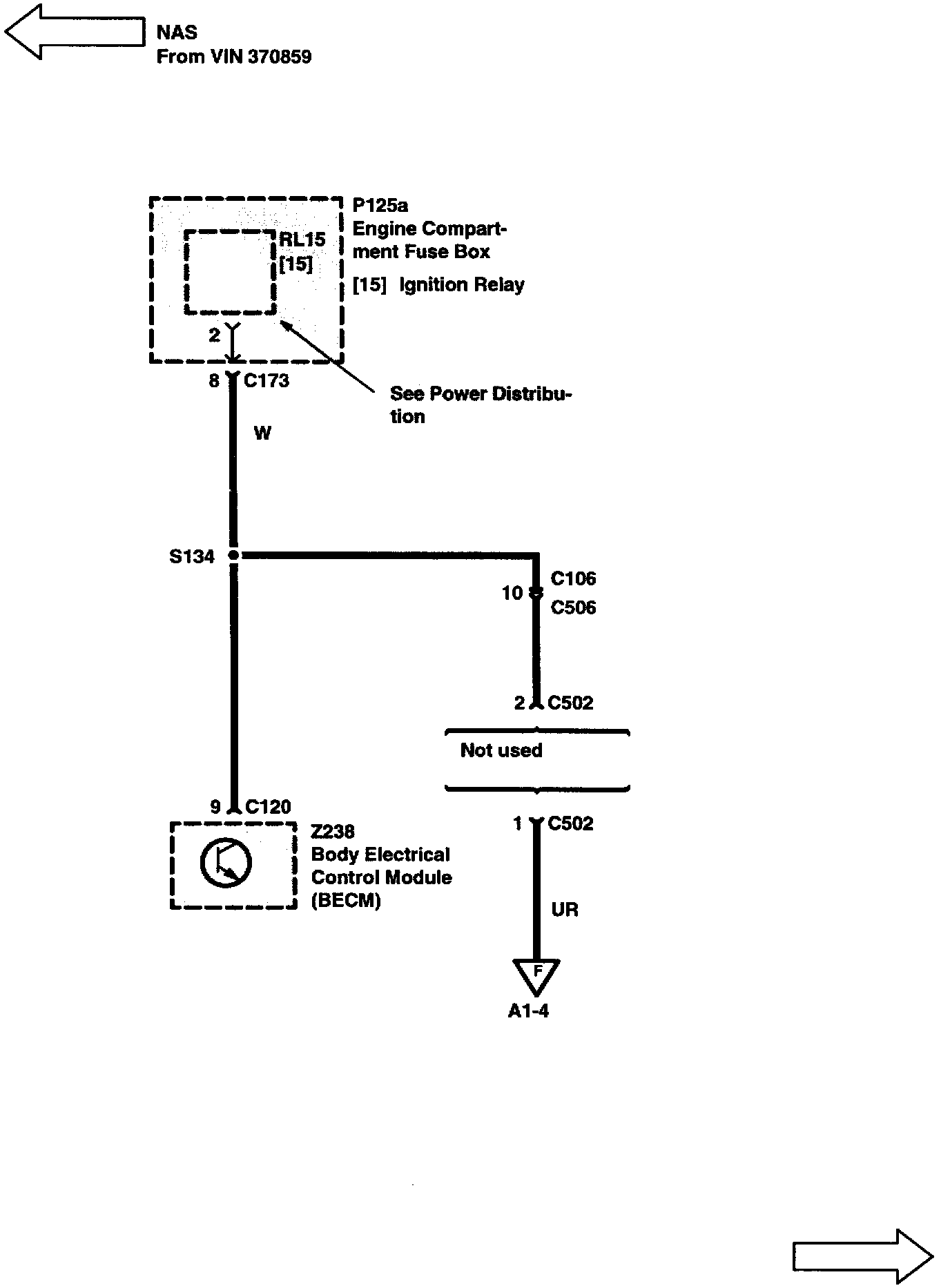

A1-17, From VIN 370859:

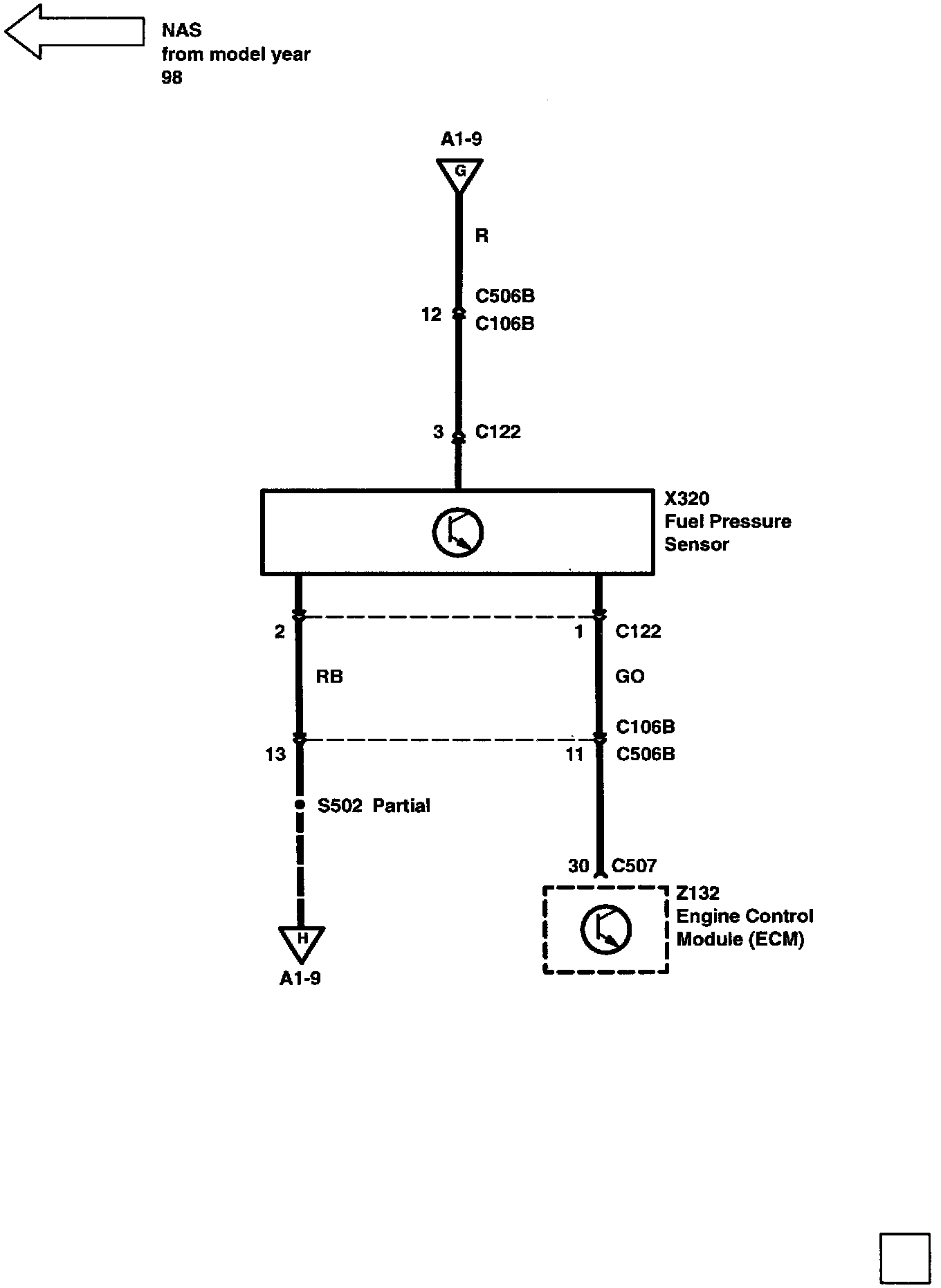

A1-18, From Model Year 98:
