Home >> Land Rover >> 1998 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Mid Line

Mid Line

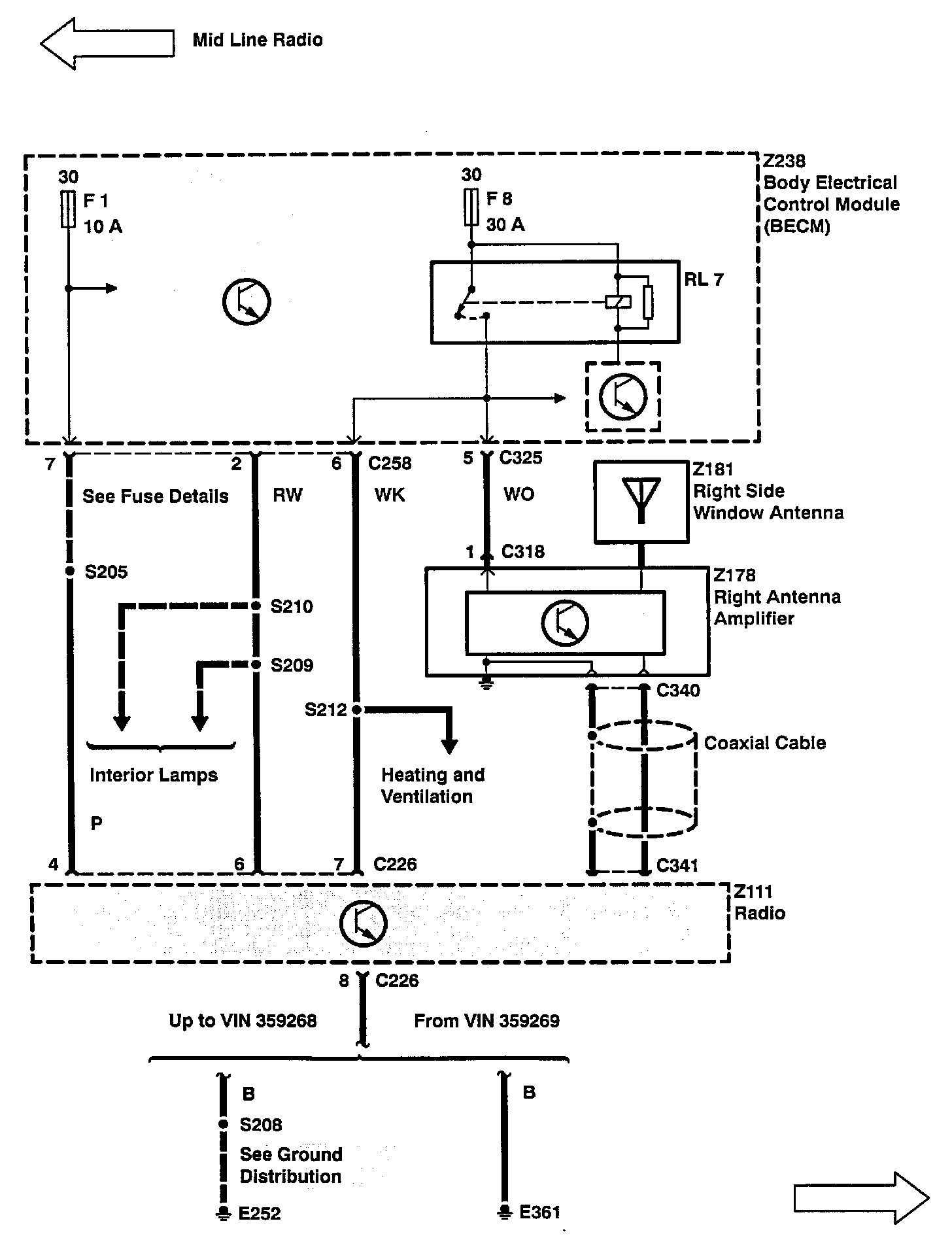

E6-5:

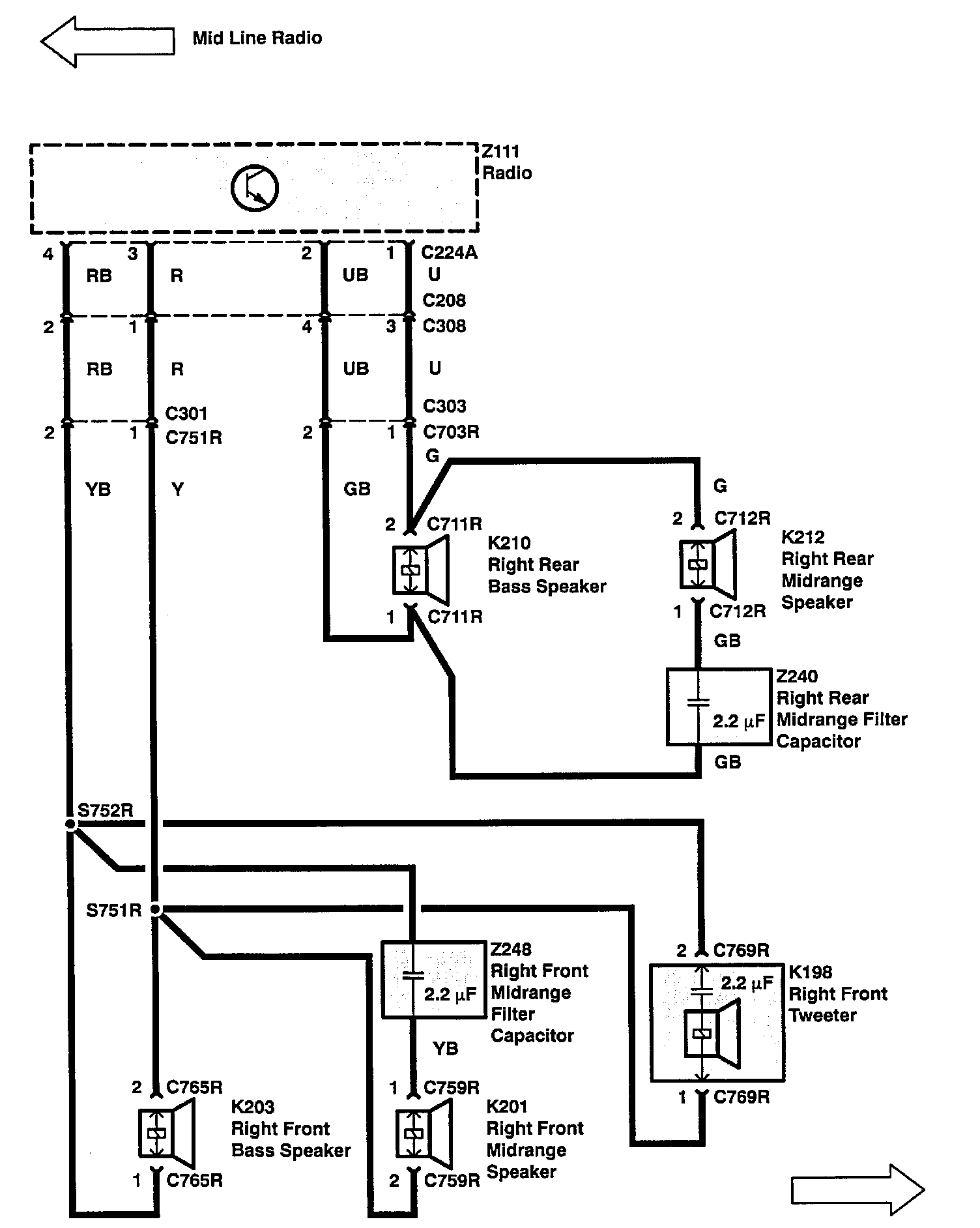

E6-6:

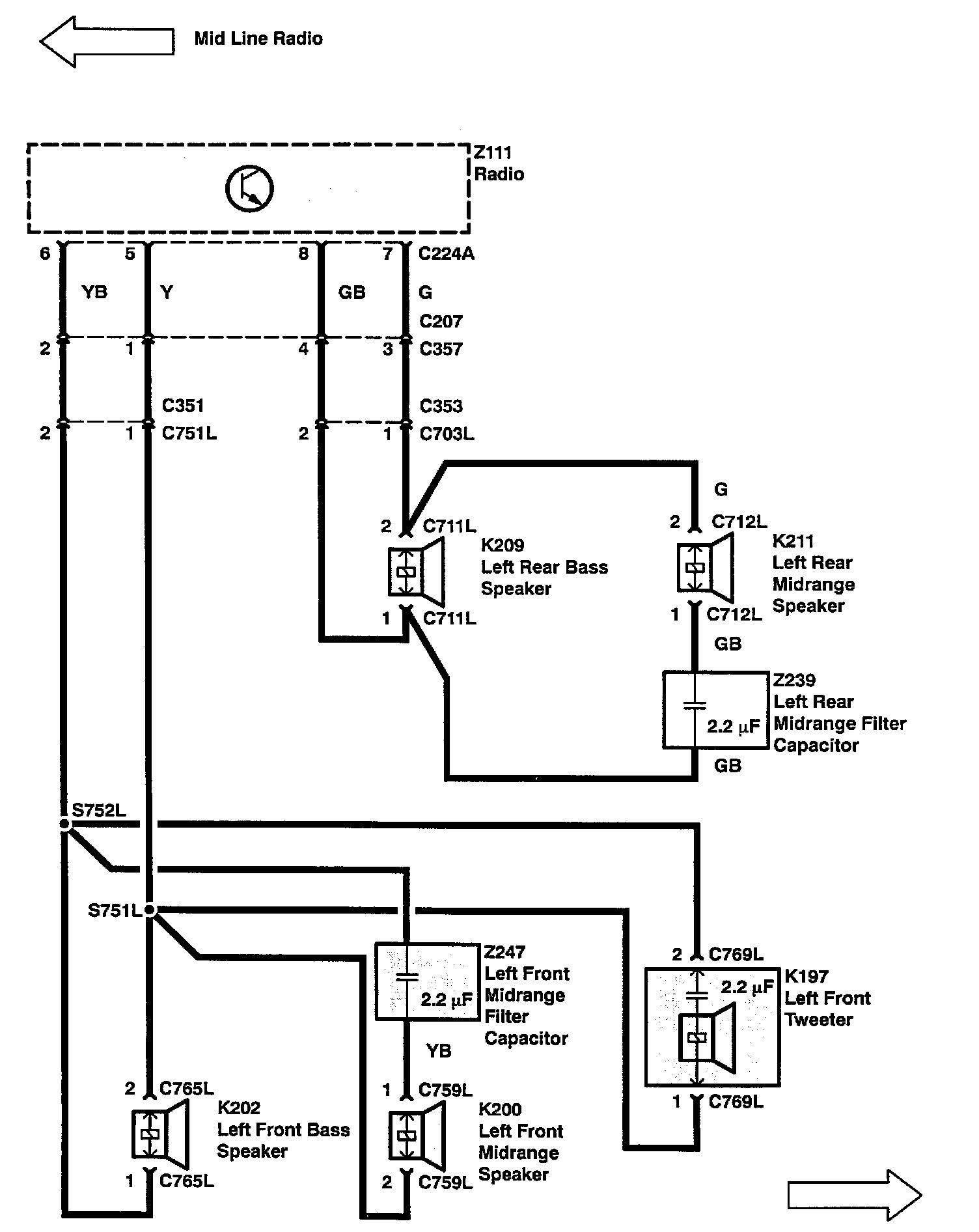

E6-7:
