Operation CHARM: Car repair manuals for everyone.
Home >> Land Rover >> 1998 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transfer Case >> Manual Transmission

Manual Transmission

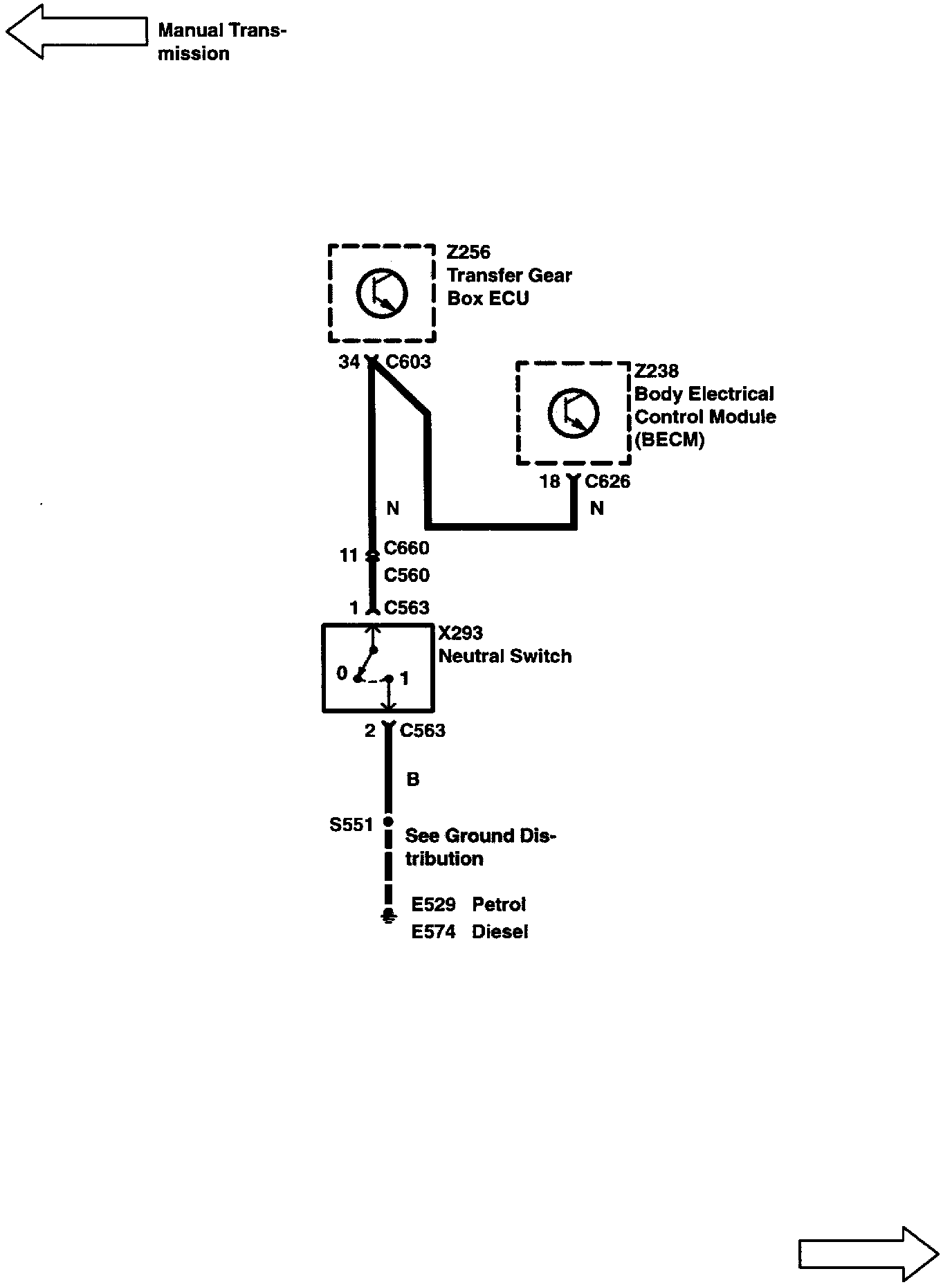

B6-3:

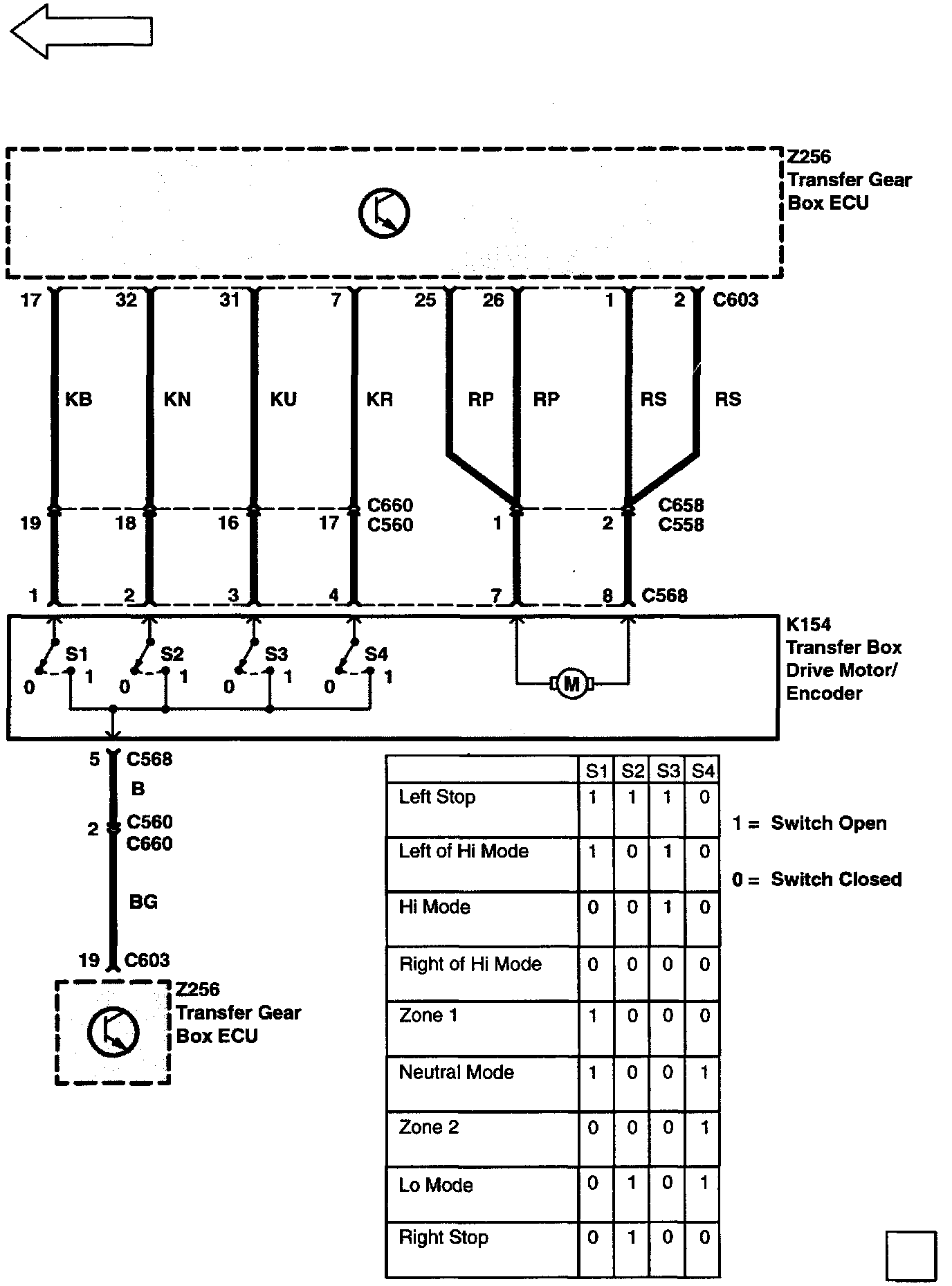

B6-4:

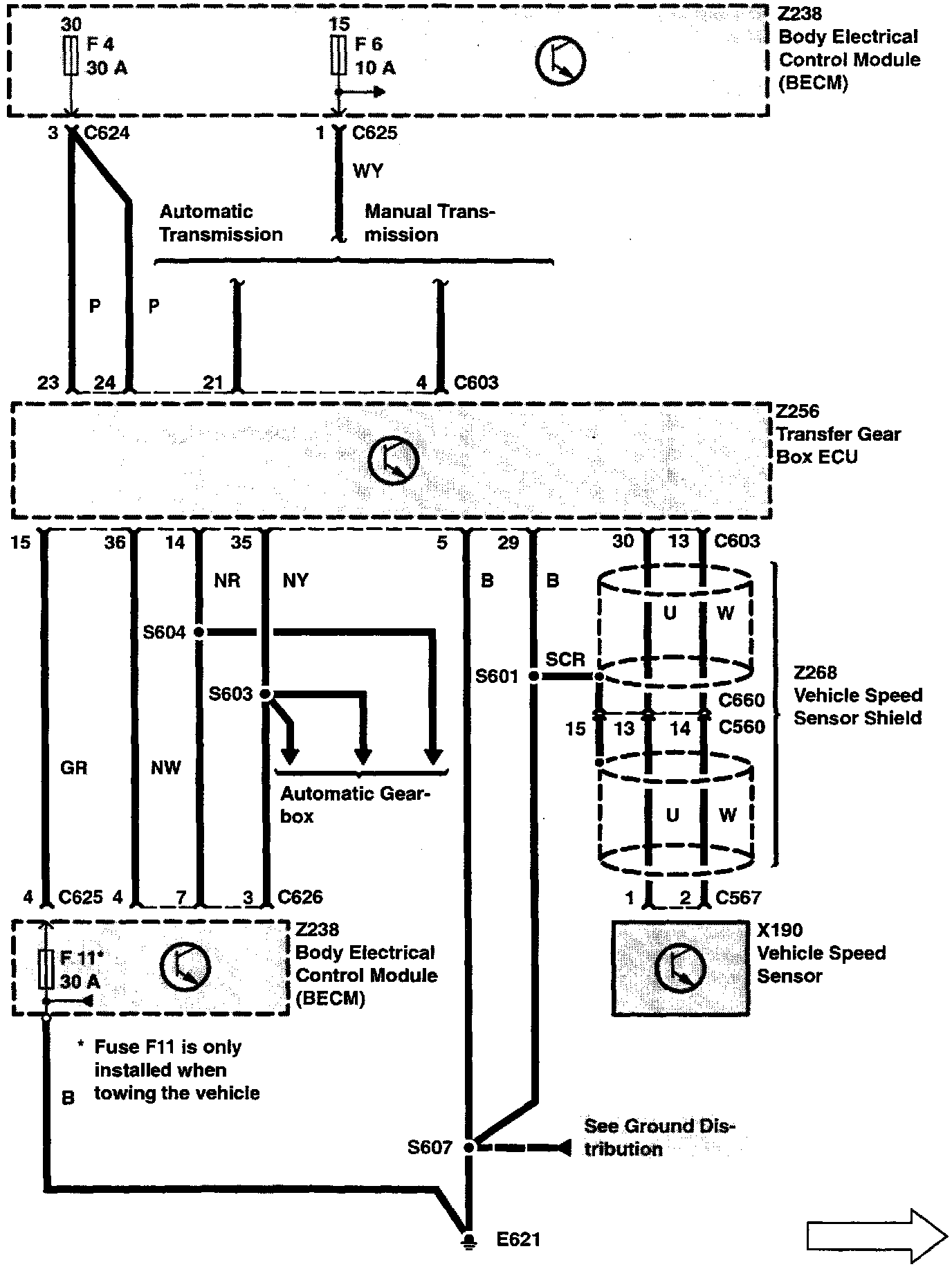

B6-7:






B6-8:
