Condenser Fan: Service and Repair

Service repair no - 82.15.01

Removal
1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Remove front grille.
4. Remove front bumper.

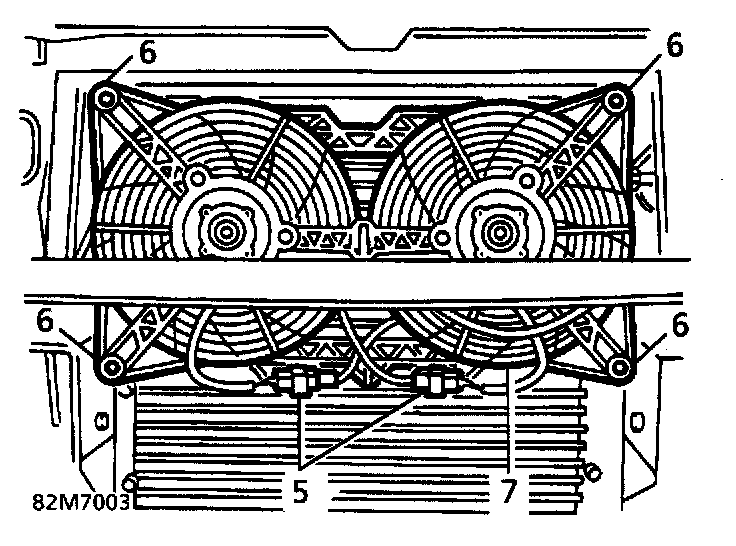

5. Disconnect 2 multiplugs from condenser cooling fans.





6. Remove 4 bolts securing condenser fan assembly.
7. Remove fan and cowl assembly.

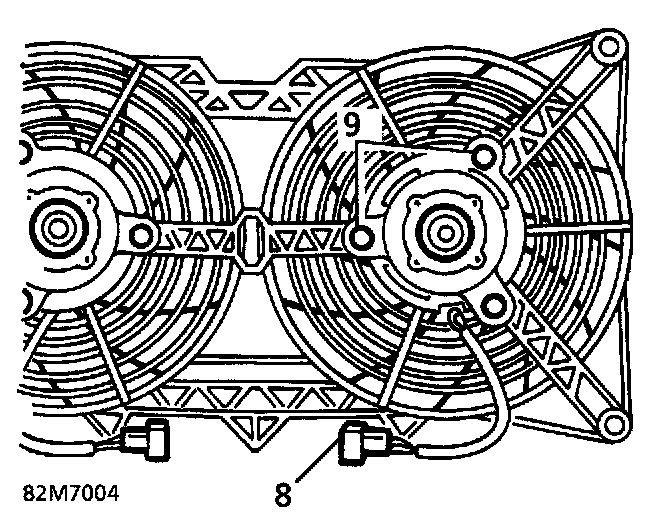

8. Release multiplug holder from fan cowl.





9. Remove 3 nuts securing motor to cowl. Remove motor.

Refit
10. Reverse removal procedure.
