Home >> Land Rover >> 1998 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

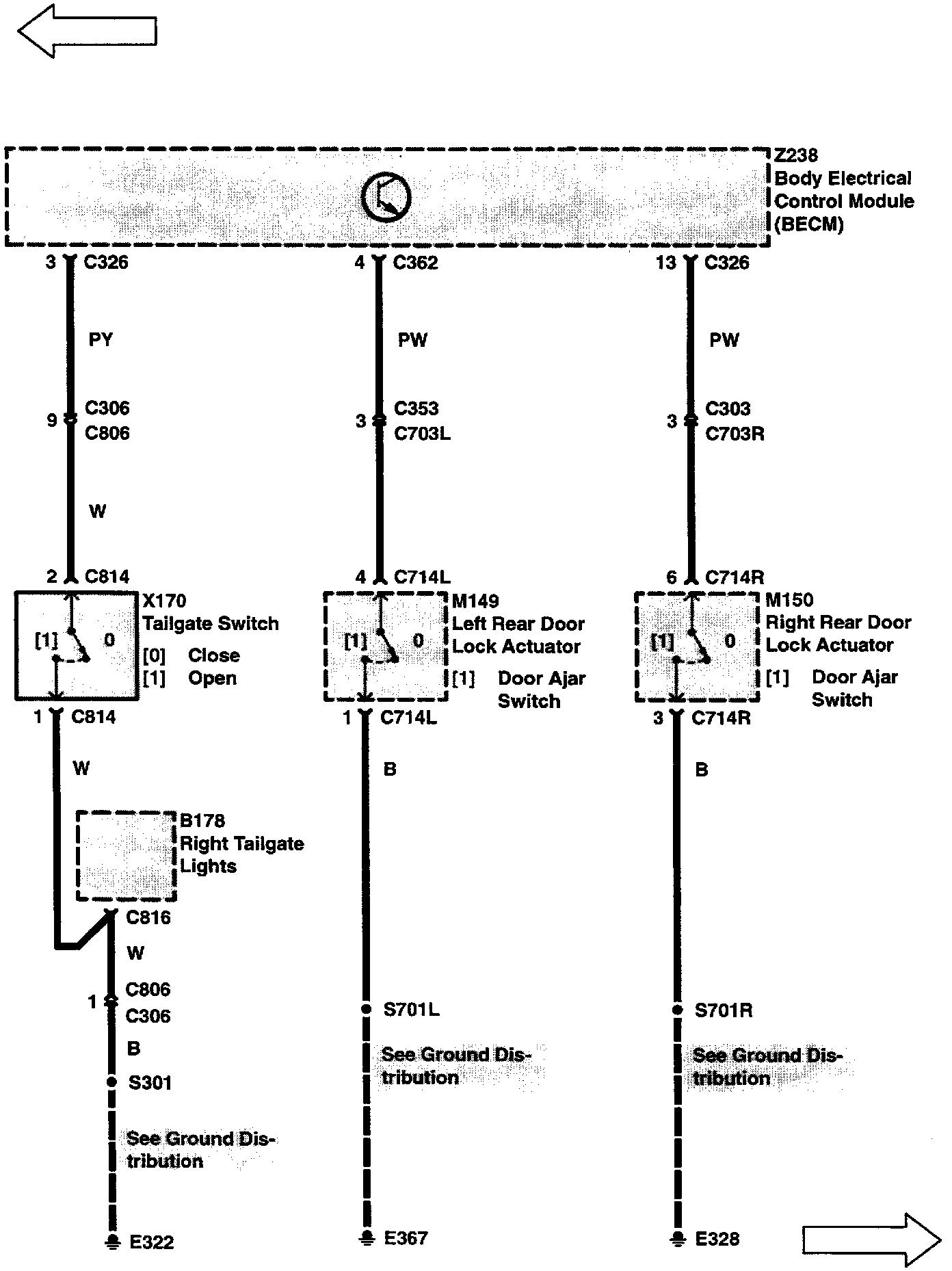

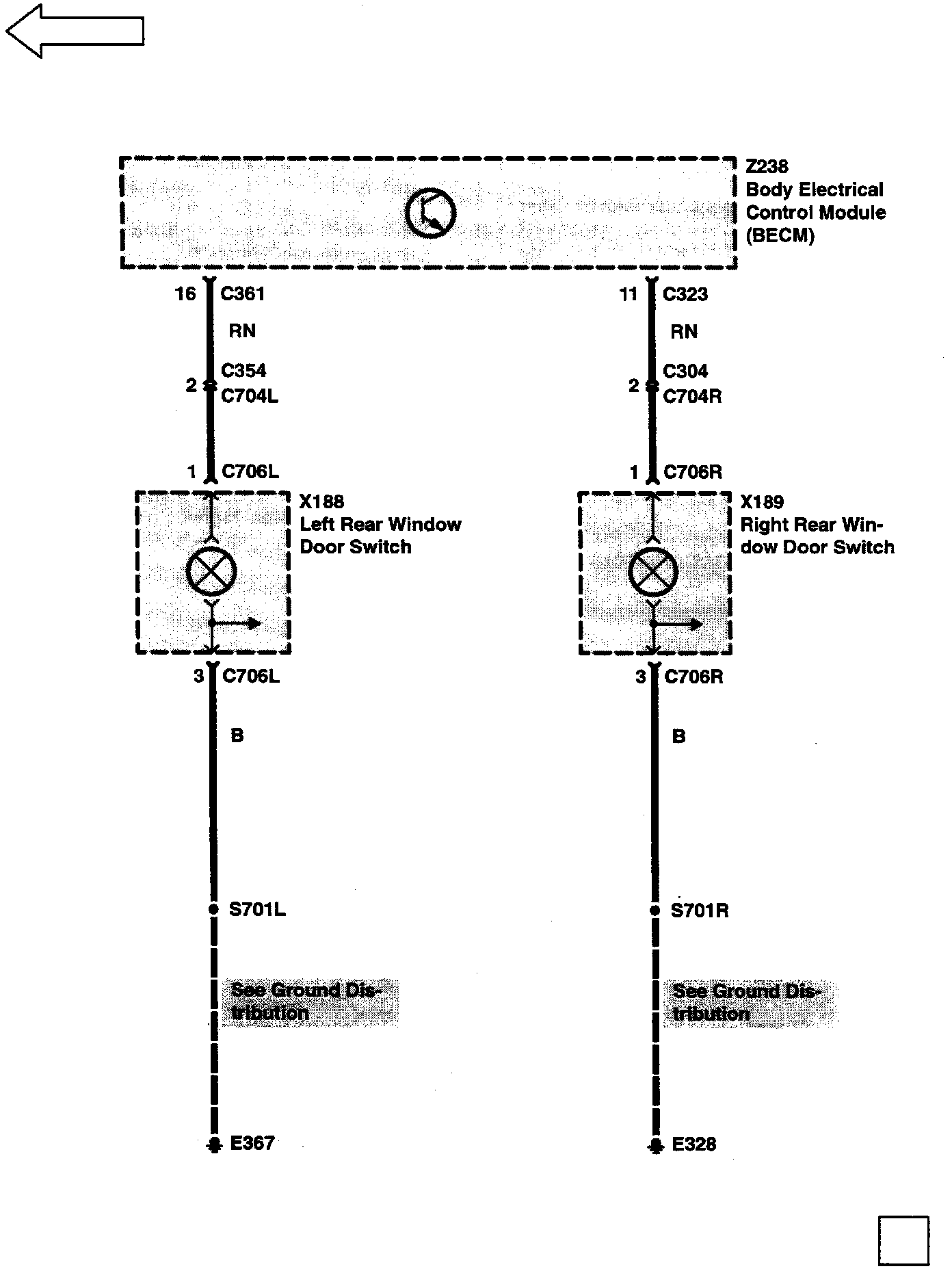

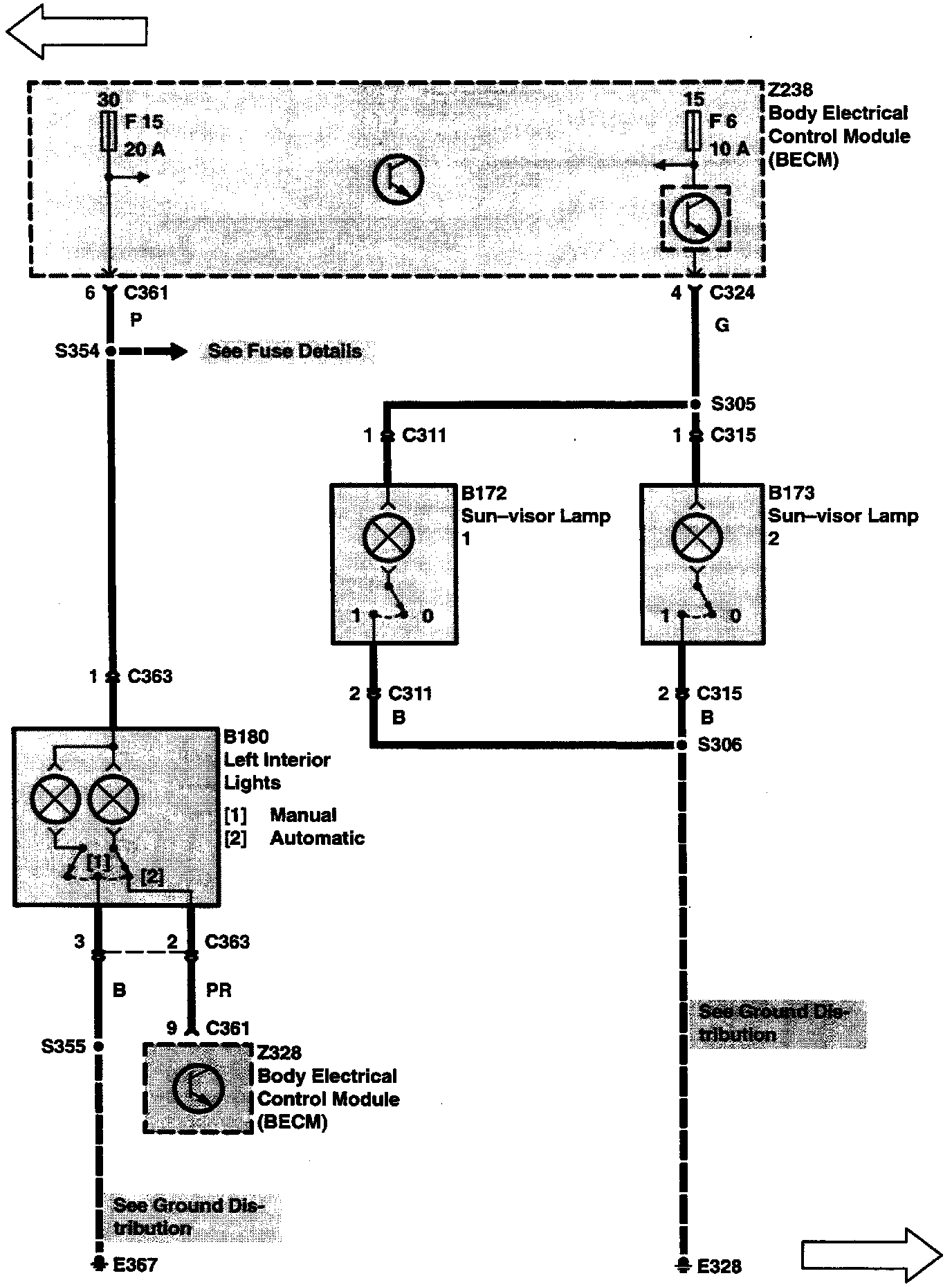

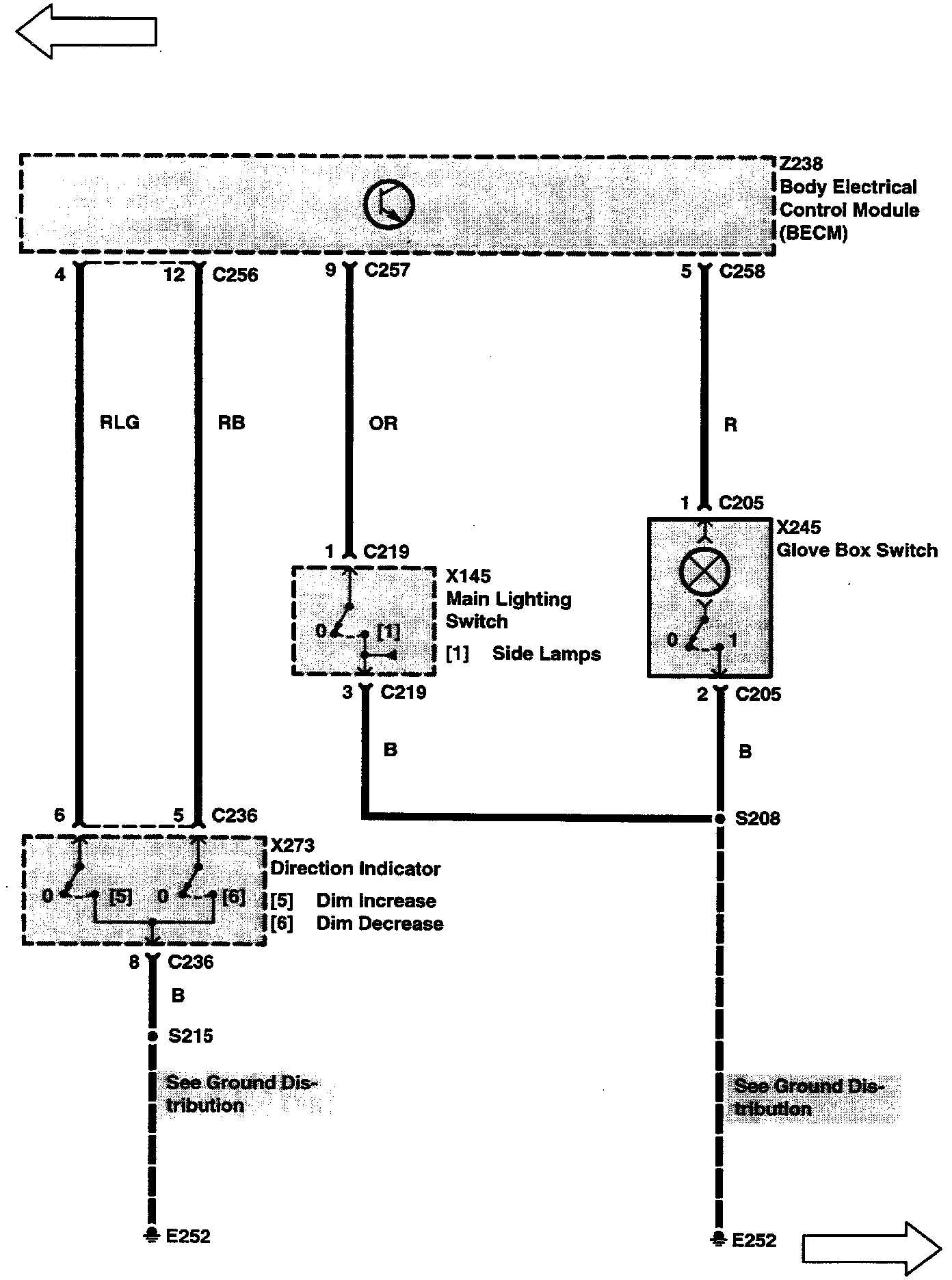

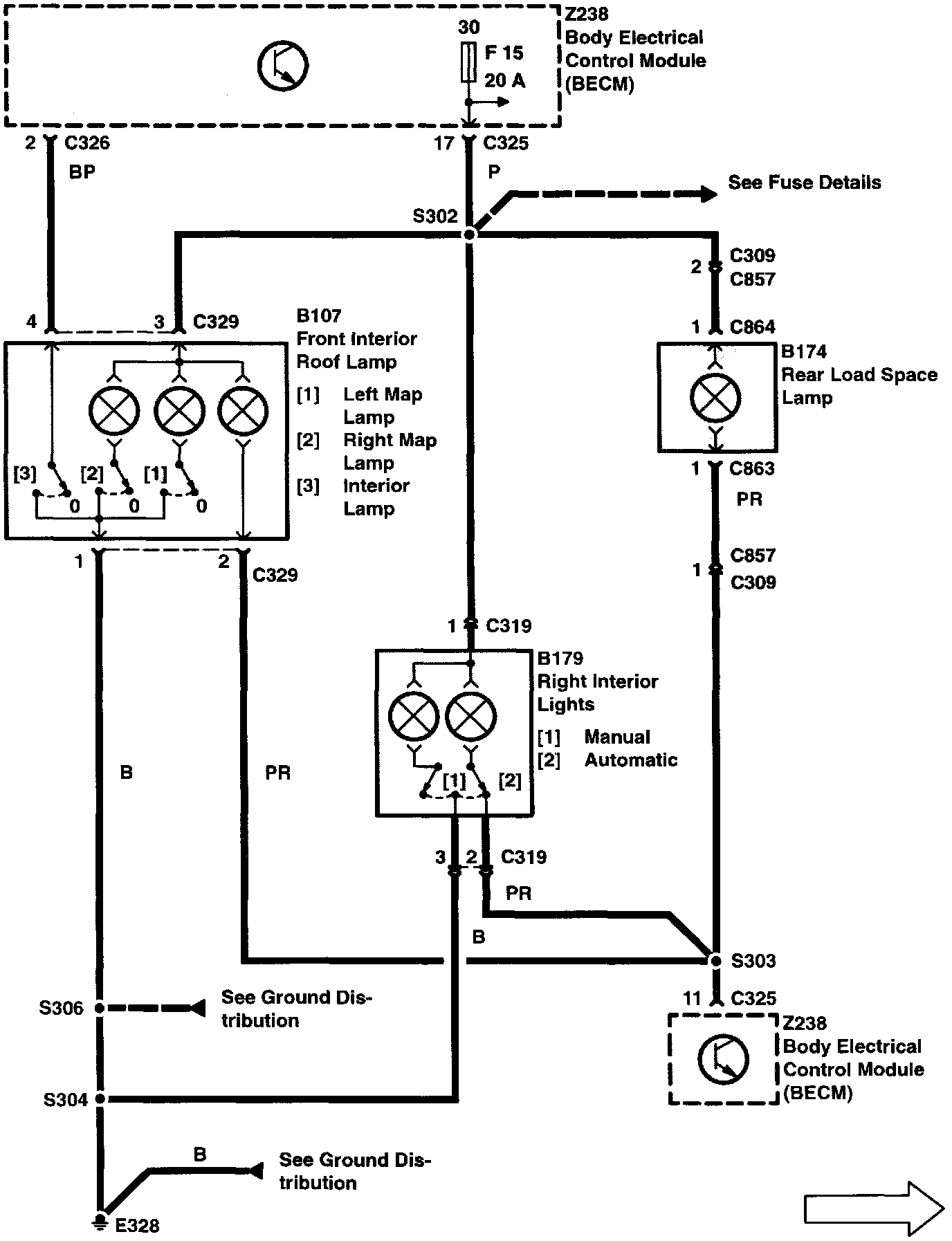

J1-3:






J1-4:






J1-5:






J1-6:






J1-7:






J1-8:






J1-9:






J1-10:






J1-11:






J1-12:






J1-13:
