Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1998
>>
Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

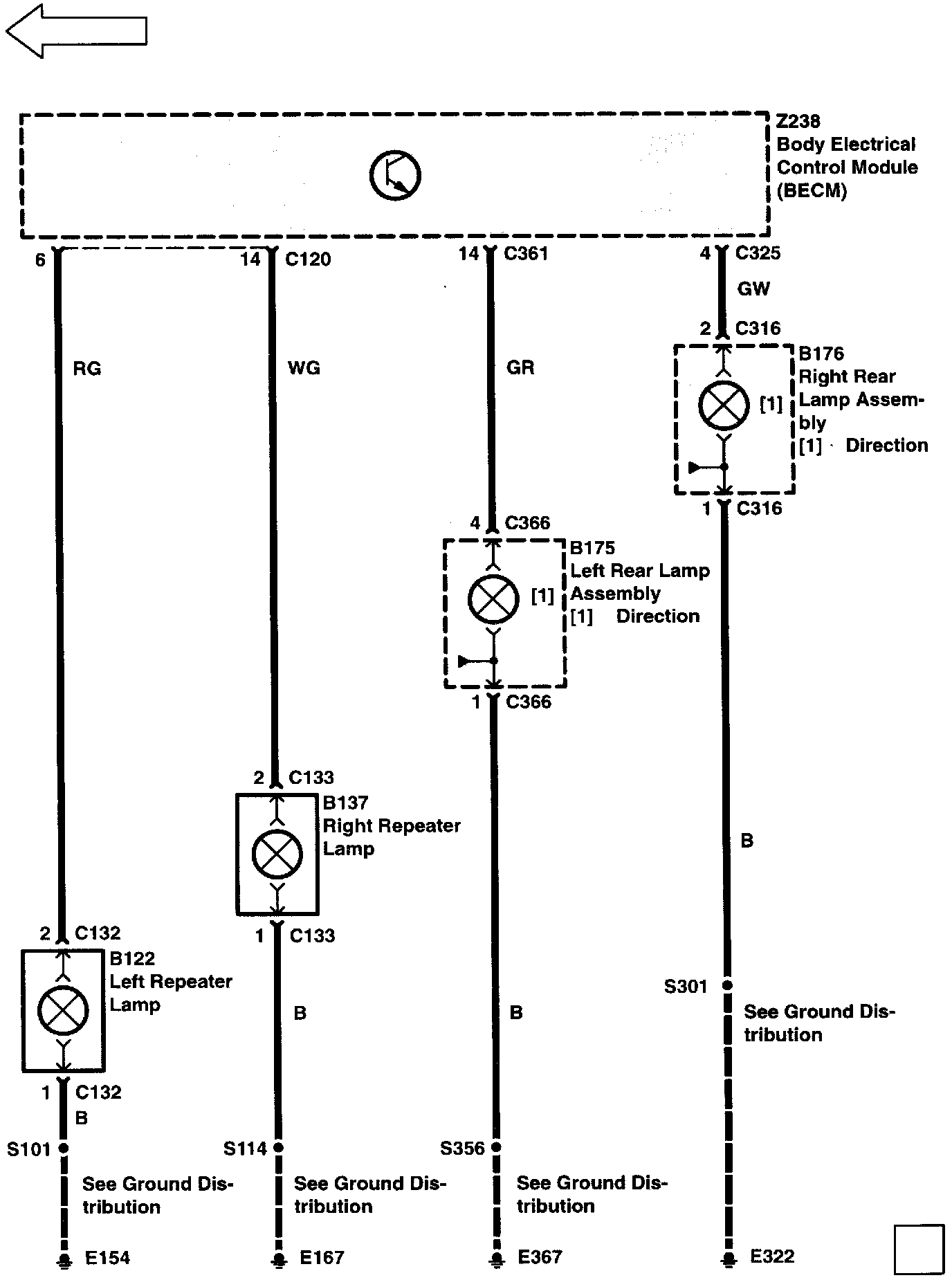

H6-2:

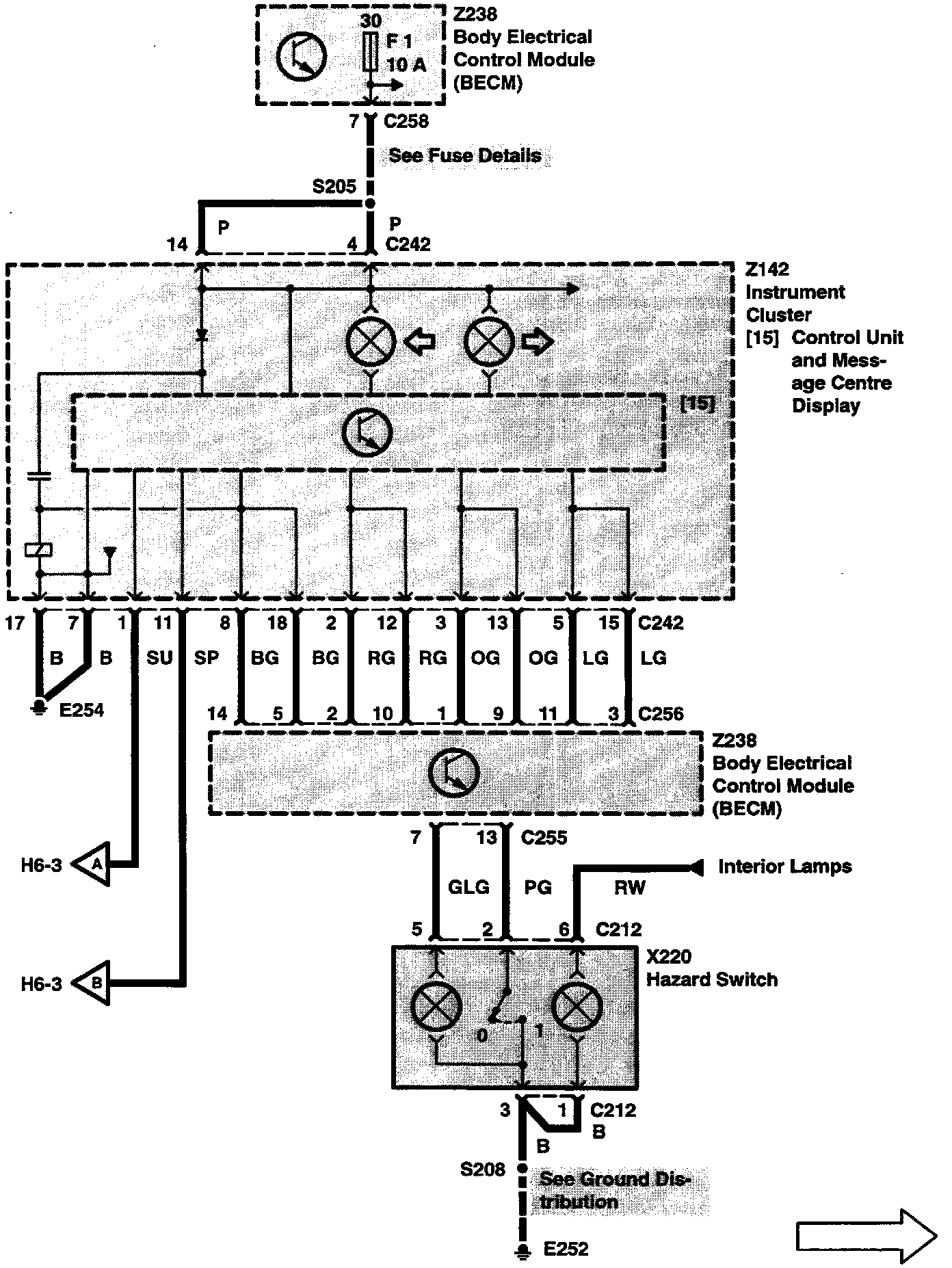

H6-3:

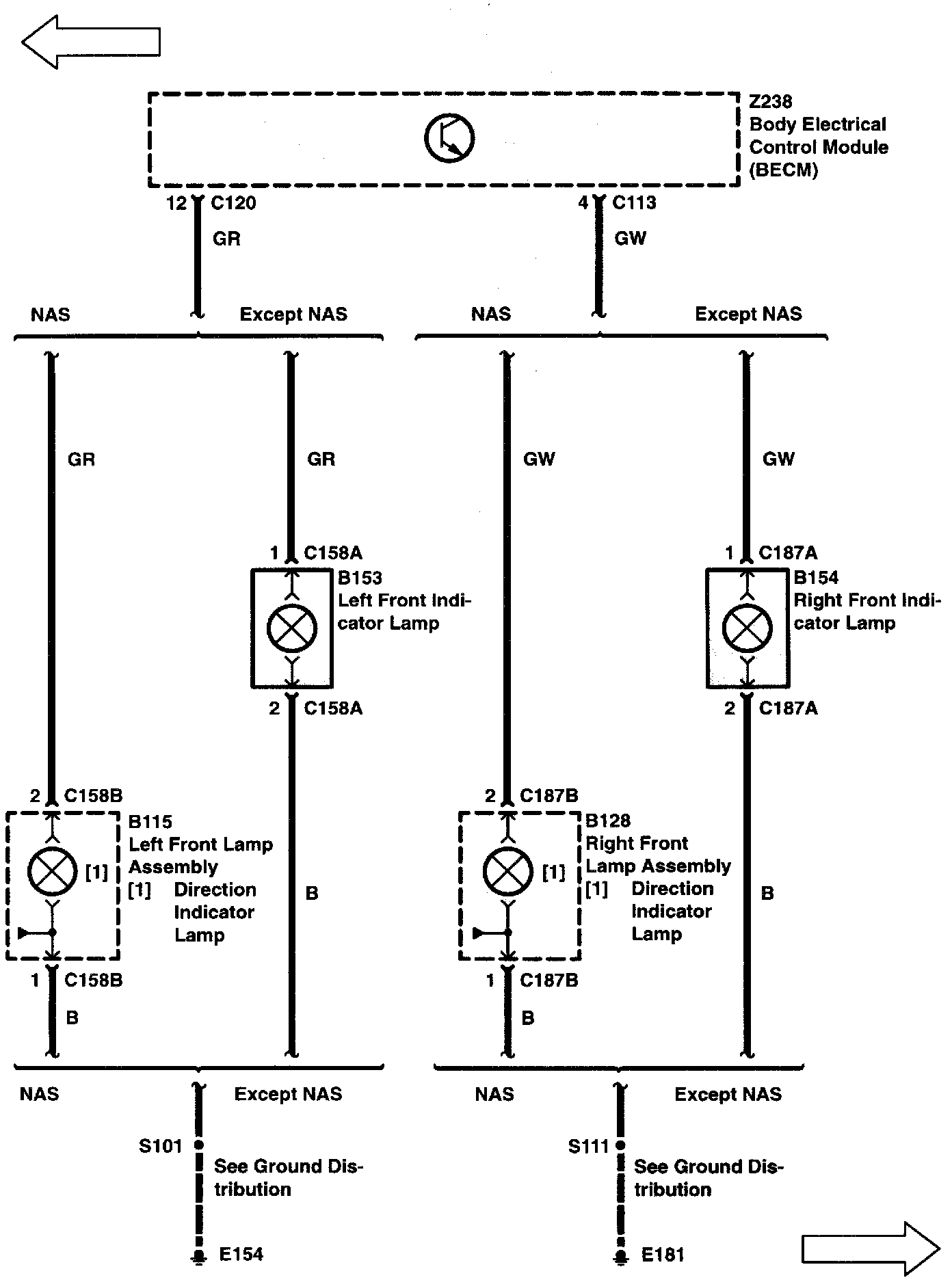

H6-4:
H6-5:
