Input Shaft Oil Seal Replacement

REMOVAL

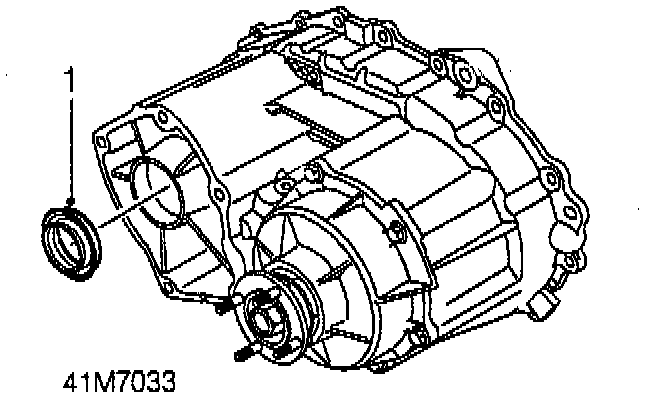

1. Using a flat bladed screwdriver free of rough edges, ease input shaft oil seal from transfer box front casing.

CAUTION: Do not mark sealing surface of front casing.

INSTALLATION
1. Clean sealing surface of front casing and running surface of input shaft. Ensure all traces of rubber are removed.

CAUTION: Do not use a metal scraper as this may damage sealing surfaces.

2. Lubricate oil seal sealing face with clean gearbox oil.





3. Position oil seal to transfer box front casing and install oil seal using LRT41-011.
