Rear Output Shaft Oil Seal Replacement

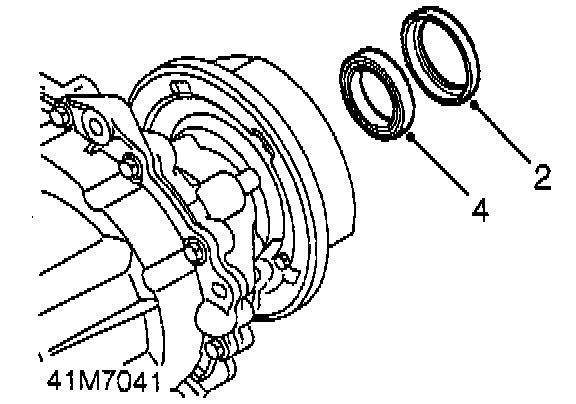

REMOVAL
1. Remove rear output shaft drive flange.





2. Remove dust shroud from transfer box rear casing.
3. Using a flat bladed screwdriver free of rough edges, ease oil seal from rear casing.

CAUTION: Do not mark sealing surface on rear casing.
4. Remove rear output shaft oil seal.

INSTALLATION
1. Clean sealing area of rear casing and running surface of drive flange. Ensure all traces of rubber are removed.

CAUTION: Do not use a metal scraper as this may damage sealing surfaces.

2. Lubricate sealing surfaces of seal with clean gearbox oil.

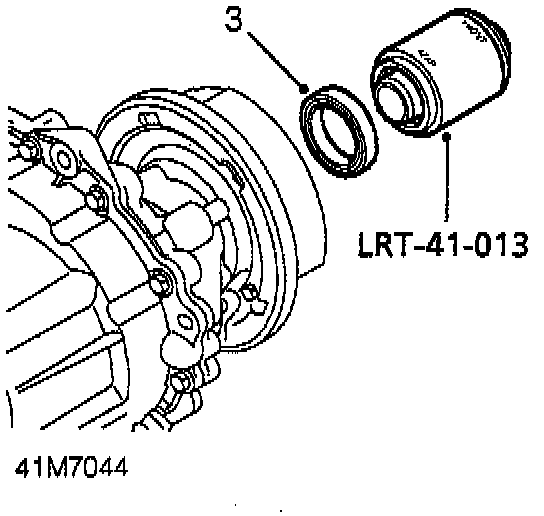

3. Using LRT-41-013 install oil seal to transfer box rear casing.
4. Install dust shroud to transfer box rear casing.
5. Install rear output shaft drive flange.
