Campaign - Headlamp Courtesy Delay Inoperative

No: H107
Ref:
Issue: 1
Date: 12/06/02

SERVICE ACTION

Courtesy Delay Relay Installation

AFFECTED VEHICLE RANGE:

Discovery Series II (LT) 3A767790 to 3A781627

SITUATION:

HEADLIGHT COURTESY DELAY FEATURE WILL NOT WORK

All 2003 MY Discovery vehicles within the above VIN range have been built without the courtesy headlight delay mini-relay. The headlights cannot be programmed to have the headlight courtesy feature as stated in the Owner's Handbook if the relay is not installed.

RESOLUTION:

INSTALL MISSING RELAY TO PERMIT COURTESY DELAY OPTION

All affected vehicles should have the courtesy delay mini-relay installed at the time of the Vehicle Preparation Process or at the next service opportunity.

PARTS INFORMATION:

YWB101210L Relay Qty1

WARRANTY CLAIMS:

H107 Time 0.10 hrs.
Install missing relay

Normal warranty policy and procedures apply. Material allowance is included in labor operation.

REPAIR PROCEDURE

INSTALL RELAY

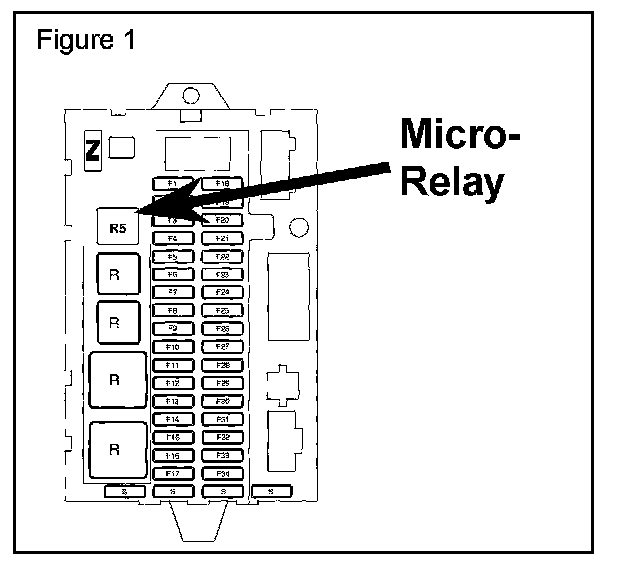

1. Install headlight courtesy relay YWB101210L) in position 5 of the passenger compartment relay panel. (Figure 1)

2. Using TestBook/T4, program the courtesy delay feature to the customer specified condition.

3. Verify that the courtesy delay feature works to the customer specified condition.

INSTALL CAMPAIGN LABEL

NOTE:
Campaign labels may have multiple Campaign numbers written on them if multiple campaigns are performed at the same time.





1. When all specified repairs have been accomplished, prepare the campaign label (LRN0002LABEL) as follows:

a) Place the label on a hard surface.

b) Use a ballpoint pen to neatly write/scribe in the bare aluminum areas of the label the following information:

^ Service Action code "H107"

^ Your retailer code

^ The date of repair

2. Clean all grease and dirt from the radiator support member.

3. Peel the completed campaign label from the backing paper and position it on the cleaned area.

4. Roll the label with the special roller tool to ensure proper adhesion.
