Collision Avoidance and Parking Assist Systems

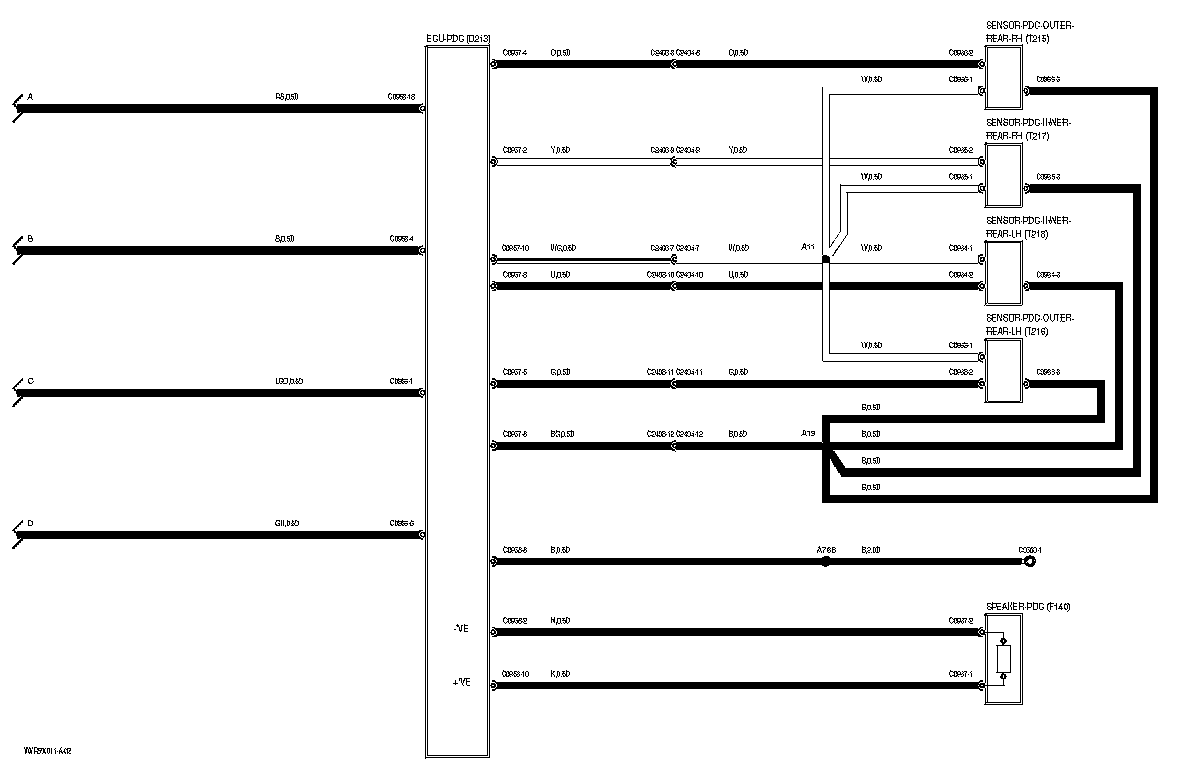

Park Distance Control(PDC) - Part 1:

Park Distance Control(PDC) - Part 2:

Locations: The Location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The Location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
