Locations
>>
Locking and Alarm Component Layout
Locking and Alarm Component Layout

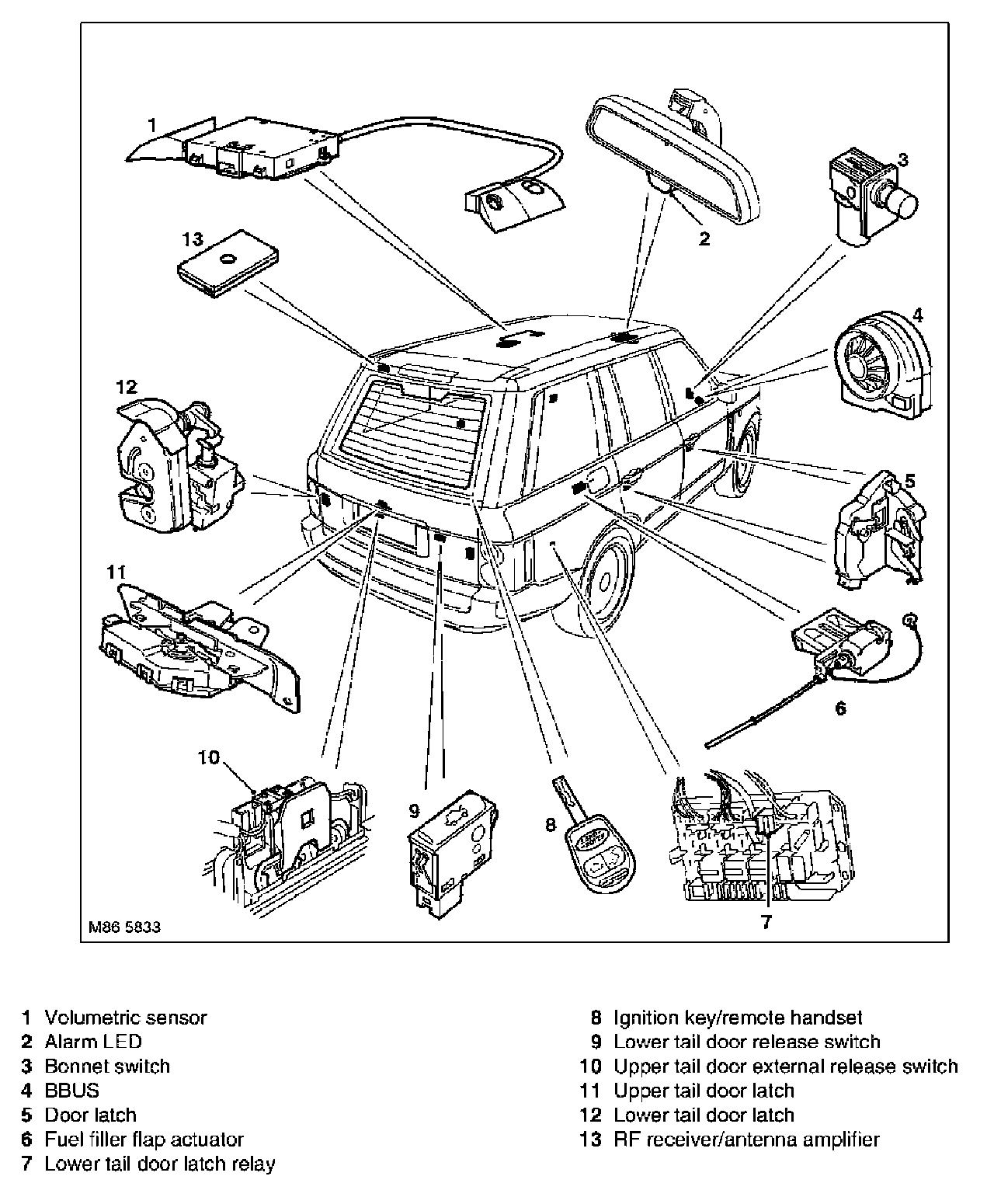

Locking And Alarm Component Layout, Sheet 1 Of 2

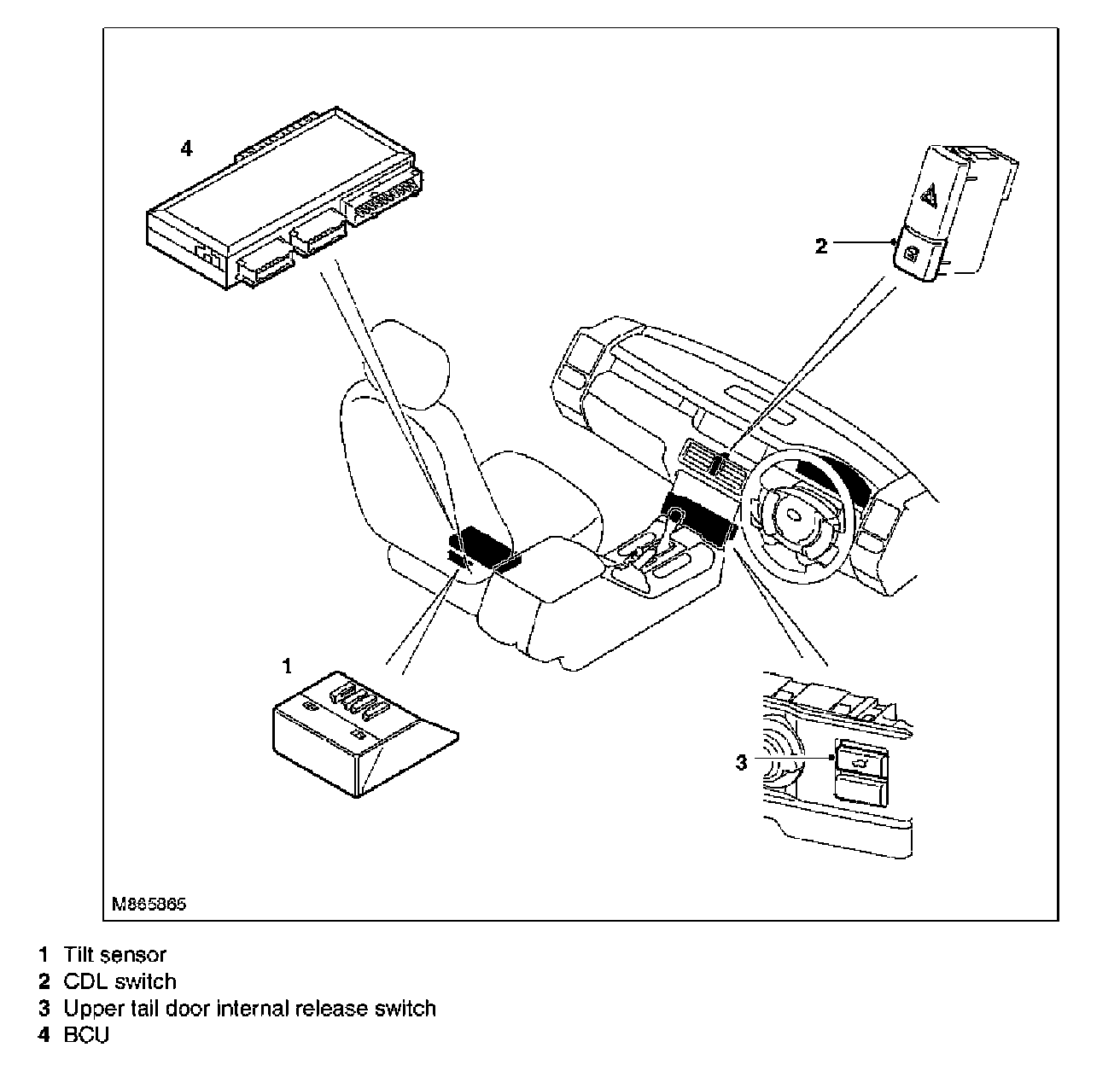

Locking And Alarm Component Layout, Sheet 2 Of 2
