Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Description and Operation
>>

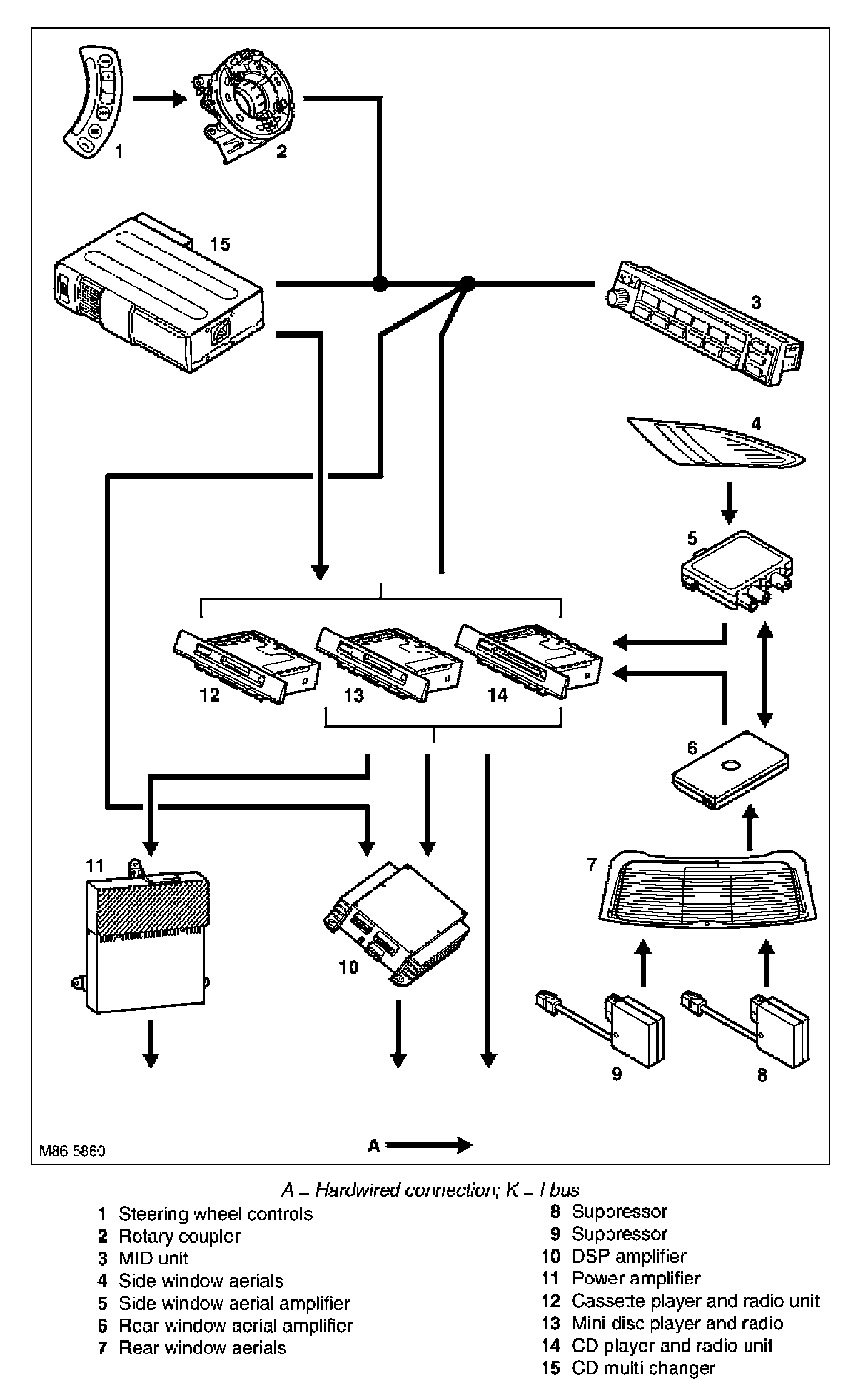

Mid Audio System Control Diagram
Mid Audio System Control Diagram
MID Audio System Control Diagram
