Vehicle Identification Number




Vehicle Identification Number

Location
The Vehicle Identification Number (VIN) plate is on a label; attached to the inner wing in front of the LH suspension turret. The VIN is also stamped in the following locations:
- On a plate behind the LH lower corner of the windscreen.
- On the front of the RH suspension turret.

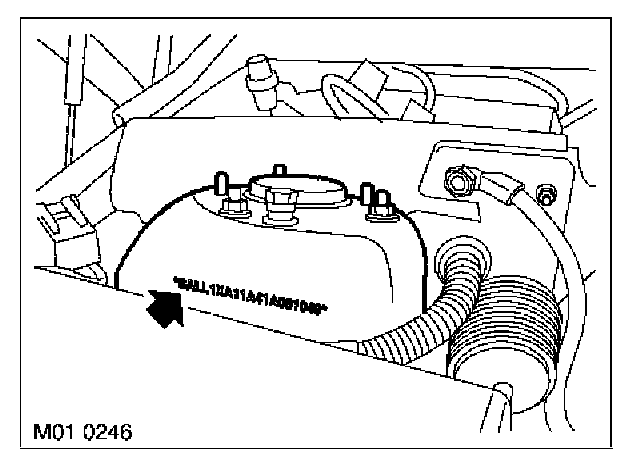

RH Suspension turret VIN

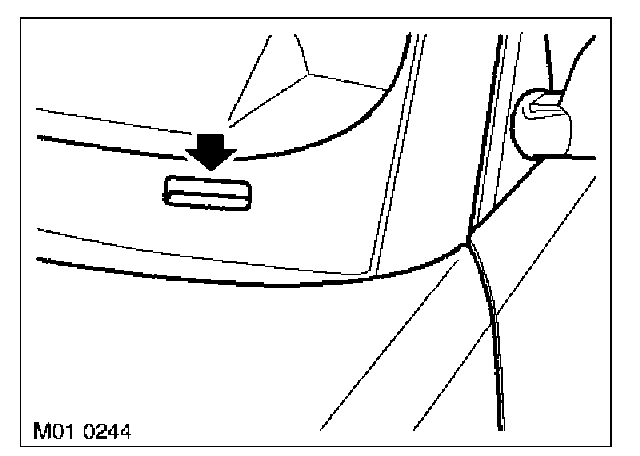

Windscreen VIN

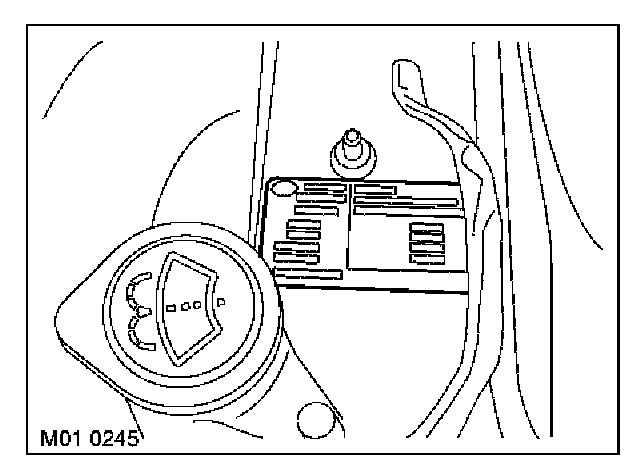

Inner wing VIN

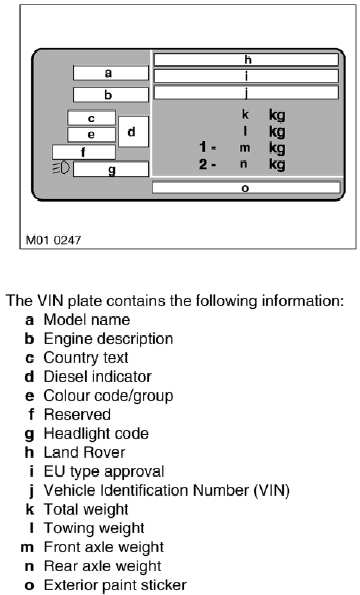

VIN plate content







Vehicle identification number - NAS and Canada
Example:SALUA11401A001099
