Mirror - Exterior

76.11.10 Mirror - Exterior

Remove

1. Remove front door trim casing.

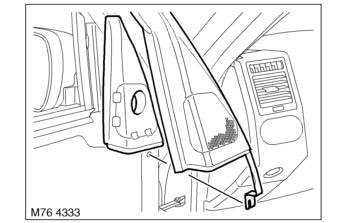

2. Release lower edge of door trim finisher from clip, move aside. Remove foam moulding and release harness.

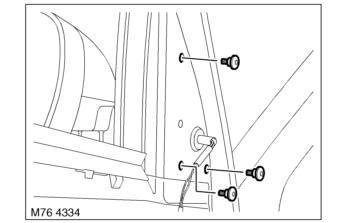

3. Remove 3 Torx screws securing exterior mirror to door, withdraw harness and remove mirror assembly.
4. Remove foam pad from cheater panel.

Refit

1. Fit foam pad to cheater panel.
2. Feed mirror harness through panel, position mirror, fit and tighten Torx screws to 10 Nm (7 lbf.ft).
3. Fit and secure upper door trim finisher.
4. Fit front door trim casing.
