Heater Control Valve: Service and Repair

Controls - Heater

Service repair No - 80.10.02

Remove
1. Remove LH centre console footwell closing panel.
2. Remove RH centre console footwell closing panel.

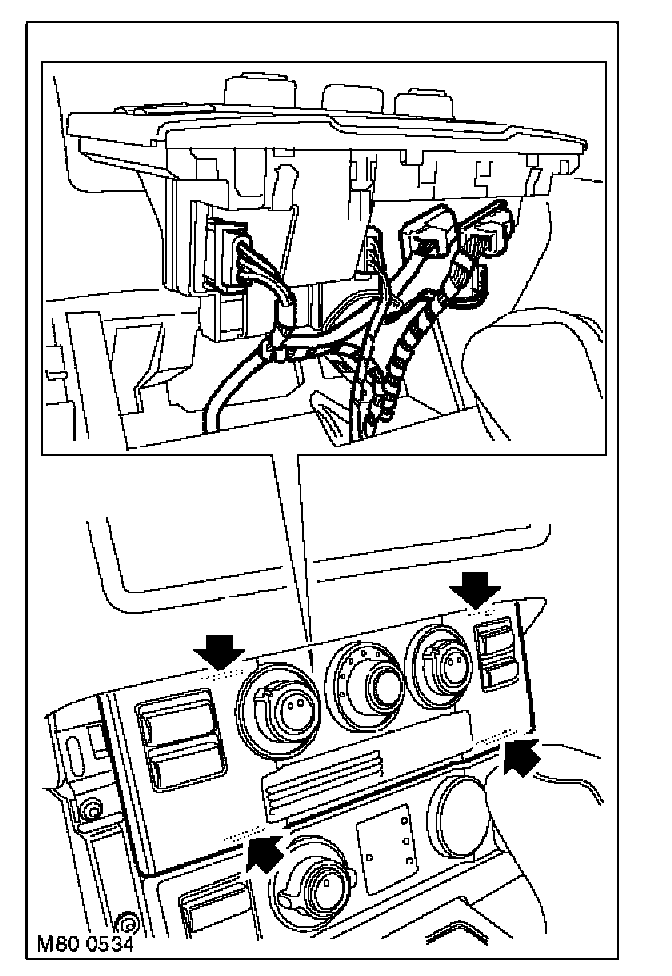

3. Carefully release 4 cups securing heater controls to carrier, disconnect 5 multiplugs and remove.

Refit
1. Position heater controls to carrier and connect multiplugs.
2. Fit and secure heater controls to carrier.
