Closing Panel - Fascia End

76.46.11 Closing Panel - Fascia End

Remove







1. Release sufficient door aperture seal to access closing panel.

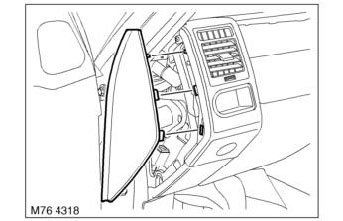

2. Release 3 clips securing end closing panel to fascia and carefully remove panel.

NOTE: Do not carry out further dismantling if component is removed for access only.

3. Remove 3 retaining clips from closing panel.

Refit

1. Fit retaining clips to closing panel.
2. Position closing panel to fascia, align and secure clips.
3. Fit seal to door aperture.
