Top Rail - Fascia

76.46.04 Top Rail - Fascia

Remove

1. Remove drivers side upper trim finisher.
2. Remove passenger side upper trim finisher.

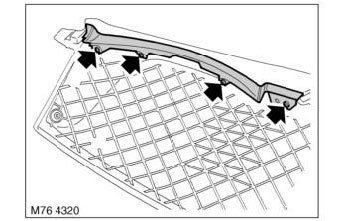

3. Carefully release clips securing centre grille to top rail. Remove grille.







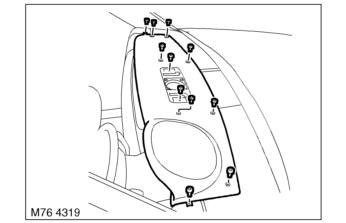

4. Remove 11 Torx screws securing top rail to fascia, carefully pull top rail rearward and release.
5. Disconnect speaker multiplug and remove top rail.

NOTE: Do not carry out further dismantling if component is removed for access only.

6. Remove 4 Torx screws securing speaker to top rail and remove speaker.







7. Remove 4 Torx screws securing instrument pack finisher, remove finisher.

Refit

1. Fit instrument pack finisher to top rail and secure with Torx screws.
2. Fit speaker and secure with screws.
3. Position top rail, connect speaker multiplug. Secure rail with Torx screws.
4. Position and secure centre grille.
5. Fit drivers side upper trim finisher.
6. Fit passenger side upper finisher.
