Carrier - Battery

Carrier - Battery


Service repair No - 86.15.11

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Remove battery.

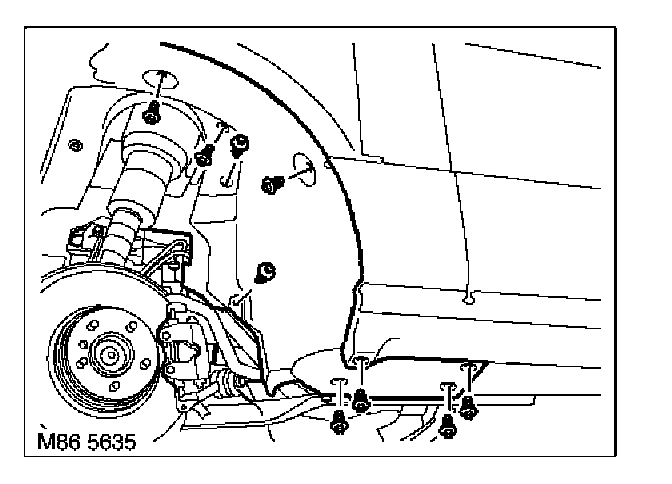

2. Remove 9 screws securing rear of wheel arch liner to inner wing and sill, release liner from wing for access.







3. Remove nut securing fuel burning healer (FBH) to underside of battery tray.







4. Remove 4 bolts and battery carrier.

Refit
1. Fit battery carrier, ensure stud aligns with FBH mounting bracket.
2. Fit bolts to carrier and nut to FBH mounting bracket, tighten to 10 Nm (7 lbf.ft).
3. Fit and secure wheelarch liner.
4. Fit battery.
