Ventilation Switch: Service and Repair

Switch - Recirculation Control

Service Repair No - 80.10.21

Remove

1. Remove louvre panel assembly.

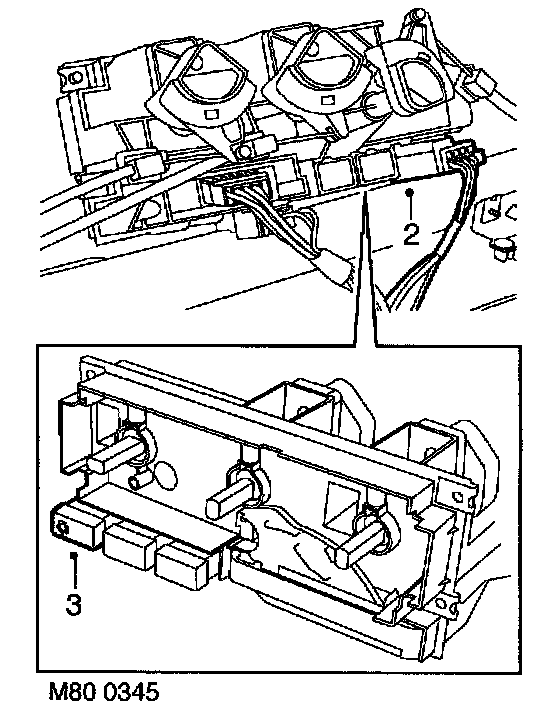

2. Disconnect multiplug from recirculation switch.
3. Remove recirculation switch from heater control panel.

Refit

1. Fit recirculation switch to heater control panel and connect multiplug.
2. Fit louvre panel assembly.
