Drive Belt: Diagrams

Discovery II ACE-equipped:

Discovery II Belt Routing Without ACE:

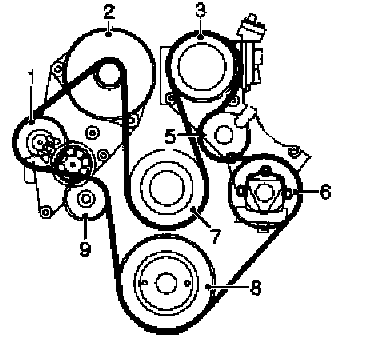

LEGEND
1 Tensioner Pulley.
2 Alternator.
3 A/C Compressor.
4 ACE Pump.
5 Idler Pulley - V8 only.
6 PAS Pump.
7 Viscous Fan Pulley.
8 Crankshaft Pulley
9 Idler Pulley - V8 only.

1. Check auxilliary drive belt for signs of splits, fraying, oil contamination and wear.
