Harness - Body

Harness - body

Service repair No - 86.70.11

Remove
1. Remove fascia panel.
2. Remove headlining.

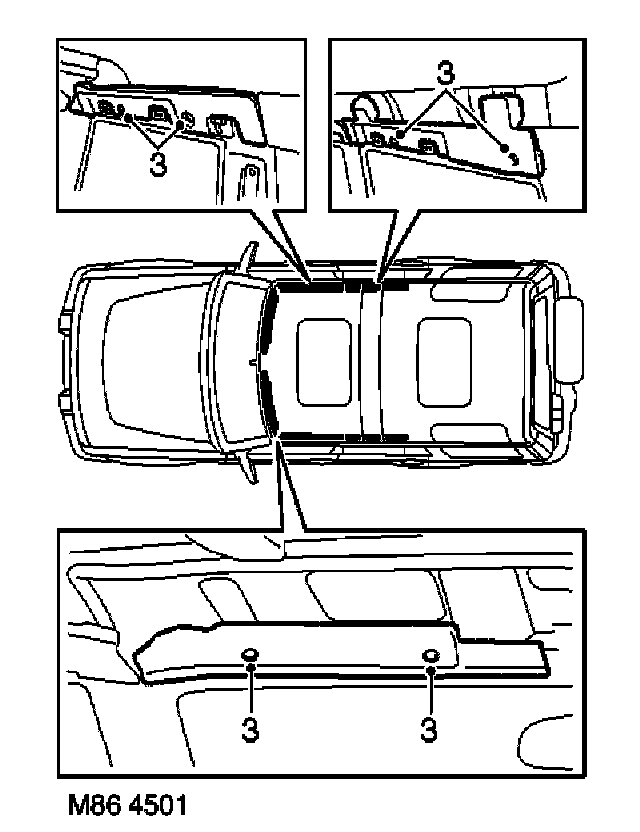

3. Remove 5 studs securing sound deadening and remove 3 sound deadening panels.





4. Remove 2 studs securing LH lower 'A' post trim panel and remove trim panel.

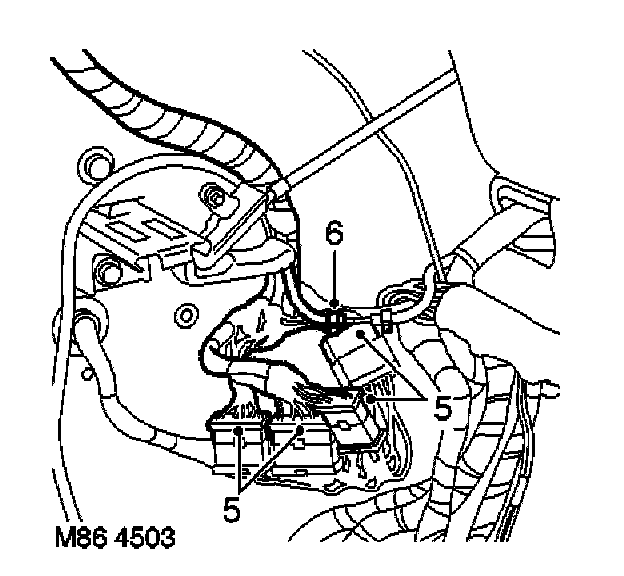

5. Release and disconnect 4 multiplugs from LH lower 'A' post.
6. Release clip and disconnect rear washer pipe from LH lower 'A' post.
7. Release harness from behind bonnet release cable.

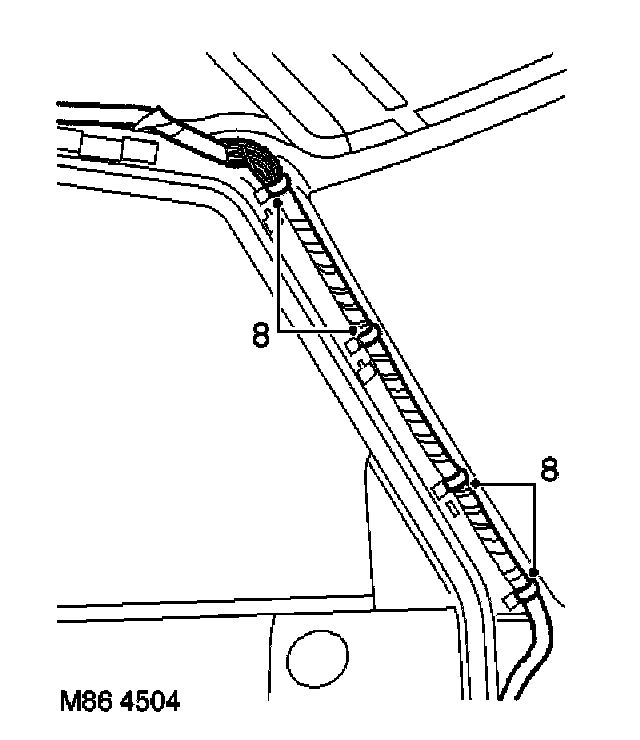

8. Release harness from 4 retainers in LH upper "A" post and collect protective sleeves.

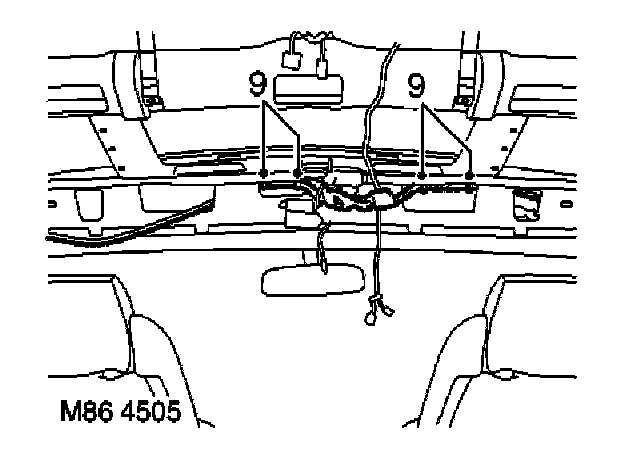

9. Release 4 clips securing harness to center of roof.





10. Disconnect multiplug from ACE accelerometer.
11. Disconnect multiplug from interior mirror.
12. Feed harness through roof to upper 'A' post.
13. Release 3 retainers securing harness to RH roof panel.





14. Release 2 cable clips securing body harness to sunroof harness.

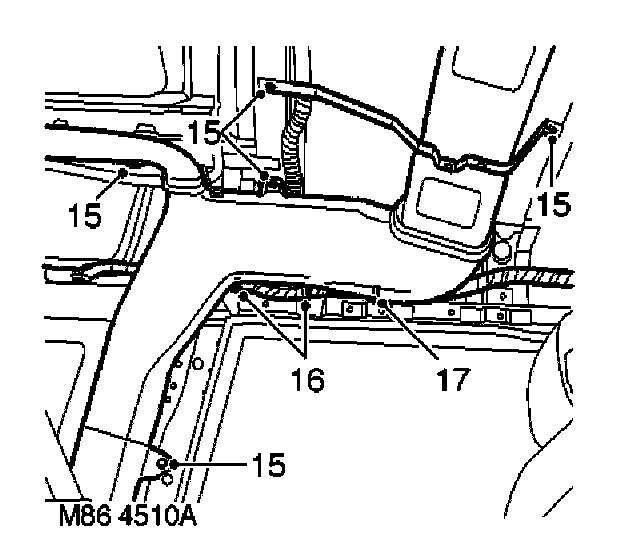

15. Drill out 4 rivets securing air conditioning dueling to body, release dueling.
16. Release 2 cable ties securing harness to LH side of body.
17. Release retainer securing harness to LH side of body.





18. Disconnect Lucar from radio aerial LH amplifier.
19. Remove both luggage compartment trim casings.





20. Disconnect 2 multiplugs from rear air conditioning unit.





21. Remove 6 clips securing harness to LH side of body.
22. Remove both rear tail lamps.





23. Disconnect multiplugs from both tail/flasher lamps.
24. Release 2 clips securing harness to rear bumper.

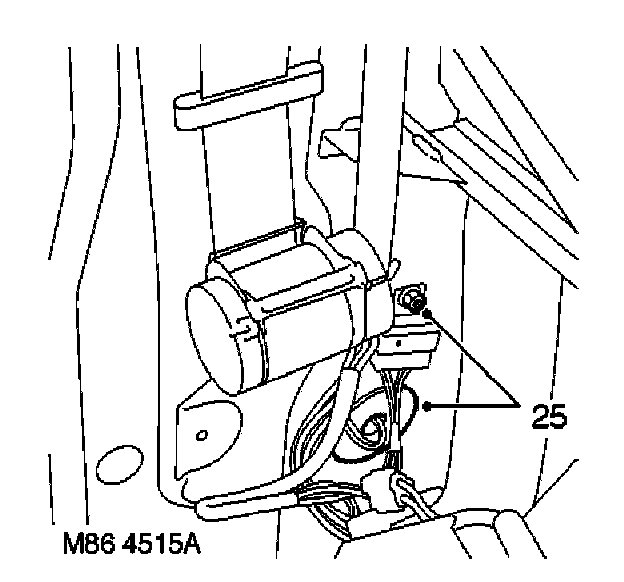

25. Remove nut securing earth header to LH 'E' post and remove grommet from 'E' post.

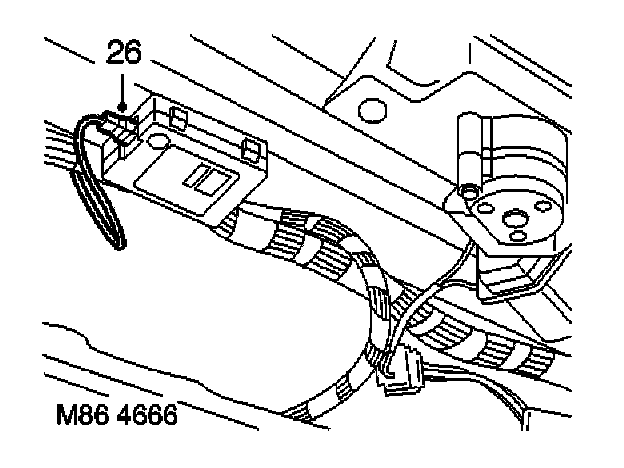

26. Disconnect multiplug from RF receiver.
27. Feed harness back to air conditioning dueling.

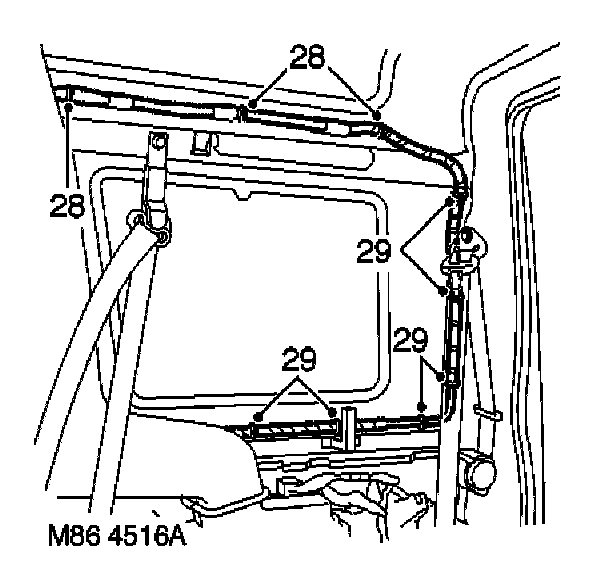

28. Release 3 harness retainers securing harness to RH side of body.
29. Release 6 cable clips securing harness to body.





30. Disconnect Lucar from RH aerial amplifier.
31. Release harness from roof and feed to upper 'E' post.
32. Remove tail door trim casing.
33. Carefully release plastic sheet from tail door.

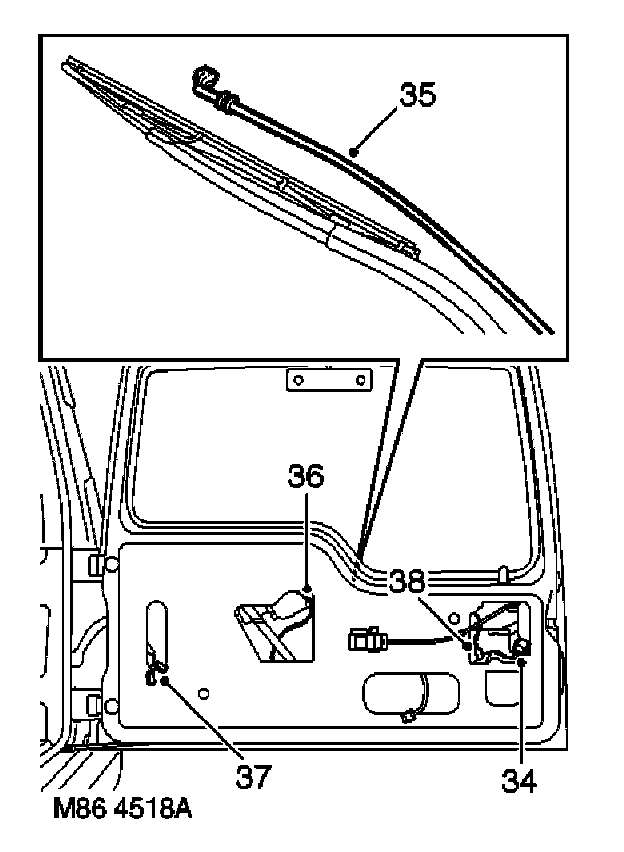

34. Disconnect multiplug from door latch.
35. Disconnect multiplug and washer tube from rear wiper arm.
36. Disconnect multiplug from rear wiper motor.
37. Disconnect 2 Lucars from heated rear window (HRW).
38. Disconnect multiplug from number plate lamp.

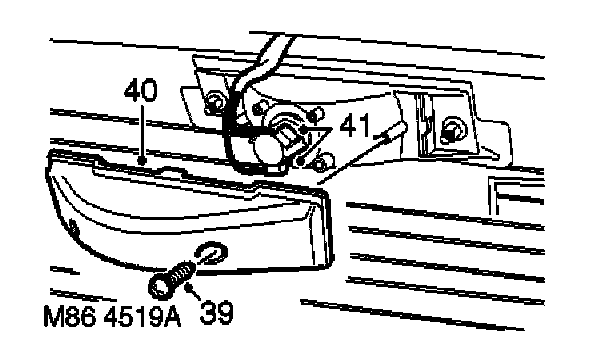

39. Remove 2 screws securing center high mounted stop lamp (CHMSL) cover to tail door glass.
40. Remove CHMSL cover.
41. Disconnect 2 Lucars from CHMSL.
42. Attach draw string to harness and draw harness through tail door.
43. Disconnect draw string from harness, and tape to the tail door.





44. Release 3 clips securing harness to tail door.

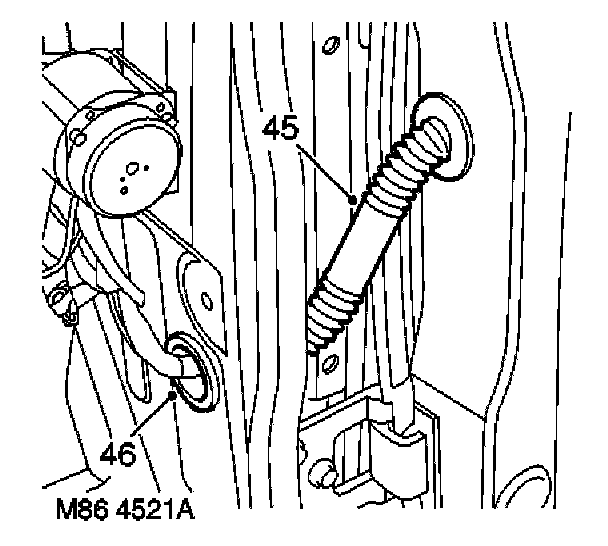

45. Release harness sleeve from door outer edge and feed harness through door.
46. Release grommet from "E post and feed tail door harness back to upper 'E' post.

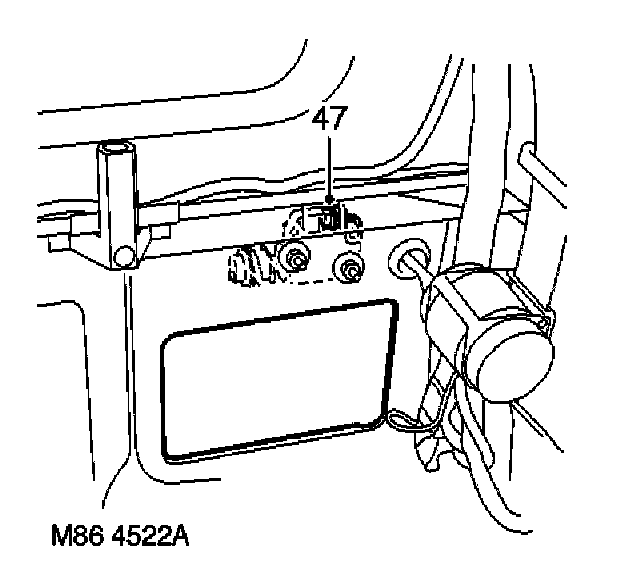

47. Disconnect multiplug from fuel flap solenoid.





48. Remove nut securing alarm sounder to RH lower 'E' post.
49. Disconnect multiplug from alarm sounder.
50. Remove alarm sounder.





51. Remove grommet and feed harness from rear bumper to upper 'E' post.
52. Remove nut securing earth headers to RH 'E' post.
53. Feed harness to air conditioning dueling.

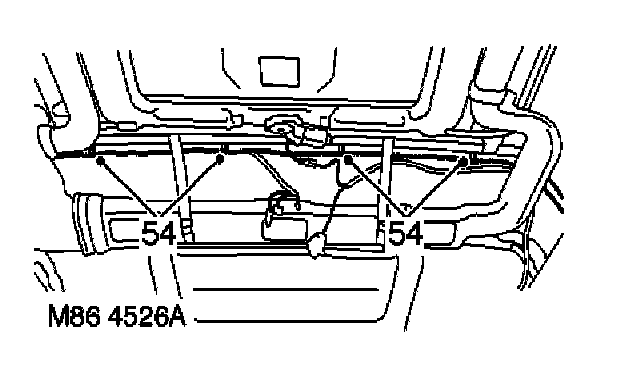

54. Remove 4 cable ties securing harness to center of roof.
55. With assistance, remove harness from air conditioning dueling and remove from vehicle.

Refit
1. With assistance, position harness to air conditioning dueling and secure with cable ties.
2. Secure harness to sunroof harness with cable clips.
3. Connect multiplug to RF receiver.
4. Feed harness to LH and RH upper 'E' posts.
5. Feed harness through 'E' post to tail lamp and rear bumper and secure with grommet.
6. Connect multiplug to fuel flap solenoid and alarm sounder.
7. Position alarm sounder to rear quarter and secure with nut to 9 Nm (7 ft. lbs.).
8. Position both RH earth header to "E post and tighten nut to 10 Nm (7 ft. lbs.).
9. Feed tail door harness through 'E' post and secure with grommet.
10. Position harness sleeve to outer edge of door and pull harness through door.
11. Secure harness to tail door with clips.
12. Connect washer tube to rear of wiper arm.
13. Remove tape from draw string and secure to CHMSL harness.
14. Draw harness through tail door and connect Lucars to CHMSL.
15. Fit CHMSL cover and secure with screws.
16. Connect multiplug to door lock switch.
17. Connect Lucars to HRW.
18. Connect multiplug to rear wiper motor.
19. Connect multiplug to door latch.
20. Fit plastic sheet to tail door, ensuring it aligns with witness marks.
21. Fit tail door trim casing.
22. Connect Lucar to radio aerial RH amplifier.
23. Secure harness to RH side of body with clips and retainers.
24. Position both LH earth header to 'E' post and tighten nut to 10 Nm (7 ft. lbs.).
25. Connect multiplugs to both tail/flasher lamps and secure harness to bumper with clips.
26. Fit both rear tail lamps.
27. Secure harness to rear LH side of body with 6 cable clips.
28. Connect 2 Lucars to rear air conditioning unit.
29. Fit both luggage compartment trim casings.
30. Feed harness into position for rear interior light.
31. Connect Lucar to radio aerial LH amplifier.
32. Secure harness to body with cable ties clips and retainers.
33. Secure air conditioning dueling to body with rivets.
34. Feed harness to LH lower 'A' post.
35. Secure harness to LH side of body with cable tie clips and retainers.
36. Connect and secure multiplugs to lower LH 'A' post.
37. Feed harness through roof to center.
38. Secure harness behind bonnet release cable.
39. Connect rear washer pipe at lower 'A' post and secure with clip.
40. Secure harness to roof with clips.
41. Connect multiplug to interior mirror, ARC accelerometer.
42. Position sound deadening panels and secure with clips.
43. Fit headlining.
44. Fit fascia panel.
