Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
Electrical Data

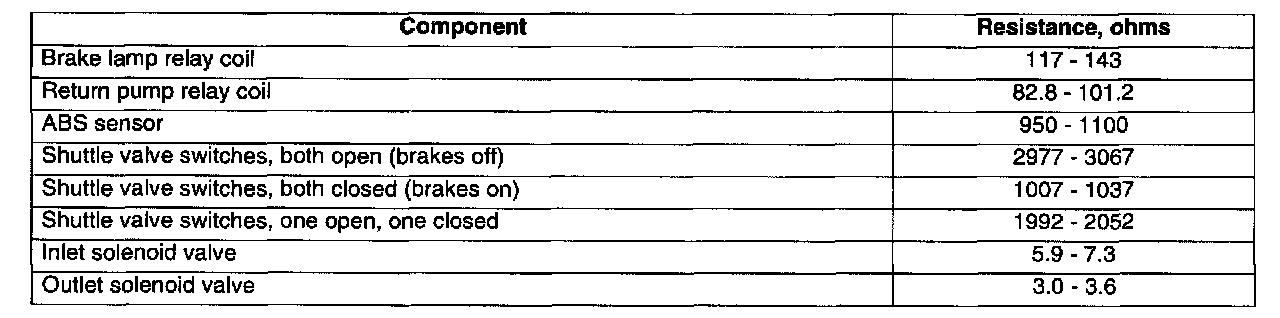

Nominal resistance values for applicable brake control components are as detailed in image.
