Transfer Case: Locations

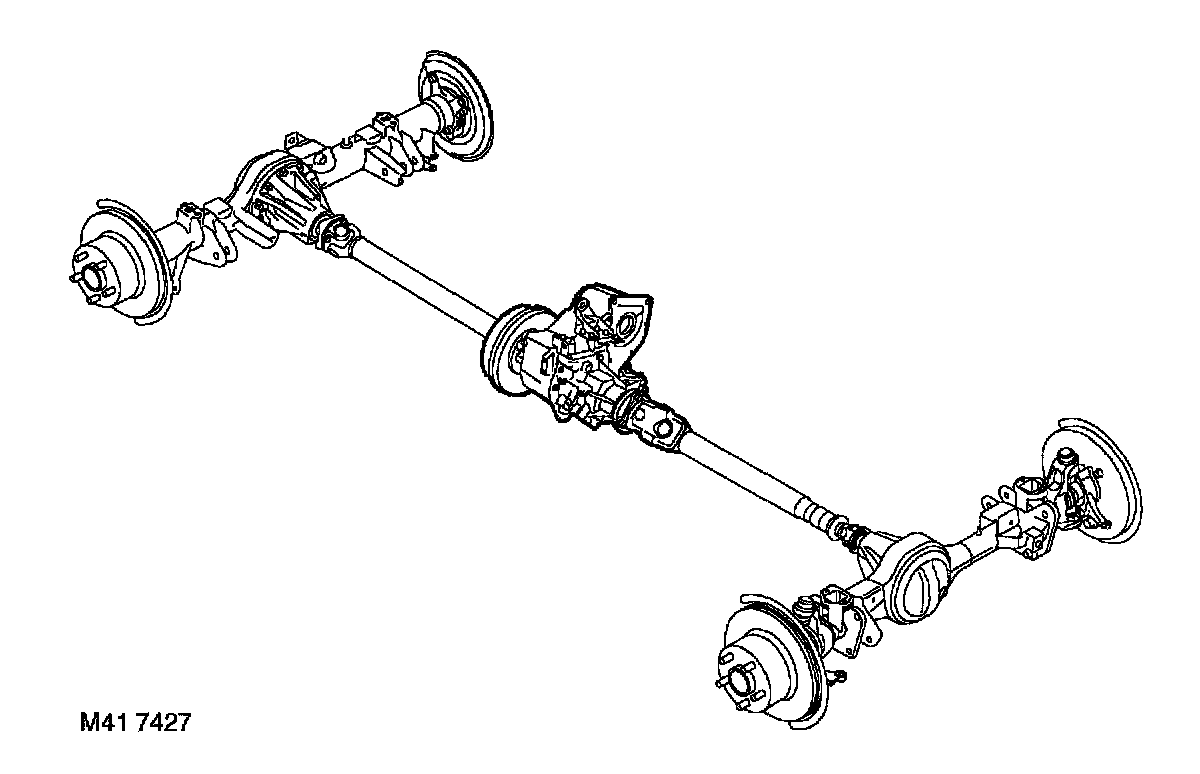

LT230SE transfer box

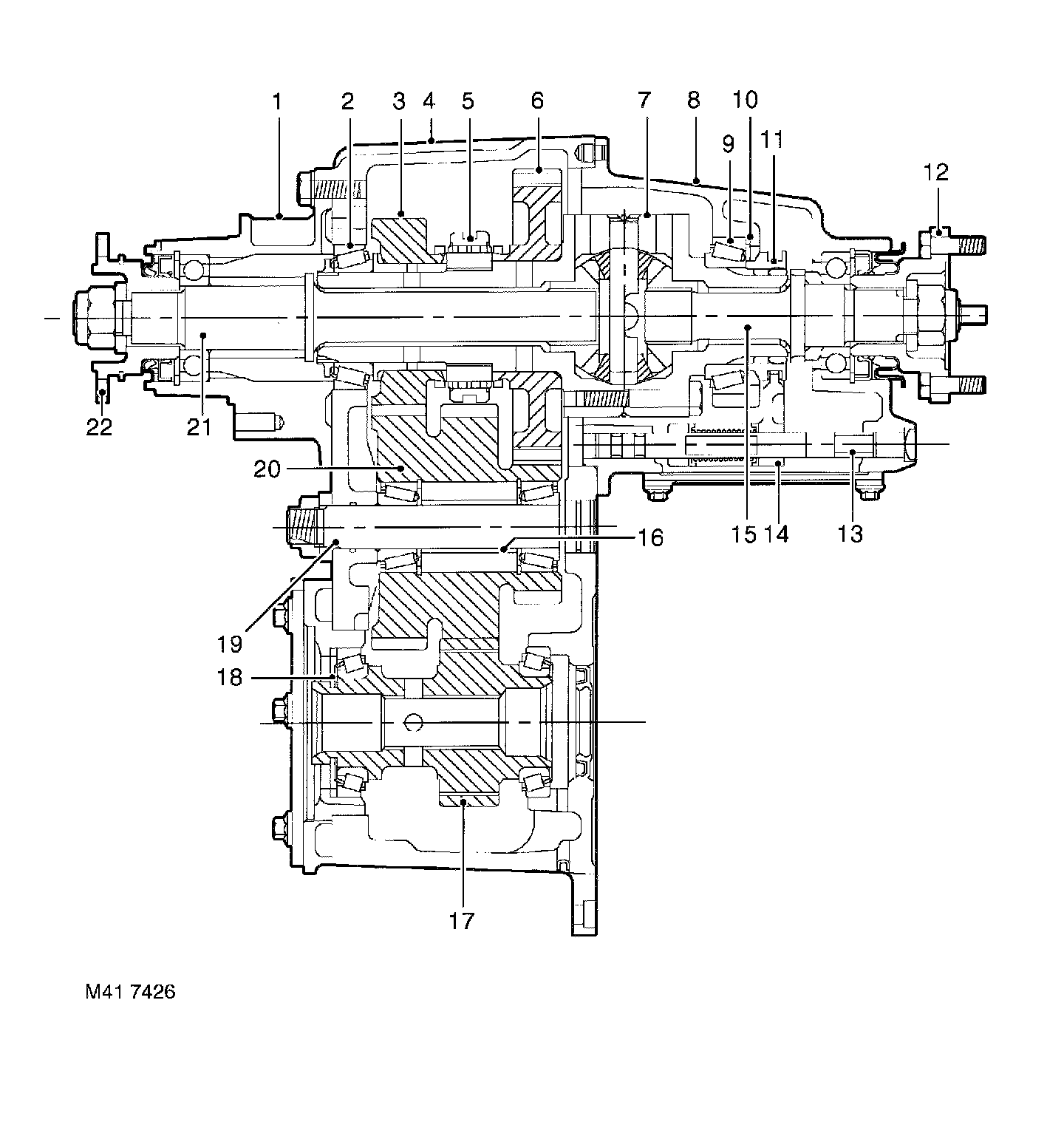

Transfer box cross section

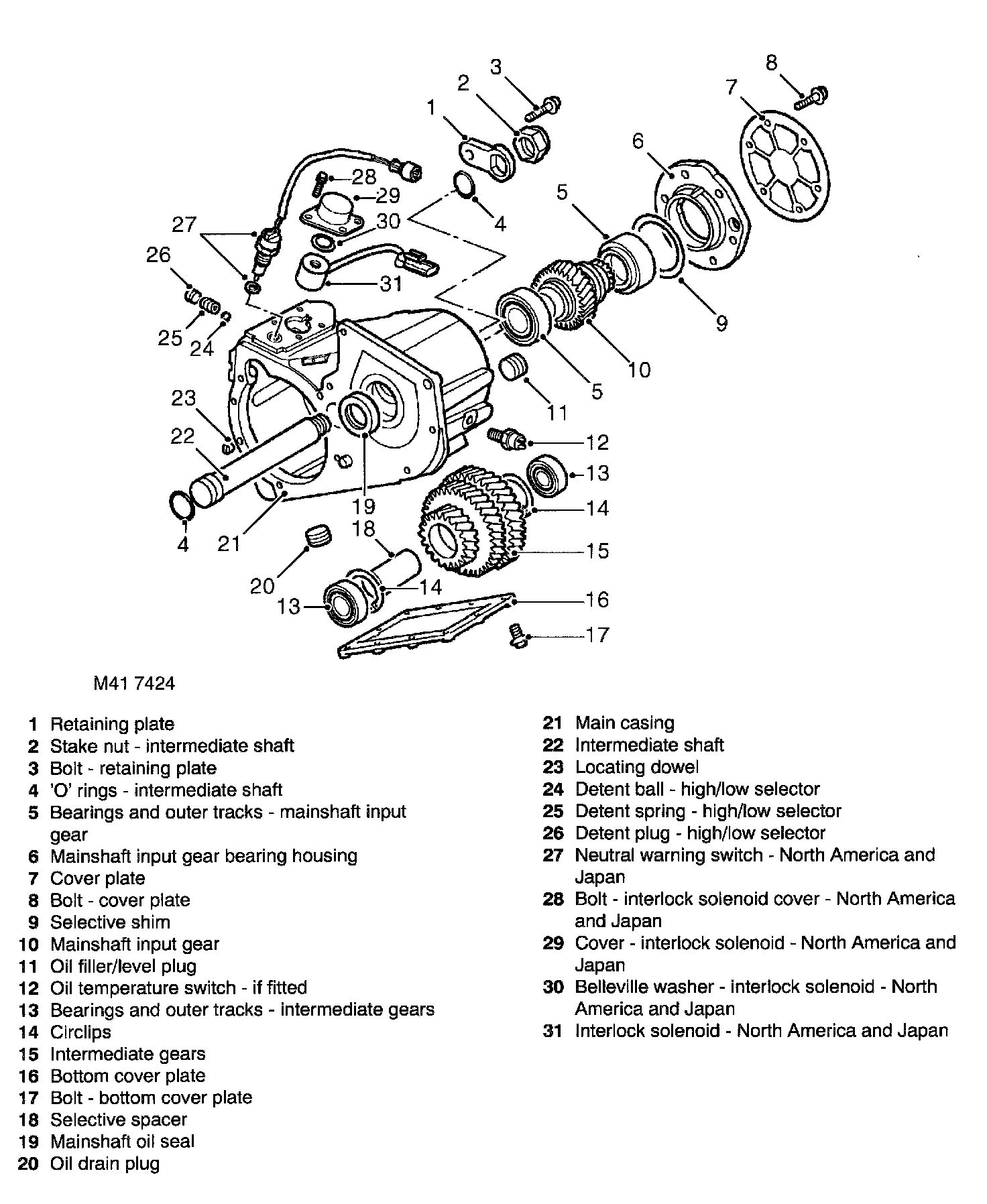

Main casing components

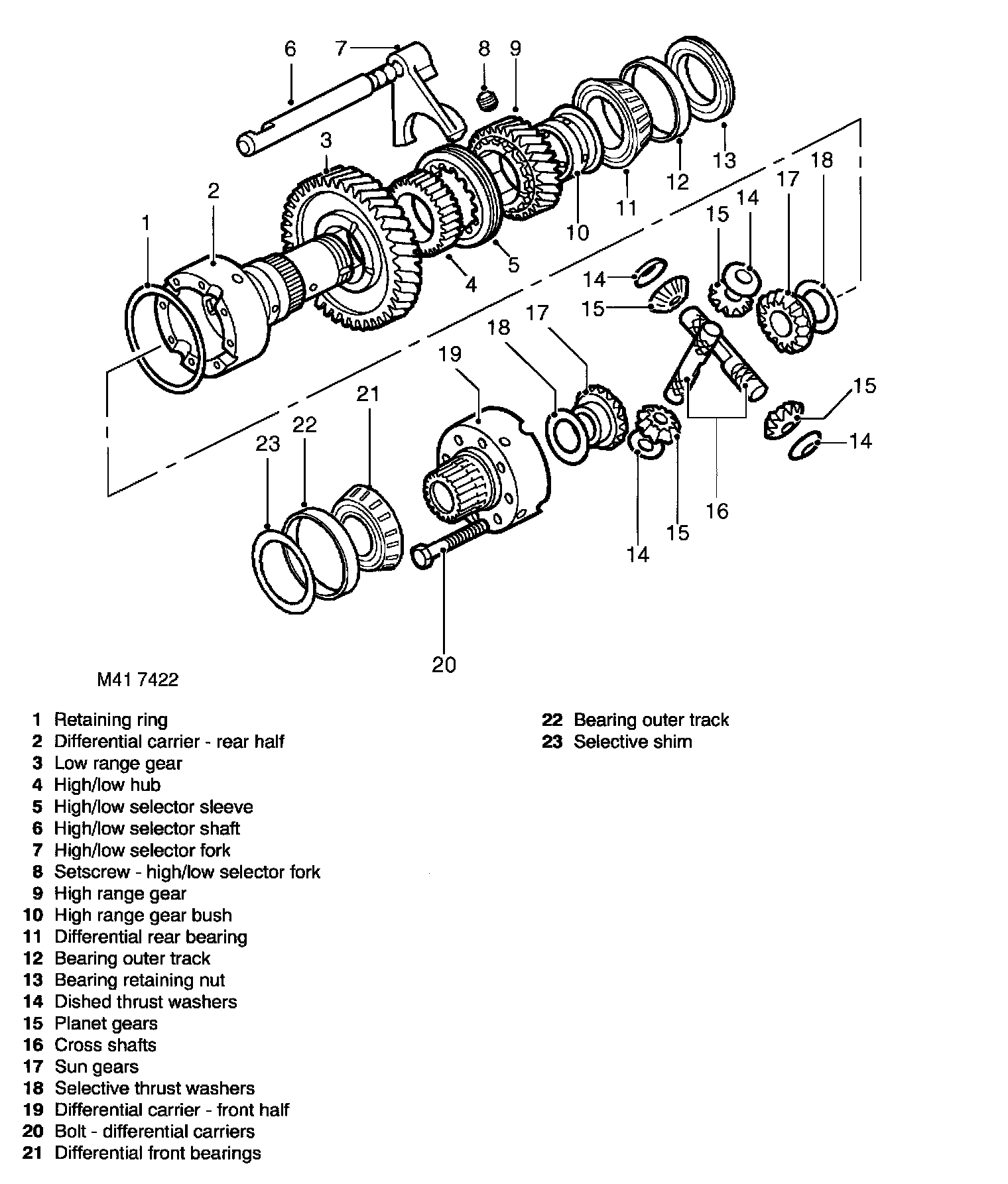

Differential components

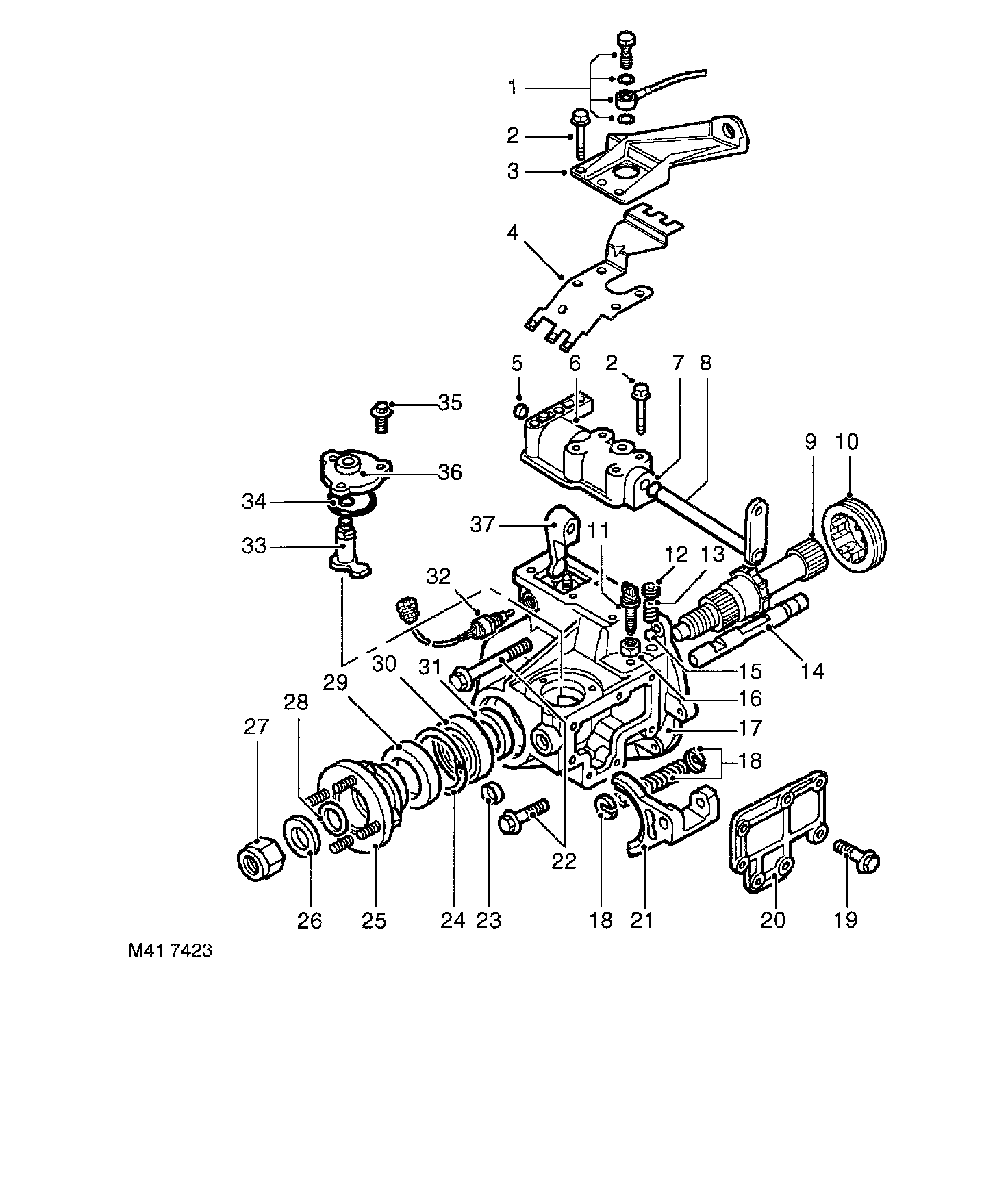

Front output housing components

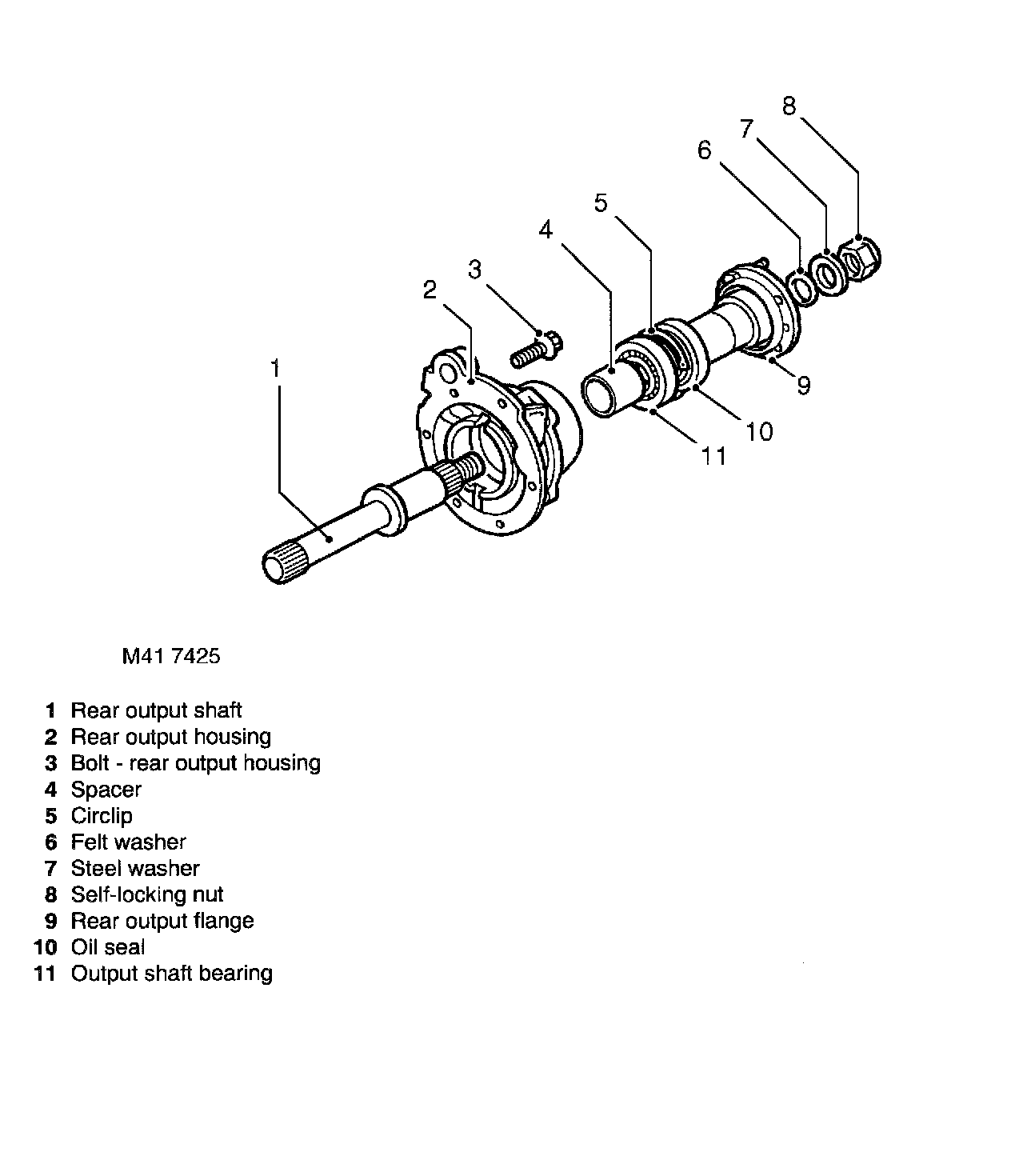

Rear output housing components
