Wiper Motor Linkage: Service and Repair

Motor and Linkage - Wiper - Windscreen

Service Repair No - 84.15.11

Remove
1. Remove plenum air intake.

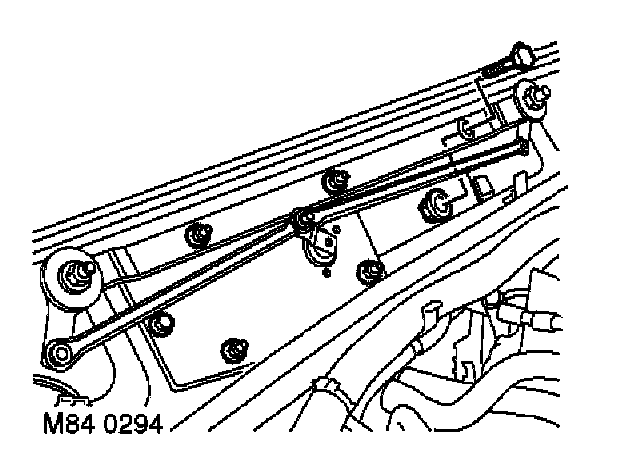

2. Remove 4 nuts and one bolt securing motor mounting plate to body.
3. Remove nut and bolt securing linkage to body.

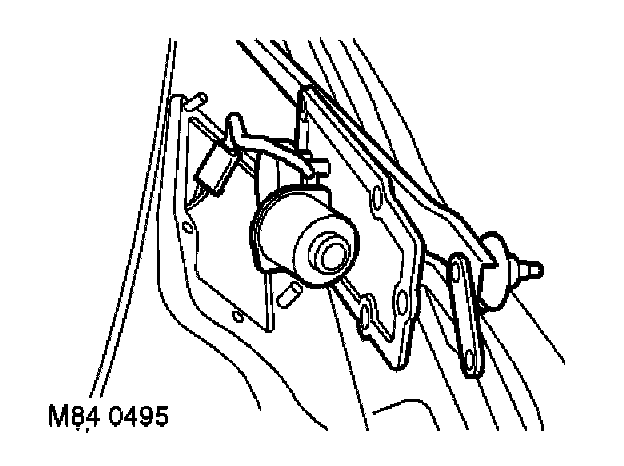

4. Release motor and linkage from body and disconnect multiplug from windscreen wiper motor.
5. Remove motor and linkage.





6. Remove nut securing linkage connecting rod to wiper motor spindle.
7. Release link from motor spindle.
8. Remove 3 bolts securing motor to mounting plate and remove motor.

Refit
1. Fit new wiper motor to mounting plate and secure with bolts.
2. Connect link to motor spindle and tighten nut to 7 Nm (5.2 ft. lbs.).
3. Fit motor and linkage to body, connect multiplug. Tighten all fixings to 2.5 Nm (1.8 ft. lbs.).
4. Fit plenum air intake.
