Antenna - Front Wheel - Tyre Pressure Monitoring (TPM) System

Antenna - Front Wheel - Tire Pressure Monitoring (TPM) System

Service repair No - 86.53.16

Remove
1. Remove front wheel arch liner.

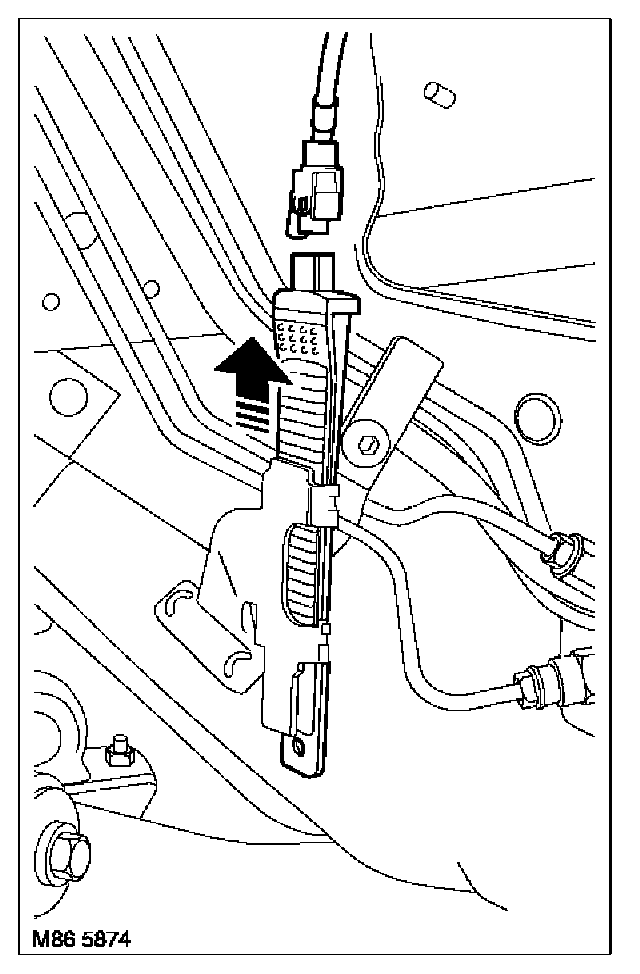

2. Disconnect multiplug and release antenna from securing bracket.

Refit
1. Fit antenna in securing bracket and connect multiplug.
2. Fit wheel arch liner.
