On-Road Navigation

On Road Navigation

GETTING STARTED

Selecting on-road navigation







If the menu is not displayed, press the MENU button (7). Turn the right rotary control (8), until "On-Road Navigation" is highlighted then press to start the navigation system.

Select 'Dest. input'.

Enter destination country
If the name of more than one country appears on the display in white letters, data for more than one country is stored on the map CD.

To select the destination country, if not already selected:
- Turn the right rotary control (8), until the country currently displayed is highlighted.
- Press the control (8) to call up a list of all available countries.
- Turn the control until the desired country is highlighted.
- Press the control again, to confirm your selection as the destination input.


NOTE: We will use United Kingdom as the example destination country.

Entering a destination place







If a destination shown is not required, turn the right rotary control (8) to select 'Delete destination' and press the control to delete it.


NOTE: We will use 81 Austin Place, Abingdon as the example destination address.

To select Abingdon as the destination town:







- Turn the right rotary control (8) to select 'City'.
- Press the control (8) to confirm selection.
- Turn the control until letter 'A' is highlighted.
- Press the control again to confirm your selection.
- Use this procedure to select the remaining letters of the destination ABINGDON until the name of the city is recognised beyond all doubt and displayed in full.


NOTE: Only those letters shown in white can be selected.


- Turn the right rotary control (8) and select "enter" to store the destination city, then press the control again.


NOTE: We will use 81 Austin Place, Abingdon as the example destination address.


Entering a street and house number







- Turn the right rotary control (8) to select 'Road'.
- Press the control (8) to confirm selection.
- Turn the control until 'A' is highlighted.
- Press the control again to confirm your selection.

In the same manner, select the remaining letters of 'AUSTIN PLACE' until the road is identified in full.







After entering the road you can enter a house number.
- Turn the control until 8' is highlighted.
- Press the control again to confirm your selection.

In the same manner, select all the remaining numerals making up the building or house number (in this case only the numeral '1').

- Turn the control until 'enter' is highlighted.
- Press the control again to complete the entry.

If the house or building number is not stored on the navigation CD, the nearest building number will be entered. No opportunity to enter numbers will be offered if no house numbers for the street are stored on the map CD. Destination guidance can be started straight away.

If you do not enter a street name, you will be guided to the boundary of the town, where navigation will end.

You can correct the last input by selecting "delete" and pressing the right rotary control (8). To cancel the whole entry, keep the control pressed for longer.


NAVIGATING TO YOUR DESTINATION

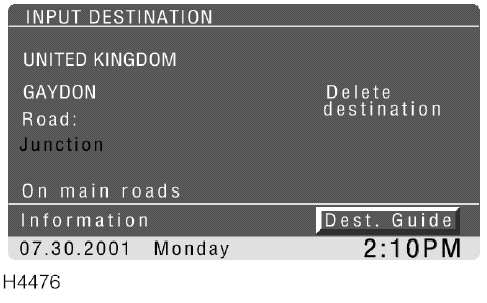

Starting destination guidance

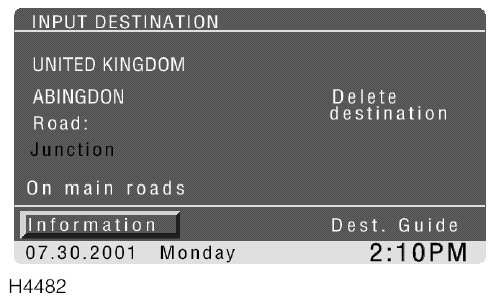

When you have entered the complete destination address, the town/city, road and house number are displayed and "Dest. Guide' is highlighted.

Press the right rotary control (8) to start destination guidance.

While the navigation computer is calculating a route to your destination, the distance and compass needle direction to the destination are displayed in the top right corner.

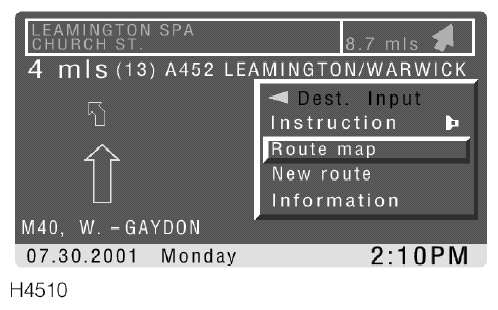

Once the route has been calculated, the name of the next road to be turned into and the distance to this junction is shown at the top of the display, below the destination address.

The direction to turn at the junction is shown by an arrow in the left of the display.

A change of direction is also indicated by spoken instruction.

Your current position is shown at the bottom left of the display.


NOTE: In areas which are not yet fully covered by the map CD, an arrow indicates the direction to be taken. This should help you decide which way to go when you reach a fork in the road or a junction.


To have the last direction instruction repeated:
Press, then turn the right rotary control (8), until 'Instruction' is highlighted. Press the control again.

A spoken instruction will be given and a visual display will appear before the next turning, informing you of any change of direction required.


NOTE: You will also be guided to your chosen destination if the 'MENU' button has been used to select a different function, e.g. radio, CD or on-board computer.


Returning to your starting point







- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Destination memory'.
- Press the control again to confirm your selection.
- Turn the control to select 'Return to starting point' and press to confirm. The address of the starting point is transferred to the destination guidance system.







STORING, RETRIEVING AND DELETING ADDRESSES
To make destination inputs quicker to perform, frequently used destinations can be stored in the 'Destination memory' and retrieved from there when you need navigation guidance to them.

Storing addresses
You can store over 50 addresses and transfer them directly from the address book as navigation destinations.
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Destination memory'.
- Press the control again to confirm your selection.
- Turn the control to select 'Enter address'.







- Press the control to confirm selection.
- Use the right rotary control to enter the data by overwriting the last entry information. When the full address has been entered, use "enter" to store it in the address book.

Storing current location
You can transfer the vehicle's current position to the memory and add a name provided that the vehicle is within an area stored on the map CD.
- Turn the right rotary control (8) to select 'Destination memory'
- Press the control (8) to confirm selection.
- Turn the control again to select 'Enter current car position'.







- Press the control again to confirm your selection.
- Turn the control to add a name if required.
- Press the control to confirm selection.
- Select 'Enter' to store it in the address book.

Retrieving addresses







- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Destination memory'.
- Press the control again to confirm your selection.
- Turn the control to select 'Retrieve address'.
- Press the control to confirm selection.
- Select the desired address - it will then be transferred to the destination guidance system.


Returning to a recently chosen destination
The last ten destinations entered are memorized.
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Destination memory'.
- Press the control again to confirm your selection.
- Turn the control to select 'Last destination'.







- Press the control to confirm selection.
- Select 'Retrieve address', select the desired address and press the right rotary control to transfer it to the destination guidance system.

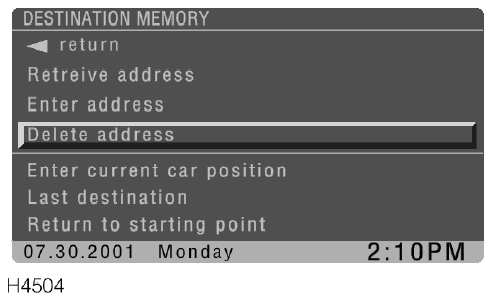

Deleting addresses
- Turn the right rotary control (8) to select 'Destination memory'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Delete address'.







- Press the control again to confirm your selection.
- Turn the control to select the desired address.
- Press the control to delete the address.

You can delete all addresses by selecting 'Delete address' and pressing the right rotary control (8) for at least one second.

To delete the ten stored destination addresses:
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Destination memory'.
- Press the control again to confirm your selection.
- Turn the control to select 'Last destinations'.
- Press the control to confirm selection.
- Turn the control again to select 'Delete address'.
- Press the control again to confirm your selection.
- Turn the control to select the desired address.
- Press the control to delete the address.

You can delete all addresses in the Last destinations' memory by selecting Delete address' and pressing the right rotary control (8) for at least one second.

If you do not know the exact place name or street name
Turn the right rotary control (8) to select 'Index' from the display before making an entry.


NOTE: You can select from names displayed in the index by first entering one or more letters of that name and then selecting the 'Index' function by pressing the right rotary control (8).


The index will display all the places on the map of a particular country and all the streets in a specified place.

If place names are identical, 'Index' will be marked automatically.







- Turn the right rotary control (8) to select 'Index'.
- Press the control (8) to display the index.
- Turn the control again until the desired place name is marked and press to confirm selection. The place name will then be transferred to the destination guidance system.

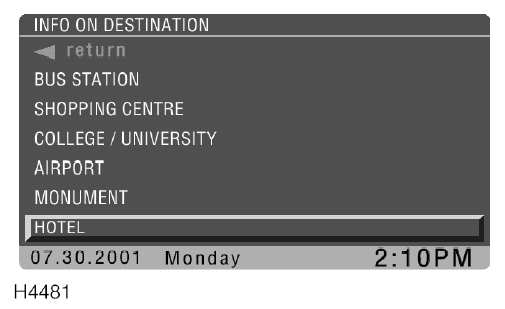

If you do not know the address or location of your destination
For instance, you may be looking for a hotel, restaurant, gas station, tourist attraction or a hospital. Enter the desired town, using the method described in 'Entering a destination place'.

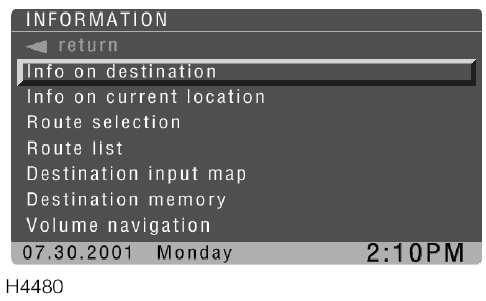

- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.







- Turn the right rotary control (8) to select 'Info on destination', various types of destination are listed.
- Press the control (8) to confirm selection.







- Turn the right rotary control (8) to select the desired type of destination e.g. Hotel'.
- Press the control (8) to confirm selection.

The following sub-menus may be available:*
- Turn the right rotary control (8) to select 'Index'.
- Press the control (8) to display the index.
- Turn the control again to choose one of the hotels from the alphabetical list and press to confirm selection. If you know the name of the hotel you want, you can restrict the number of names displayed by first entering one or more letters of that name before selecting 'Index'.

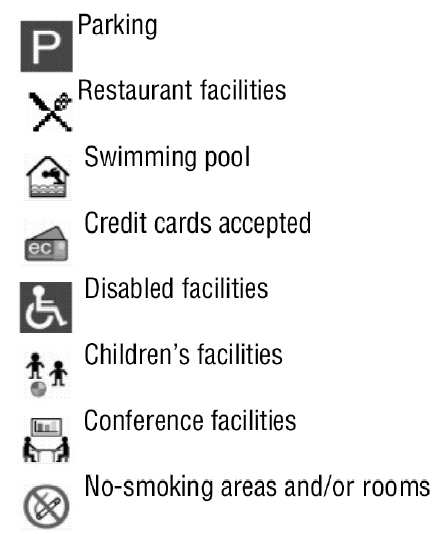

Information on hotels can be displayed either as text or using any one of the following symbols:







- Turn the right rotary control (8) to select the address.
- Press the control (8) to transfer this information to the guidance system.

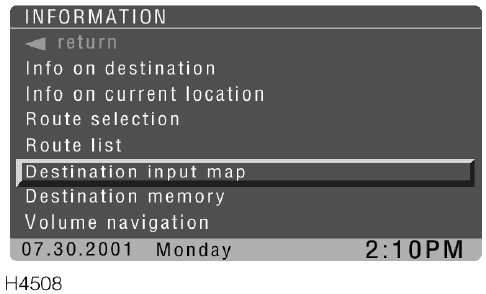

If you know the name of the town and the exact position of the street hut not its name







The system offers you maps on which you can identify your destination with cross-hairs, then transfer this information to the guidance system.
- Enter the place name, using the method described in Entering a destination place'.
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.







- Turn the control again to select 'Destination input map'.
- Press the control again to confirm your selection.

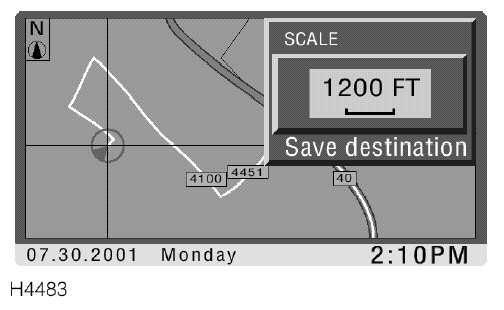

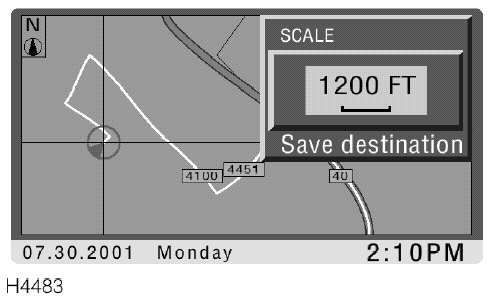

If necessary change the scale.







1. Turn the right rotary control (8) and select 'Scale'.
2. Press the control (8) to confirm selection.
3. Turn the control until the desired scale is seen.
4. Press the control to select this scale.

The visible section of the map changes after a few seconds.

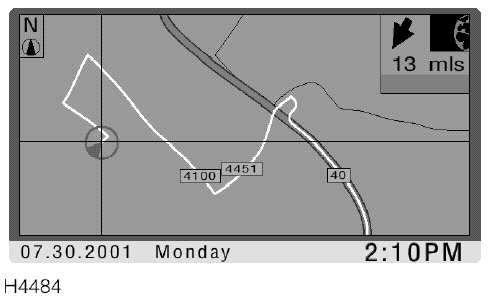

- Localise the destination with the cross-hairs:


NOTE: The map scrolls across the display (2) when the cross-hairs reach the edge.


1. Turn the right rotary control (8) to select 'Cursor'.
2. Press the control (8) to confirm selection.
3. Turn the control to choose the horizontal point of intersection.
4. Press the control to retain the selection.
5. Turn the control to choose the vertical point of intersection.
6. Press the control to retain this selection.

To transfer to the destination guidance system:
1. Turn the right rotary control (8) until 'Save destination' is highlighted.
2. Press the control to transfer the destination.

If the scale is greater than 1 mile, the function 'Save destination' cannot be selected.


NOTE:: You can also use the 'Destination Input map' function without specifying a place name. This allows you to select a destination with the cursor and then transfer this information to the guidance system.


Information on current location
The map CD currently inserted also contains various places of interest in the state and region in which you are travelling relative to your current location. These are summarised by category.

You can select a destination from one of the lists and transfer it to the destination quidance system.







- Turn the right rotary control (8) to select 'Information'.
- Press the control to confirm selection.







- Turn the control to select 'Info on current location'.
- Press the control to confirm selection.







- Turn the right rotary control (8) to select the destination category, e.g. 'GAS STATION'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Index' and choose an entry from the alphabetical list. You can restrict the number of names displayed in the directory by first entering one or more letters of that name before selecting the 'Index' function.
- Press the control again to confirm selection.
- Turn the control to select the address of the destination located in this way.
- Press the control to confirm selection and to transfer it to the destination guidance system

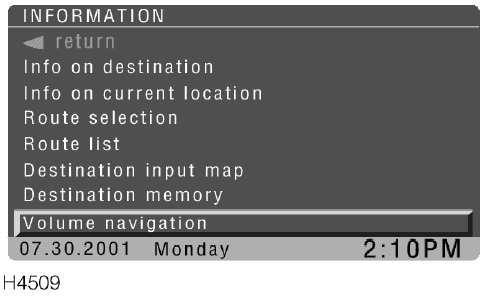

Varying the volume
You can raise or lower the volume of navigation instructions in relation to other audio sources.
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.







- Turn the control again to select 'Volume navigation'.
- Press the control again to confirm selection.







- Turn the control until the desired volume setting is obtained.
- Press the control to confirm / store this setting.

MAP SYMBOLS
Depending on the destination entered and the map scale selected, a variety of symbols for facilities of general interest appear in the map mode. Any or all of the following symbols may be displayed fora specific location selected:







ROUTE SELECTION

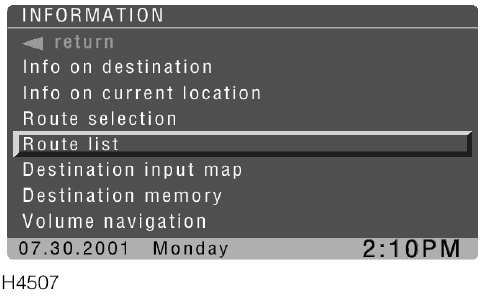

- Turn the right rotary control (8) to select 'Information'.
- Press the Control (8) to confirm selection.


Selecting a route type
You can change the type of route both when selecting a destination and as often as desired while destination guidance is in operation - the system will always adapt to your wishes.
- Turn the right rotary control (8) to select 'Route selection'.
- Press the control (8) to confirm selection.







- Turn the control to select the preferred type of route.
1. Fast roads
Highways and main roads are given priority.
2. Minor roads
Highways are avoided as far as possible
3. Fastest route
This is a combination of the fastest and shortest routes.
4. Shortest route
The most direct route, irrespective of how fast or slow progress will be
- Press the control to confirm selection.


TERMINATING DESTINATION GUIDANCE







All the functions for inputting new destinations will over-write the currently displayed destination with the new one. When the control is pushed to transfer the new destination to the guidance system. However, should you wish to discontinue guidance completely, you can delete the current destination.

From the 'Input Destination' screen, turn the control to select Delete destination' then press the control to confirm.

The destination will be deleted and all guidance will cease.

DISPLAYING A ROUTE
Route map
During destination guidance, the system can display a map showing the planned route.
- Turn the right rotary control (8) to select 'Route map'.







- Press the control (8) to confirm selection.
The route map is automatically shown if destination guidance takes you into a region which has not yet been fully digitised on the inserted map CD.

Changing the map scale
- Turn the right rotary control (8) to select 'Scale'.
- Press the control (8) to confirm selection.







- Turn the control again to select the desired scale.
- Press the control again to confirm / store this setting.

The visible section of the map changes after a few seconds.

Changing the display direction
If the scale is smaller than 1 mile, you can choose whether to align the map with North at the top, or according to the direction of your chosen route.
- Turn the right rotary control (8) to select 'Map positioning'.
- Press the control (8) to confirm selection.
- Turn the control again to select the desired direction.
- Press the control again to confirm selection.

Displaying the route list.
You can call up a list of places and streets during destination guidance. The list is based on the route proposed by the navigation system.
The length of the individual streets or roads is also indicated.
To display the route list during destination guidance:
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.







- Turn the control again to select 'Route list'.
- Press the control again to confirm selection.
- Turn the control to select the desired route list.
- Press the control to confirm selection.


AVOIDING ROAD CONGESTION
You can, during destination guidance, deviate from planned sections of the route. You indicate the distance in miles after which you wish to return to the original route.







- Turn the right rotary control (8) to select 'New route'.
- Press the control (8) to confirm selection.
- Turn the control again to select the desired distance.
- Press the control again to confirm selection.

The system will return you automatically to the original route at the next opportunity, after the selected deviation distance.

VEHICLE POSITION
You can call-up the present location of your vehicle or display a road map showing your position.






Vehicle position display
To call-up the vehicle's current position:
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Vehicle position'.
- Press the control again to confirm selection. The current location is shown on the left of the screen.
- If the map is required, turn to 'Street map' and press to select.
Your current location is shown on a map of the area.

Road map
This function can also be useful if you have not input a destination. It enables you to monitor the route you have taken so far.

From any current display:
- 'Information'.
- 'Vehicle position'.
- 'Street map'.

If the scale is less than one mile, you can choose whether to align the map with North at the top, or according to the direction of your chosen route.

Entering the vehicle position
Correcting the vehicle's current location is only recommended in exceptional circumstances. After a journey where the vehicle is not being driven but is being transported, for example, a ferry or motor rail journey, the GPS receiver requires a few minutes to find your new location. This search period can be shortened by entering the vehicle's current location.

To enter the vehicle's current location:
- Turn the right rotary control (8) to select 'Information'.
- Press the control (8) to confirm selection.
- Turn the control again to select 'Vehicle position.
- Press the control again to confirm selection.
- Enter the address of the vehicle's current position in the same way that you enter a destination, see 'Entering a destination place'.
