Head Unit - Multi-Information Display

Head Unit - Multi-information Display

Service repair No - 86.50.81

Remove
1. Remove top rail finisher.







2. Remove 6 Torx screws securing display housing to carrier.







3. Release housing and harness from carrier, disconnect multiplug and aerial.

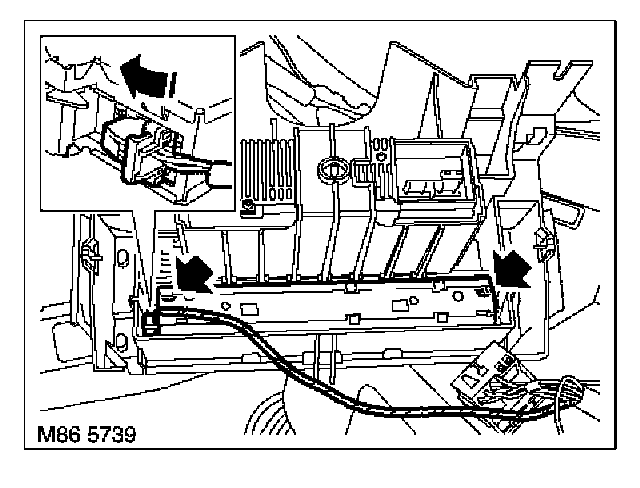

4. From rear of housing release clips securing display unit.
5. Disconnect multiplug from display unit and remove unit.


Refit
1. Connect multiplug and fit display unit to housing.
2. Position housing to carrier connect multiplug aerial and secure harness.
3. Fit and tighten screws securing housing to carrier.
4. Fit top rail finisher.
