Front Fender: Service and Repair

76.10.24 Wing - Front

Remove

1. Secure bonnet in service position.
2. Remove front wing grille.
3. Remove front indicator lamp assembly.







4. Mark fitted position of front wing relative to body.

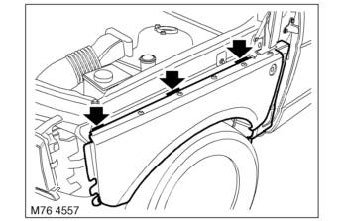

5. Remove 8 bolts securing front wing panel to inner wing and 'A' post.

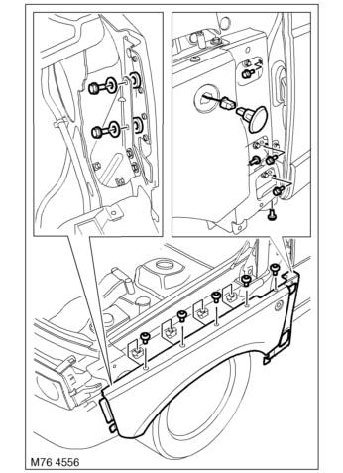

6. Collect 2 nylon spacers from the front vertical mountings.
7. Remove side repeater lamp from front wing.
8. Remove and discard 5 Torx bolts securing front wing panel to inner wing mounting brackets.
9. Remove front wing panel.

Refit

1. Clean front wing body mounting brackets.
2. Position front wing to body, fit and finger tighten new Torx bolts.
3. Position front wing nylon spacers to vertical mounting bracket, fit and finger tighten bolts.
4. Fit and lightly tighten remaining bolts.
5. Align front wing to marks and tighten all bolts to 10 Nm (7 lbf.ft).
6. Fit front wing grille.
7. Fit front indicator lamp assembly.
8. Fit side repeater lamp to front wing.
9. Secure bonnet struts.
