Grille: Service and Repair

76.55.03 Front Grille

Remove

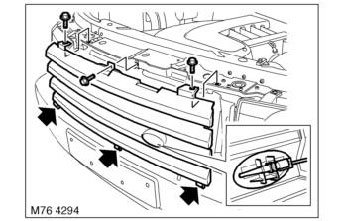

1. Remove 3 screws securing grille to bonnet locking platform.
2. Release 3 clips securing grille to armature.
3. Disconnect multiplug from ambient air temperature (AAT) sensor.
4. Remove grille.

NOTE: Do not carry out further dismantling if component is removed for access only.

5. Release and remove AAT sensor from grille.

Refit

1. Fit AAT sensor to grille.
2. Connect multiplug.
3. Fit grille and secure with screws.
