Mirror Glass - Exterior - Up to 05 Model Year

76.11.08 Mirror Glass - Exterior - Up To 05 Model Year

Remove

1. Using fingers, gently press lower edge of mirror glass inboard to maximum rotation.

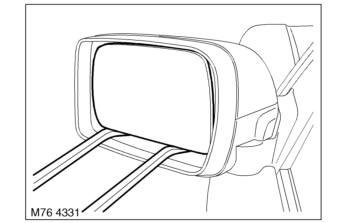

2. Position 2 levers to lower edge of mirror glass surround, apply vertical leverage.

WARNING: Wear suitable eye protection when removing and refitting glass.

3. Continue to apply an even but constant pressure, until glass releases from mounting.







4. Disconnect 2 Lucar connections from Mirror glass and remove.

Refit

1. Connect Lucars to mirror glass.
2. Position mirror glass to mounting, align 4 location pins to motor and secure clips.
3. Check operation of mirror.
