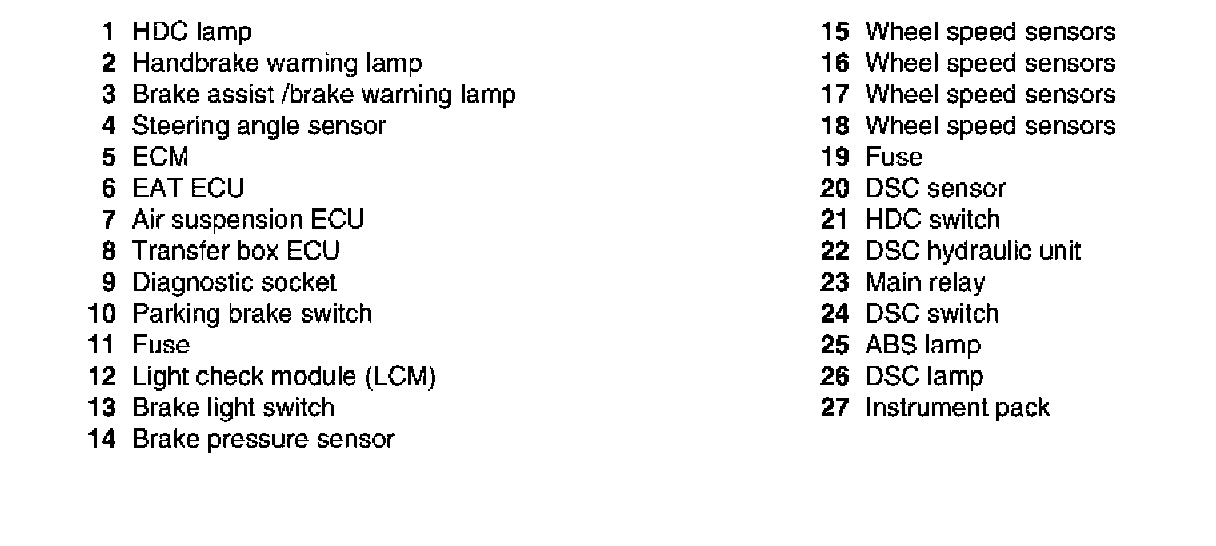

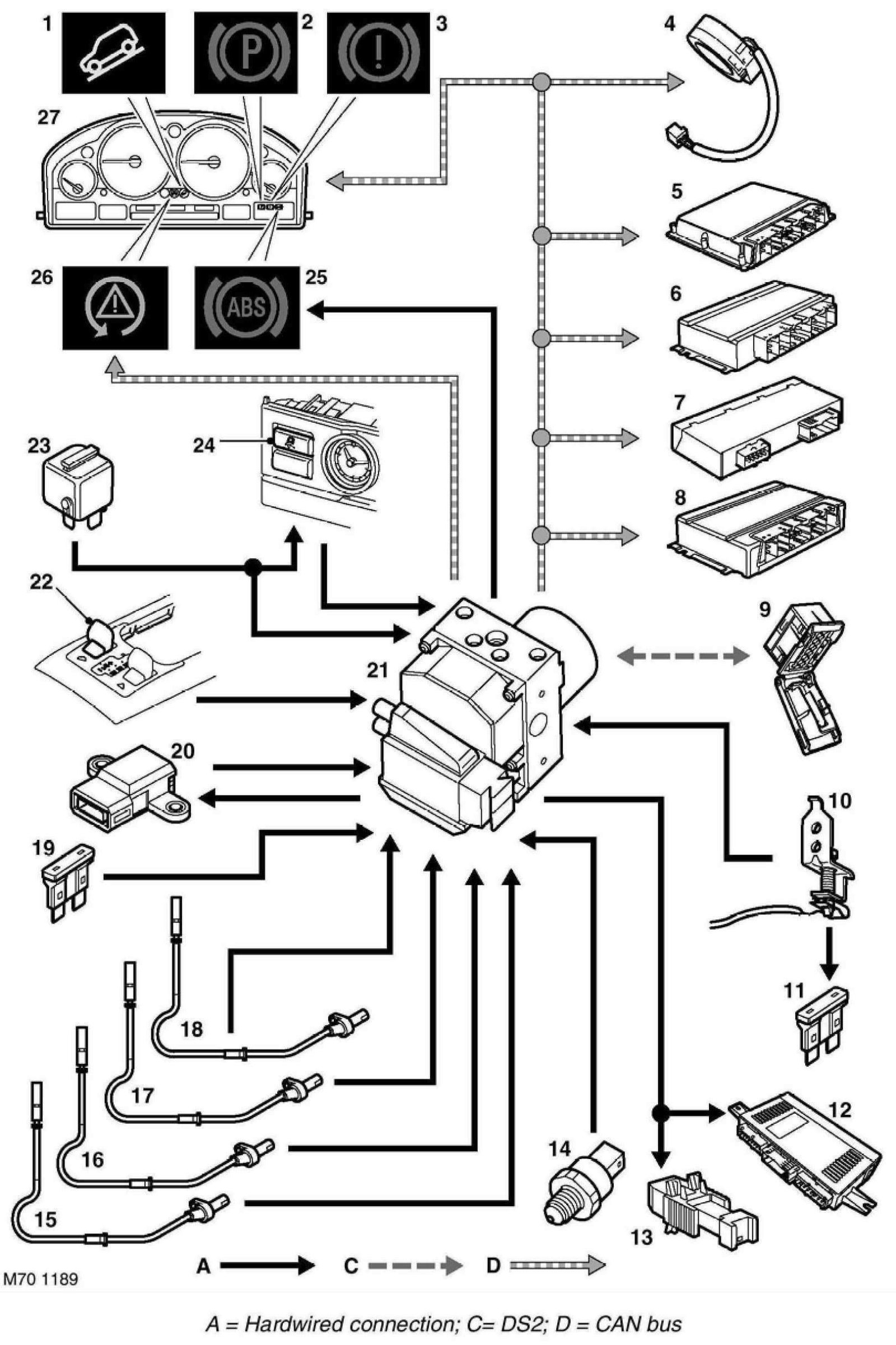

Dynamic Stability Control System Control Diagram

Part 1 Of 2:

Dynamic Stability Control System Control Diagram

Dynamic Stability Control
Introduction
The New Range Rover is equipped with Dynamic Stability Control (DSC) for enhanced braking and stability control.
Functions of the DSC include:
^ Hill Decent Control (HDC)
^ Electronic Traction Control (ETC)
^ ABS
^ Providing Corner Braking Control (CBC)
^ Providing Emergency Brake Assist (EBA)
^ Providing Electronic Brake Force Distribution (EBD)
