Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>

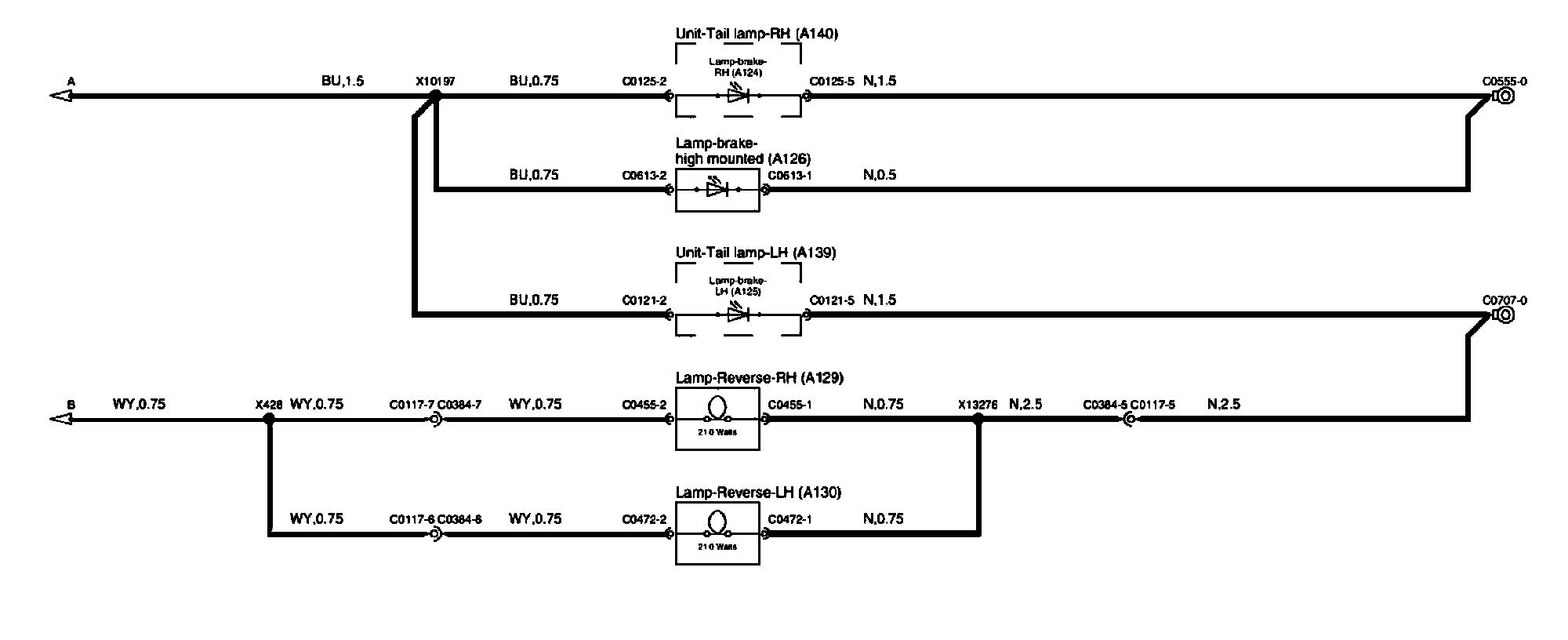

Backup Lamp
Backup Lamp
Brake and Reverse Lamps
