Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Control
Control

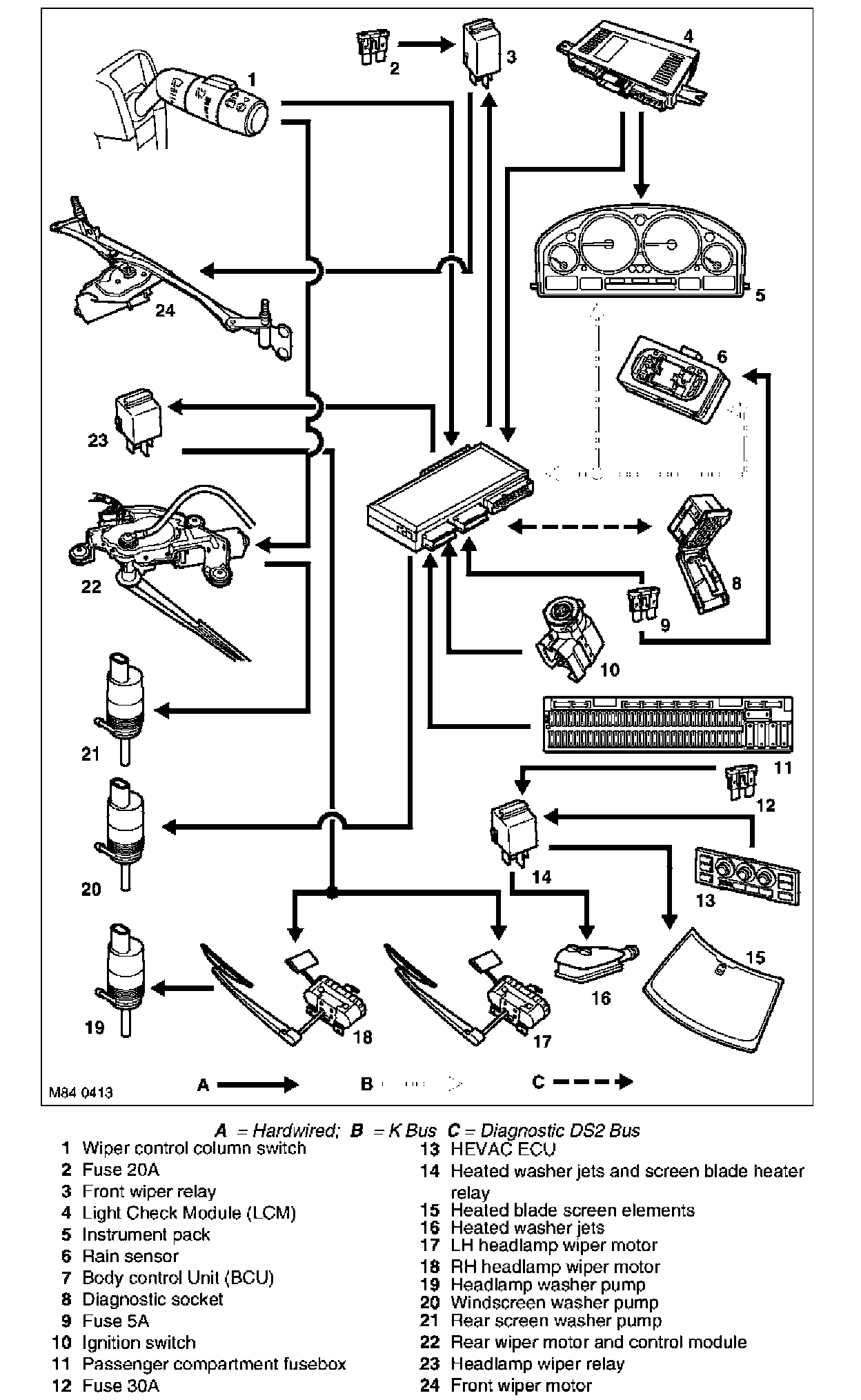

Control Diagram
