Home >> Land Rover >> 2004 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust System >> Exhaust Manifold

Exhaust Manifold

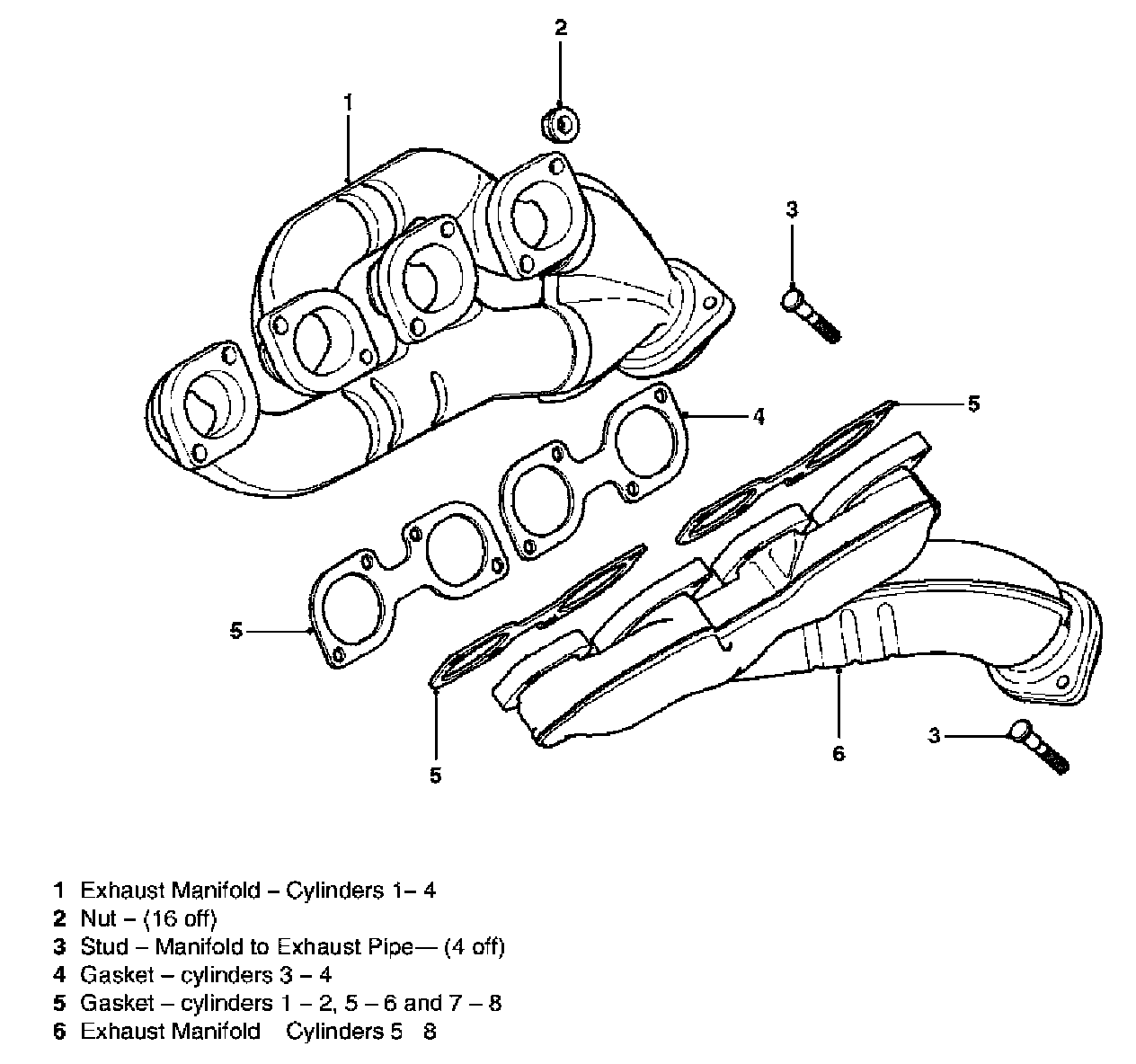

Exhaust Manifold Component Layout
