Cylinder Head Assembly: Specifications

Cylinder Head LH





Torque 30 Nm (22 ft. lbs.).

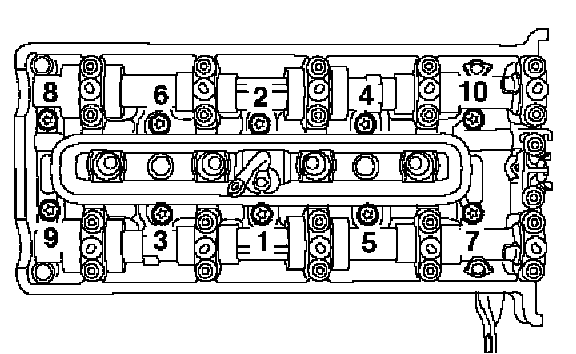

Using an angle torque gauge tighten all bolts in sequence by a further 80° and then a final 80°.

Cylinder Head RH





Torque 30 Nm (22 ft. lbs.).

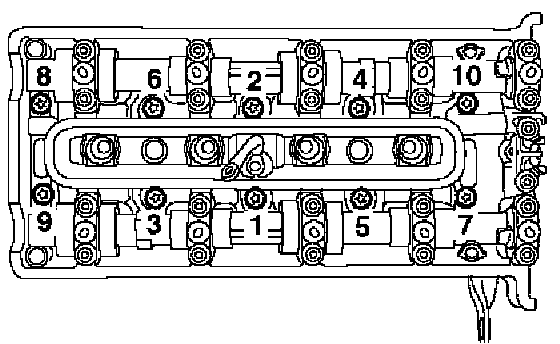

Using an angle torque gauge tighten all bolts in sequence by a further 80° and then a final 80°.

Exhaust Manifold RH
Torque 23 Nm (17 ft. lbs.)

Exhaust Manifold LH
Torque 23 Nm (17 ft. lbs.)
