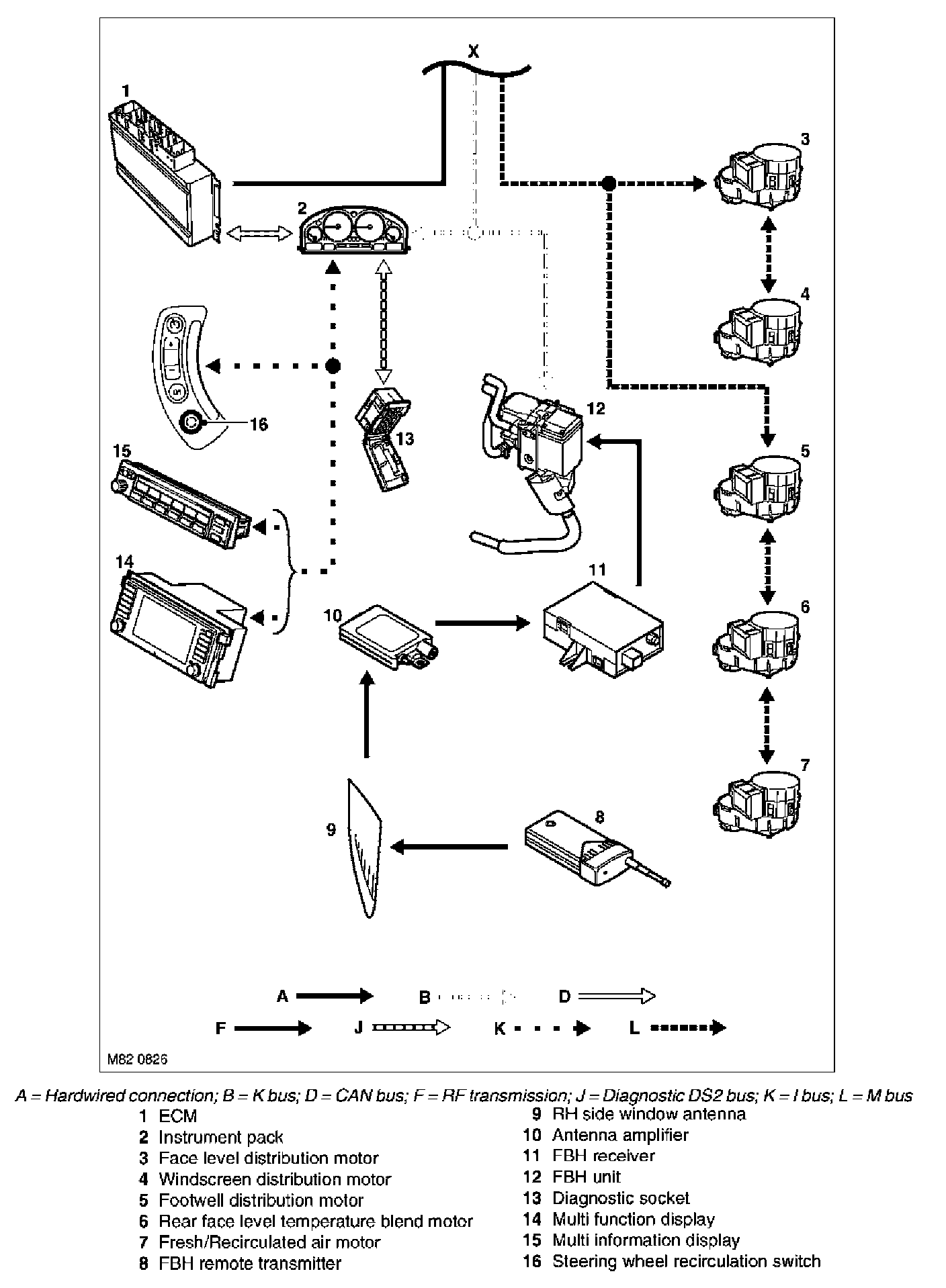

A/C Control Diagram- High Line System, Sheet 2 of 2
A/C Control Diagram- High Line System, Sheet 2 of 2
A/C Control Diagram- High Line System, Sheet 2 Of 2
