Filter - Fresh Air Intake

Filter- Fresh Air Intake


Service repair No - 80.15.42

Remove

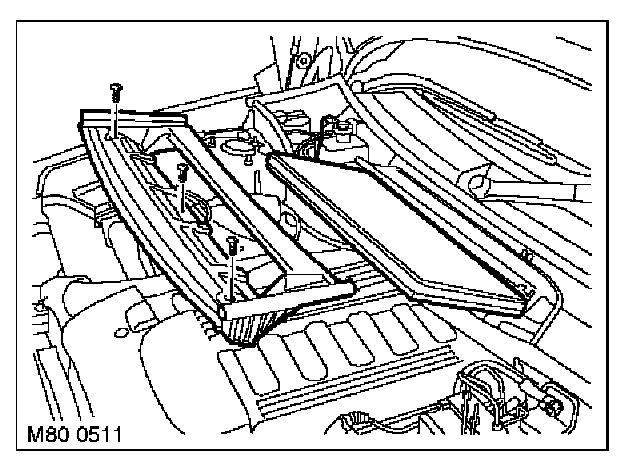

1. Remove 3 screws and remove plenum intake cover.
2. Lift flap and remove filter.

Refit
1. Clean plenum intake.
2. Fit new filter.
3. Fit cover and secure with screws.
