Motor - Temperature Control - RH

Motor - Temperature Control - RH

Service repair No - 80.10.42

Remove
1. Remove heating control assembly.

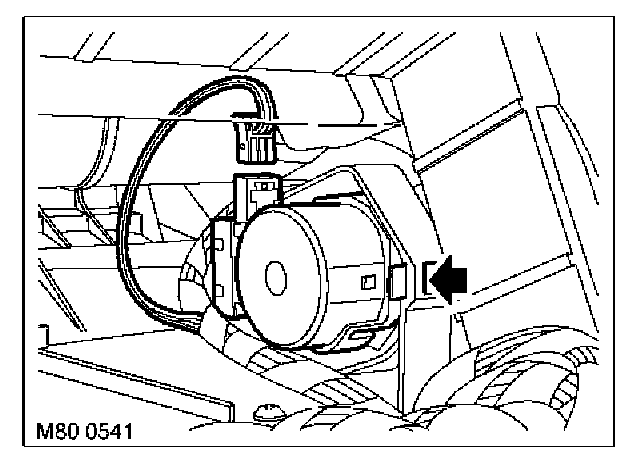

2. Disconnect multiplug from motor, remove motor from heating assembly.

Refit
1. Fit motor to heating assembly, connect multiplug.
2. Fit heating control assembly.
