Tensioner - Compressor Drive Belt - V8

Tensioner - Compressor Drive Belt - V8

Service repair No - 82.10.05

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove undertray.

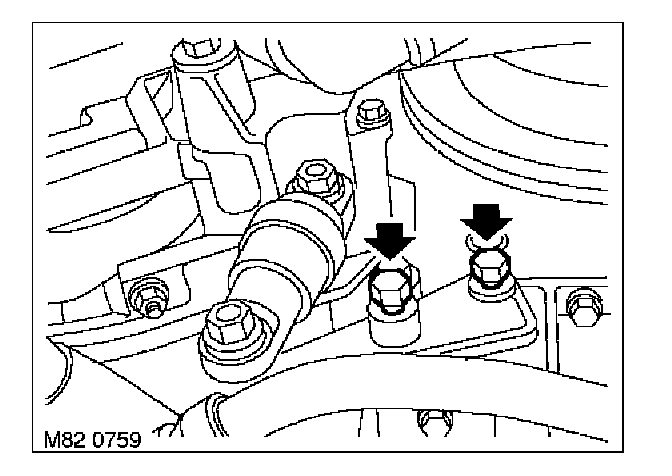

4. Loosen 2 compressor drive belt tensioner securing bolts.







5. Remove 2 bolts securing compressor drive belt tensioner and remove tensioner.

Refit
1. Position compressor drive belt tensioner, fit 2 bolts and tighten to 25 Nm (18 lbf.ft).
2. Rotate tensioner to fully tension compressor drive belt.


NOTE: Make sure compressor drive belt is fully seated in pulley grooves.


3. Tighten 2 bolts securing compressor drive belt tensioner to 25 Nm (18 lbf.ft).
4. Fit undertray.
5. Conned battery earth lead.
