Closing Panel - Passenger Side

76.46.27 Closing Panel - Passenger Side

Remove

1. Remove closing panel from passenger side of the centre console.

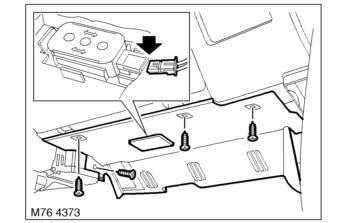

2. Remove 4 screws securing closing panel.
3. Disconnect multiplug from closing panel lamp assembly.
4. Remove passenger side footwell closing panel.
5. Release lamp assembly from closing panel.

Refit

1. Fit lamp assembly to closing panel.
2. Connect multiplug to closing panel lamp assembly.
3. Fit closing panel and secure with screws.
4. Fit centre console closing panel.
