Finisher - Lower - Passengers Side

76.46.14 Finisher - Lower - Passengers Side

Remove

1. Remove fascia end closing panel.
2. Remove RH lower 'A' post finisher.
3. Remove passenger side footwell closing panel.







4. If fitted: Release and remove venture cam.

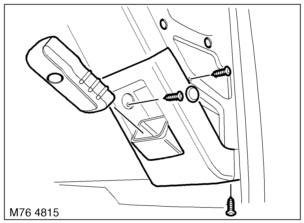

5. Remove cover from lower finisher for access to Torx screw.
6. Remove 3 Torx screws securing upper finisher to fascia.







7. If fitted: Disconnect venture cam multiplug and cable.
8. Remove finisher.
9. Remove clips from finisher.

Refit

1. Fit clips to finisher.
2. If fitted: Connect venture cam multiplug and cable.
3. Fit finisher to fascia and secure with screws.
4. Fit blanking plug to finisher.
5. If fitted: Fit and secure venture cam.
6. Fit passenger side footwell closing panel.
7. Fit lower 'A' post finisher.
8. Fit fascia end closing panel.
