Shroud - Lower - Fascia

76.46.05 Shroud - Lower - Fascia

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove

1. Remove rotary coupler.
2. Remove glove box.
3. Remove centre air vent.
4. Remove drivers side upper trim finisher.
5. Remove drivers side lower trim finisher.

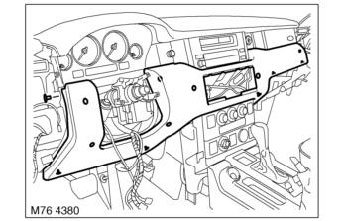

6. Remove 6 Torx screws securing lower fascia shroud.
7. Carefully release 7 clips securing shroud to carrier assembly. Remove shroud.

NOTE: Do not carry out further dismantling if component is removed for access only.

8. Remove 7 trim fasteners from shroud.
9. Remove 4 retaining clips from shroud.

Refit

1. Fit clips to shroud.
2. Fit fasteners to shroud.
3. Position shroud to carrier, fit and secure with clips and screws.
4. Fit drivers side lower trim finisher.
5. Fit drivers side upper trim finisher.
6. Fit centre air vent.
7. Fit glove box.
8. Fit rotary coupler.
