Land Rover
>>
2004
>>
Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Description and Operation
>>

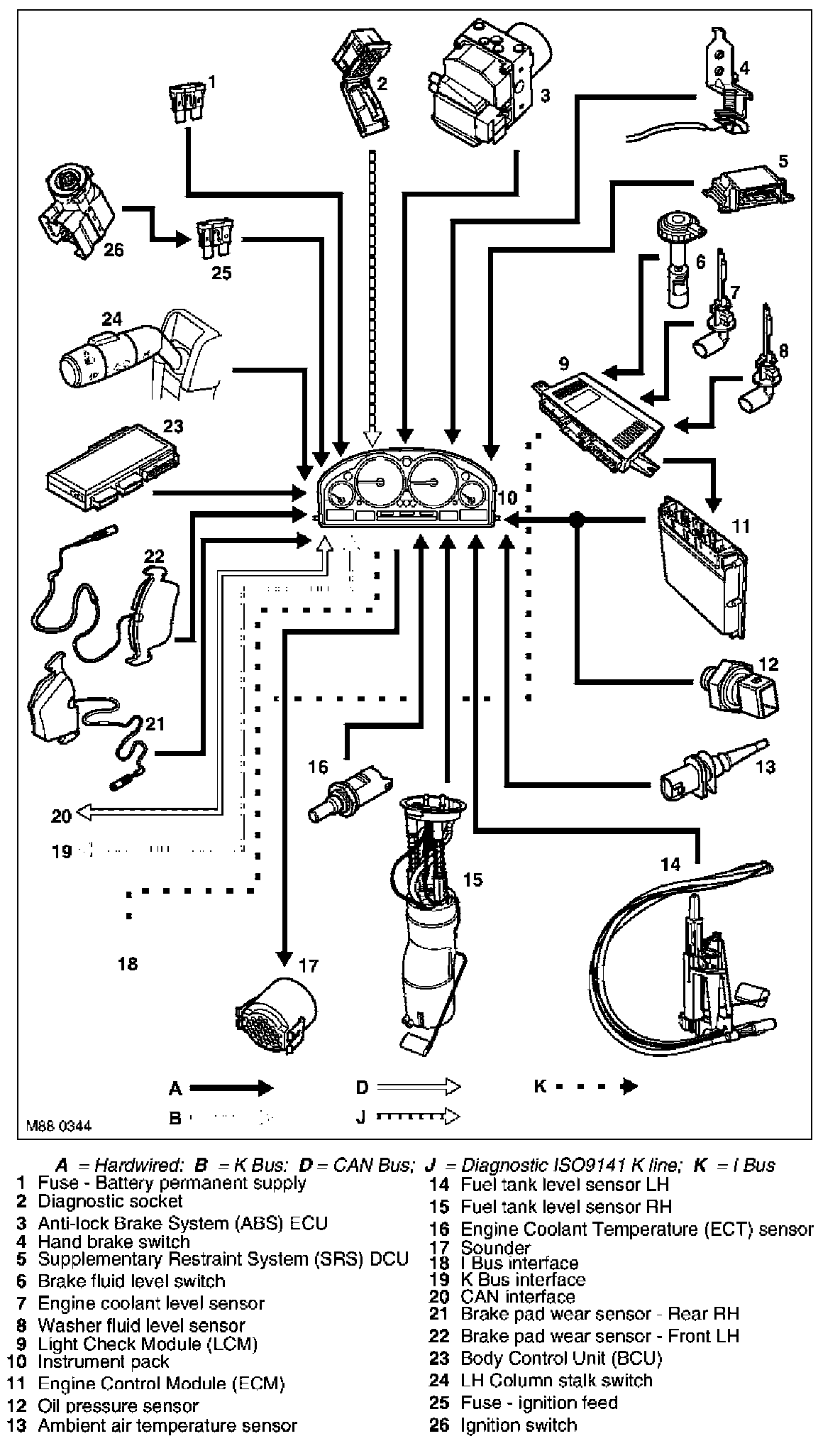

Instrument Pack - Control Diagram
Instrument Pack - Control Diagram
Instrument Pack - Control Diagram
