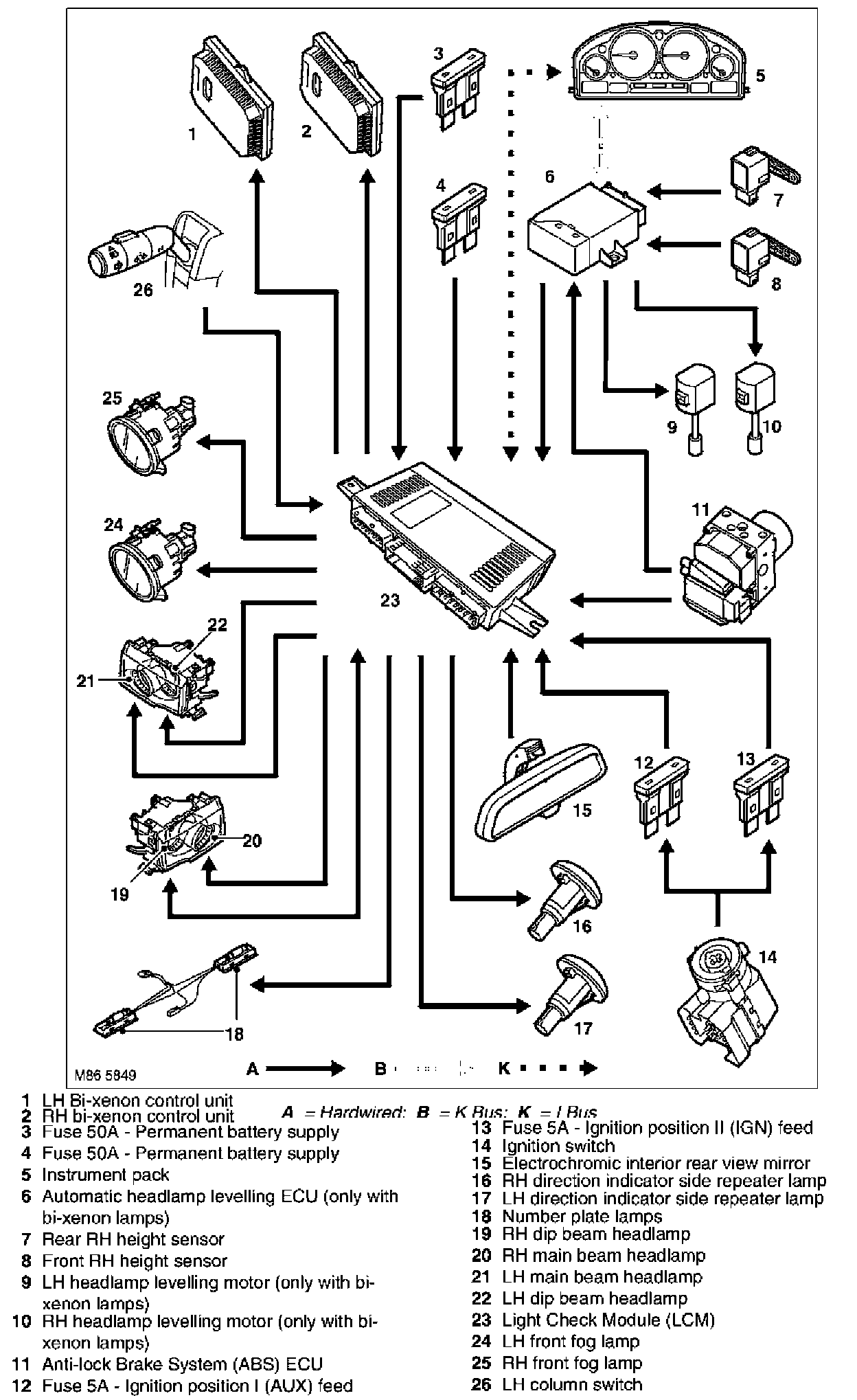

Exterior Lighting Control Diagram - Sheet 1
Exterior Lighting Control Diagram - Sheet 1
Exterior Lighting Control Diagram - Sheet 1
