Land Rover
>>
2004
>>
Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>

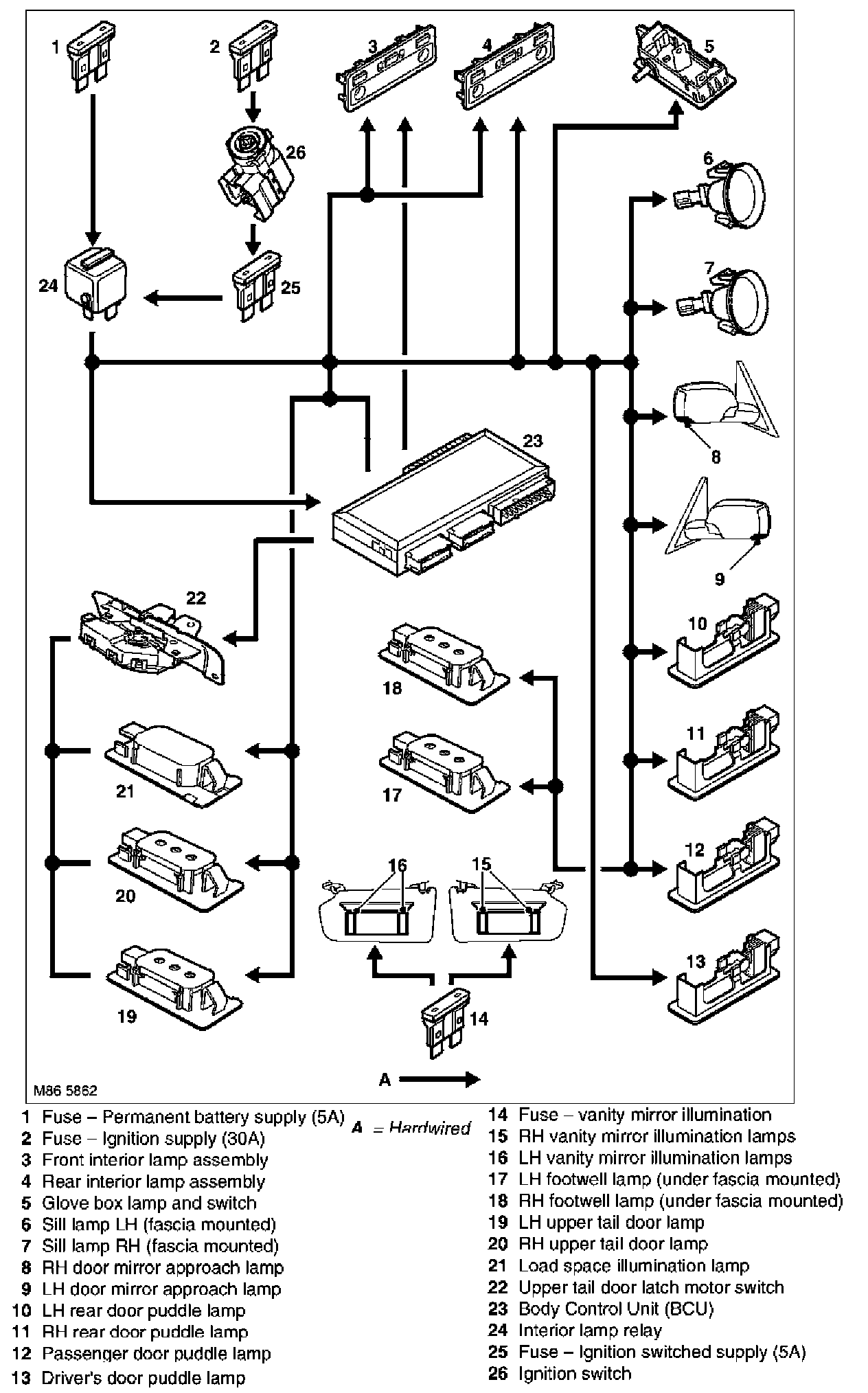

Interior Lighting Control Diagram
Interior Lighting Control Diagram
Interior Lighting Control Diagram
