Headlamp: Adjustments

Headlamps - Align Beam

Service repair No - 86.40.17

Check
1. Ensure vehicle is at standard ride height.
2. Position and align beam setting equipment to headlamp.
3. Switch on headlamps Headlamp setting 12% below horizontal and parallel.


Adjust

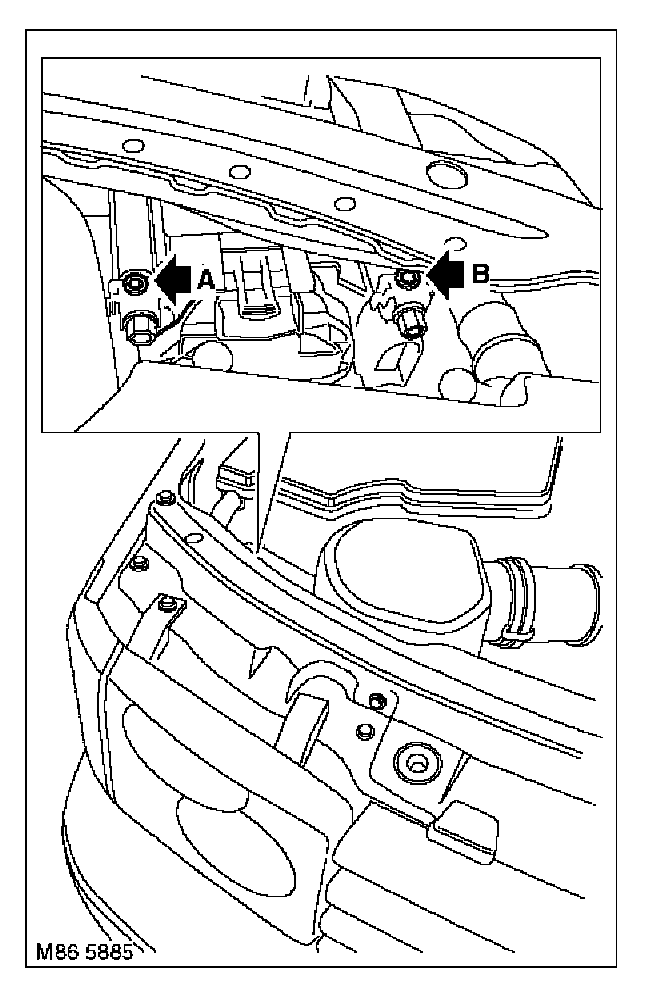

1. Adjust headlamp using a 6 mm Allen key.







2. Turn Allen screw 'A' for vertical alignment.
3. Turn Allen screw 'B' for horizontal alignment.
4. Align beam setting equipment to 2nd headlamp.
5. Adjust 2nd headlamp as detailed above.
6. Switch off headlamps and remove beam setting equipment.
