Control Unit - Gas Discharge - Xenon Headlamps

Control Unit - Gas Discharge - Xenon Headlamps

Service repair No - 86.40.03

Remove
1. Remove headlamp assembly.

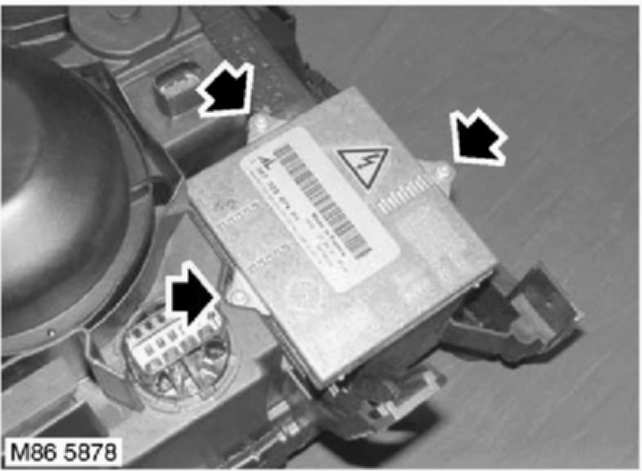

2. Remove 3 Torx screws securing the gas discharge control unit to head lamp assembly.
3. Disconnect multiplug from headlamp and remove gas discharge control unit.

Refit
1. Clean headlamp area around the gas discharge control unit multiplug.
2. Fit the gas discharge control unit to headlamp and secure with Torx screws.
3. Fit headlamp assembly.
