Headlamp Assembly

Headlamp Assembly


Service repair No - 86.40.55

Remove
1. RH Headlamp on V8 models:Remove air cleaner assembly.
2. Remove side and indicator lamp.
3. Protect bumper from damage.


CAUTION: Always protect paintwork when removing or refitting any body trims or bumpers.


4. Remove headlight wiper arm.

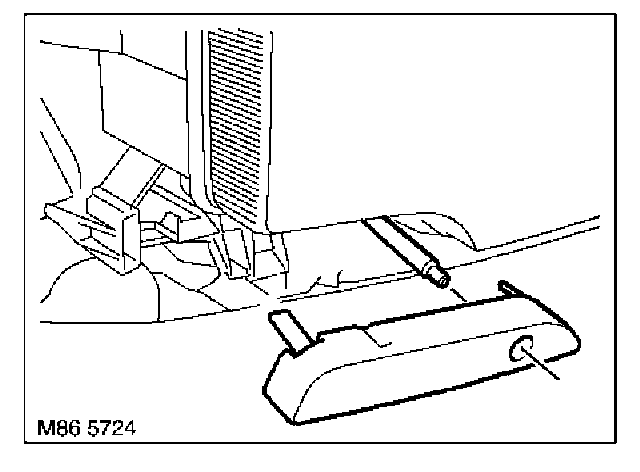

5. Remove headlight wiper spindle escutcheon.
6. Remove front grille.

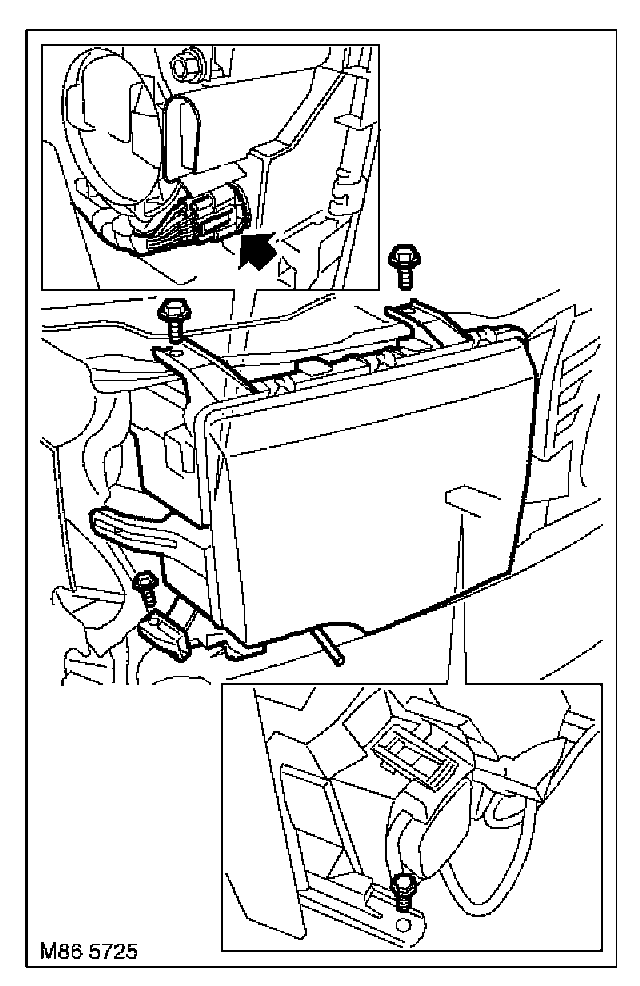

7. Remove 4 bolts securing headlamp.


WARNING: Vehicles fitted with Xenon headlamps, the following precautions must be observed. Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or risk of explosion.


8. Slide headlamp forward disconnect multiplug and remove headlamp.


WARNING: When changing Xenon headlamp bulbs the following precautions must be observed. Eye and hand protection must be worn. Never switch on lamps or test bulbs with the lamp holder detached from headlamp.

Refit
1. Position headlamp and connect multiplug.
2. Fit headlamp onto lower mountings, fit and tighten bolts to 6 Nm (4.4 lbf.ft).
3. Fit front grille.
4. Fit headlight wiper spindle escutcheon.
5. Fit headlight wiper arm.
6. Fit side and indicator lamp.
7. Check headlamp alignment - adjust if necessary.
8. RH Headlamp on V8 models:Fit air cleaner assembly.
