Headlamp Wiper Motor: Service and Repair

Motor - Wiper - Headlamp

Service repair No - 84.25.12

Remove

1. Remove front bumper assembly.
2. Remove headlamp assembly.







3. Disconnect multiplug and hose from headlamp wiper motor.
4. Release harness from front panel.

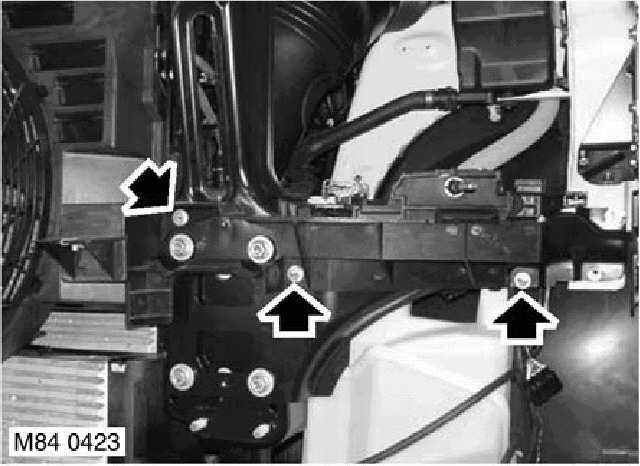

5. Remove 3 bolts securing bumper support bracket and remove bracket.







6. Remove 2 bolts securing wiper motor retaining bracket remove bracket and motor assembly.
7. Remove 2 screws and release wiper motor from bracket.

Refit
1. Position wiper motor to bracket and secure with screws.
2. Fit motor assembly, fit and tighten bolts to 10 Nm (7 lbf.ft).
3. Fit bumper support bracket, fit and tighten bolts to 10 Nm (7 lbf.ft).
4. Secure harness to front panel connect multiplug and hose to motor.
5. Fit headlamp assembly.
6. Fit front bumper assembly.
