P0461 - Fuel Level Sensor ''A'' Circuit Range/Performance.

DTC Description
P0461 P0461 - Fuel Level Sensor 'A' Circuit Range/Performance.: Implausible signal/condition

Possible Causes:
1. Open Circuit C0114/2 (GB) - C0230/21 (GB).
2. Short Circuit C0230/21 (GB) - Battery.
3. Short Circuit C0230/21 (GB) - Ground.
4. Open Circuit C0114/1 (B) - Ground.
5. Fuel Level Sensor (in fuel tank).
6. Connectors C0114, C0047, C0223, C0230.
7. CAN Bus error.
8. Instrument Pack.
9. MS43 ECM.

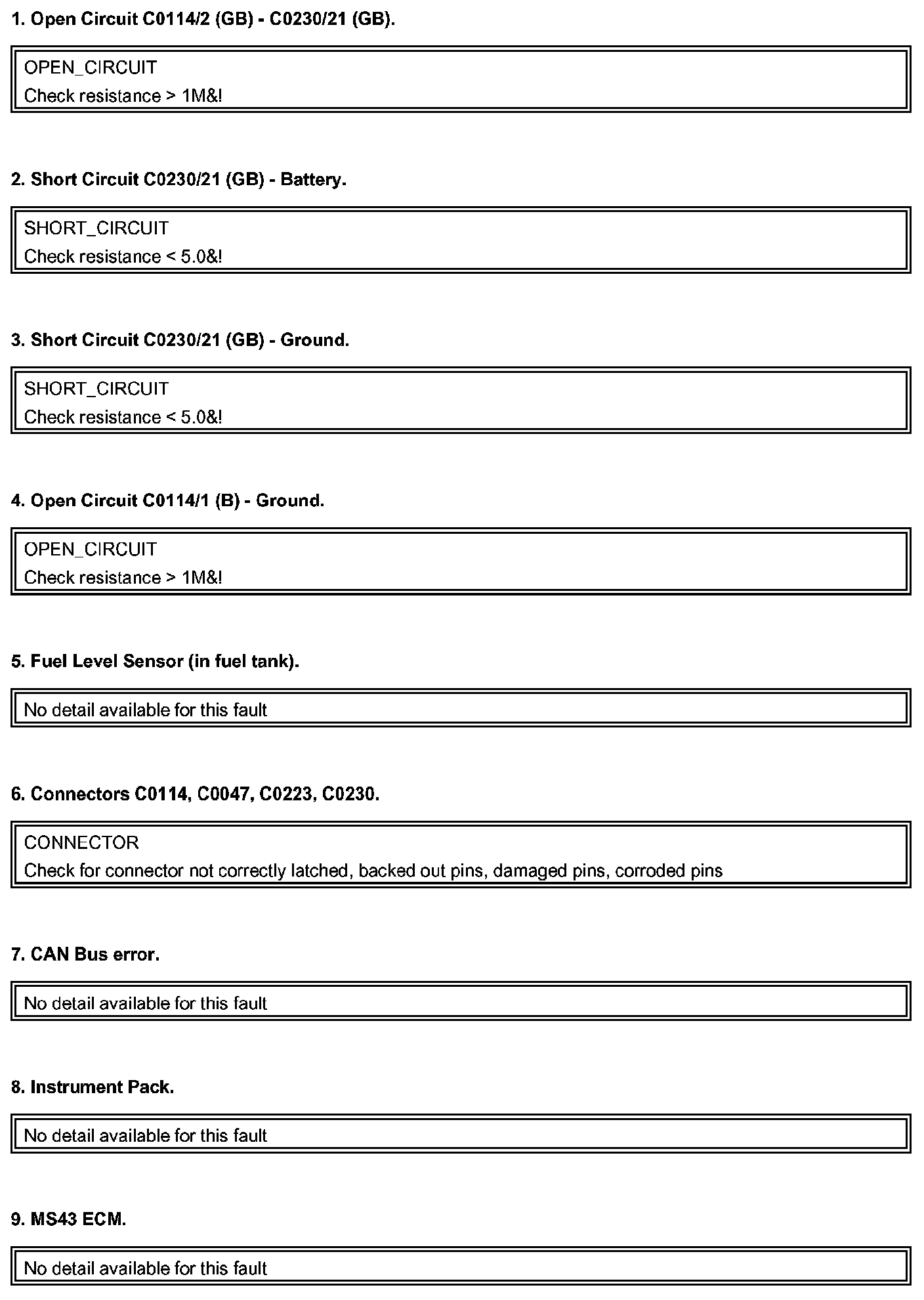

Step 1-9:
